10-14 Additional Components Rexroth EcoDrive Cs Drives
DOK-ECODR3-DKC**.3-CS*-PR02-EN-P
Mounting
• If present, unscrew screw of ground connection:
TX
RX
S20
2
1
ON
X4
X5
X6
9
8
7
6
5
4
3
2
1
9
8
7
6
5
4
3
2
1
ADDRESS
NODE
00
Rexroth
ECODRIVE
Cs
S1
H1
S2
S3
LINE ERROR
X20
X21
X4
X5_3 X5_2 X5_1
INPUTíF200V-240V
X3 X2 X1
X6
geberadapter_erdungsschraube.fh7
1
1: Screw of ground connection

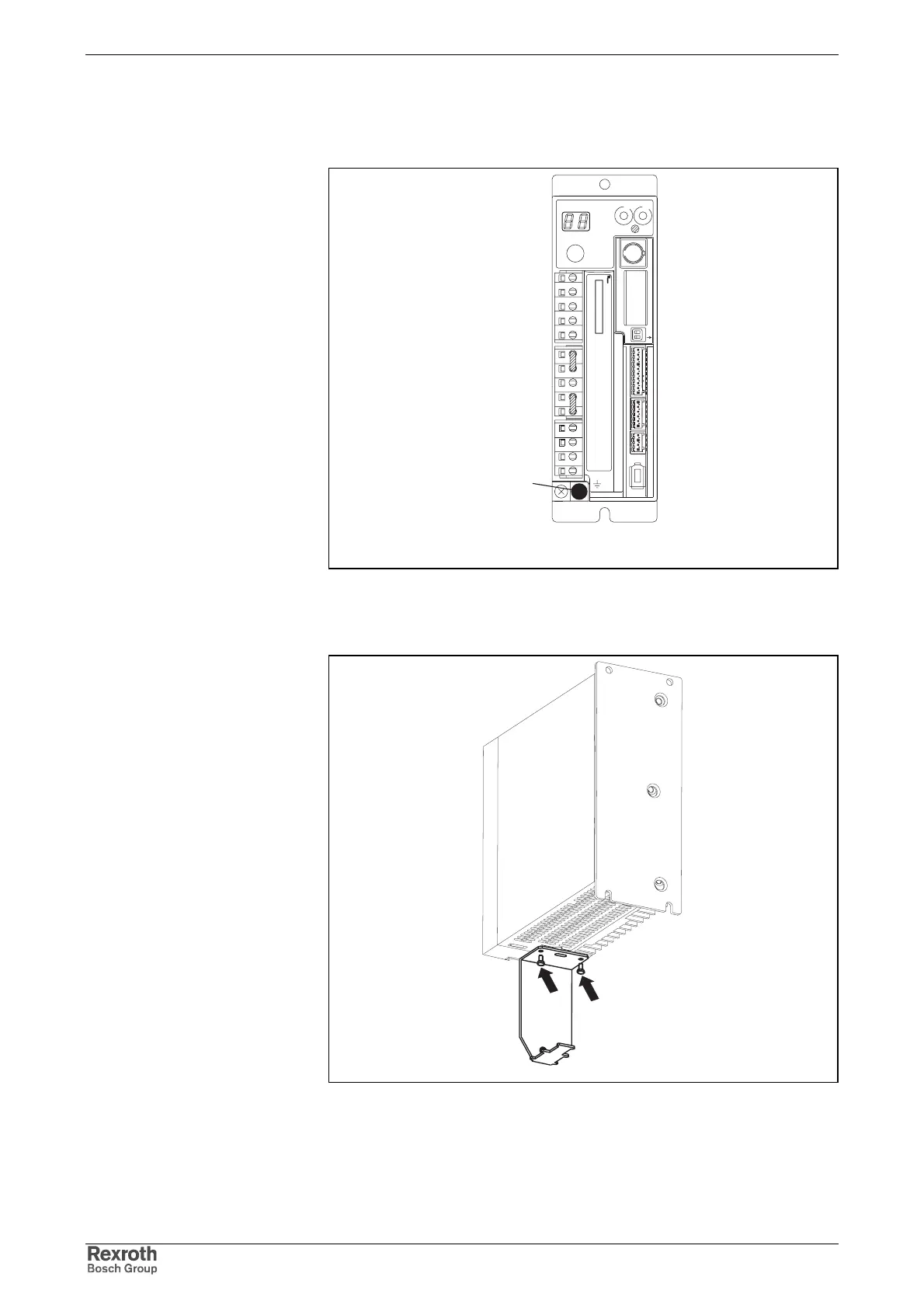

Fig. 10-15: Screw of ground connection
• Screw angle plate to the bottom of drive controller:
geberadapter_winkel.fh7
Fig. 10-16: Angle plate
