REXROTH EcoDrive Cs - Page 189

Rexroth EcoDrive Cs Drives Additional Components 10-15
DOK-ECODR3-DKC**.3-CS*-PR02-EN-P
• Plug encoder adapter on interface X4 of drive controller:
geberadapter_am_geraet.fh7

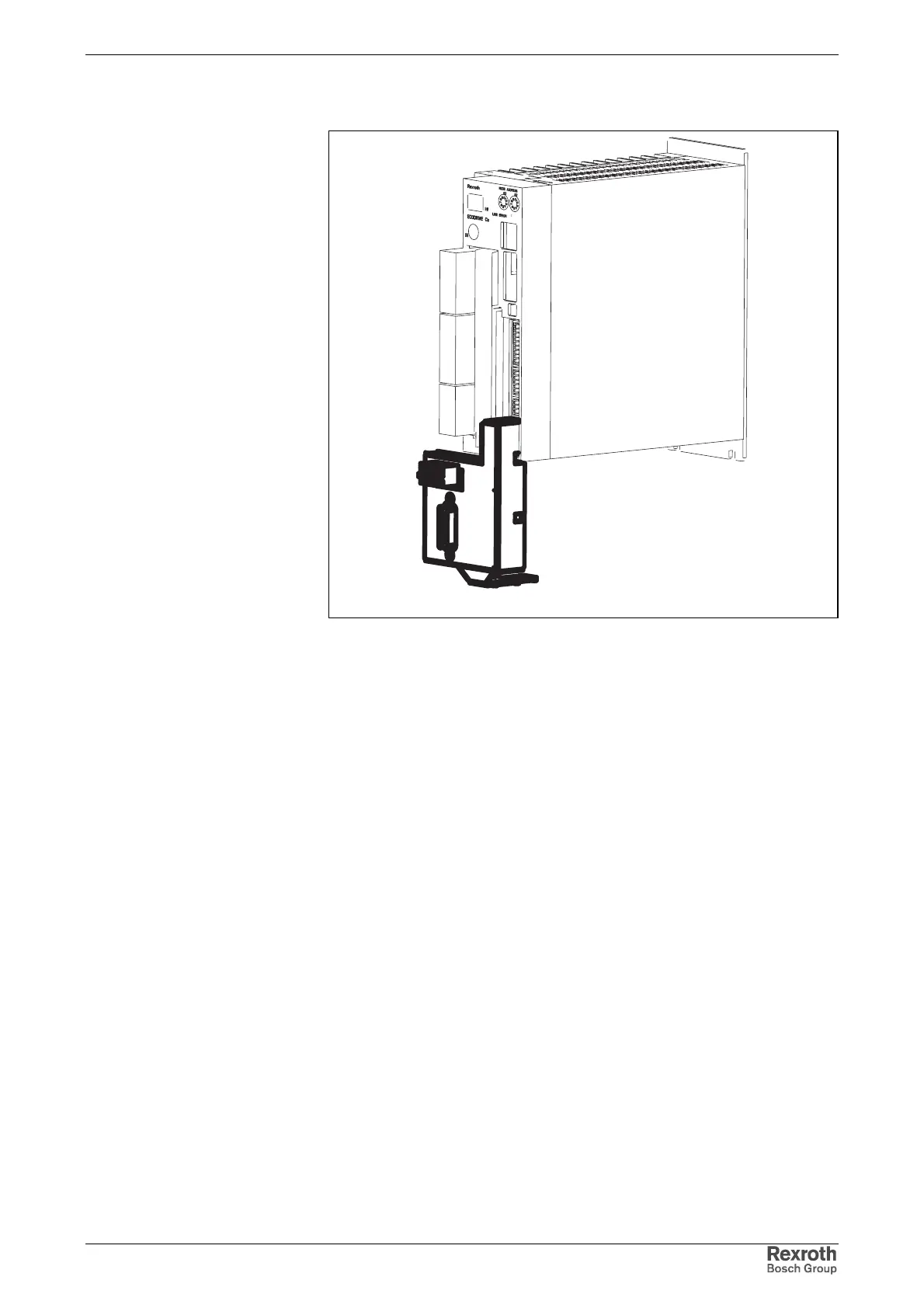

Fig. 10-17: Encoder adapter on interface X4
