& Finishers
(B803/B805/
D373/D374/
D636/D637)

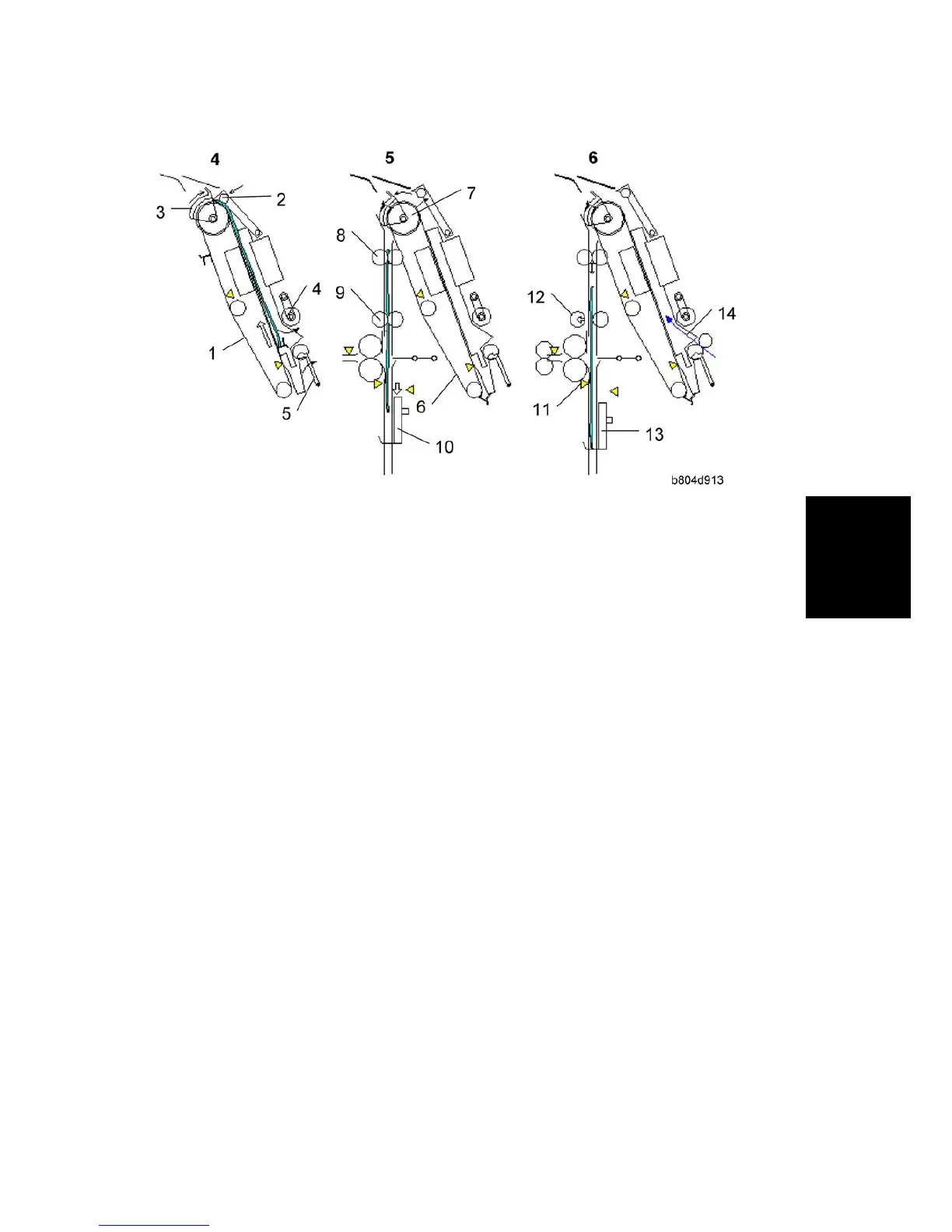

4:
The jogger fences remain 1 mm away from the sides of the stack. The feed out belt [1] raises the
stack until the top of the stack is 10 mm past the leading edge pressure roller [2] and stops. The
leading edge pressure roller descends and applies pressure to the top of the stack. The stack
junction gate [3] (normally open) closes. The pressure roller [4] and pressure plate [5] retract.
5:
The feed out belt [6], transport rollers [7], [8], and clamp rollers [9] rotate and feed the stack past
the closed stack junction, over the top and down toward the bottom fence [10]. At the same time,
the fold unit bottom fence descends from its home position and stops 10 mm below the fold
position.
6:
The rollers feed the leading edge of the stack to within 3 mm of the stack stopper of the bottom
fence [13]. The fold unit entrance sensor [11] detects the stack and opens the clamp rollers [12].
The stack drops 3 mm onto the fold unit bottom fence [13]. At this time, the first sheet [14] of the
next stack feeds to the stapling tray.
