Booklet Stapling (B804 Only)
B803/B805/D373/D374/D636/D637 58 SM
7:

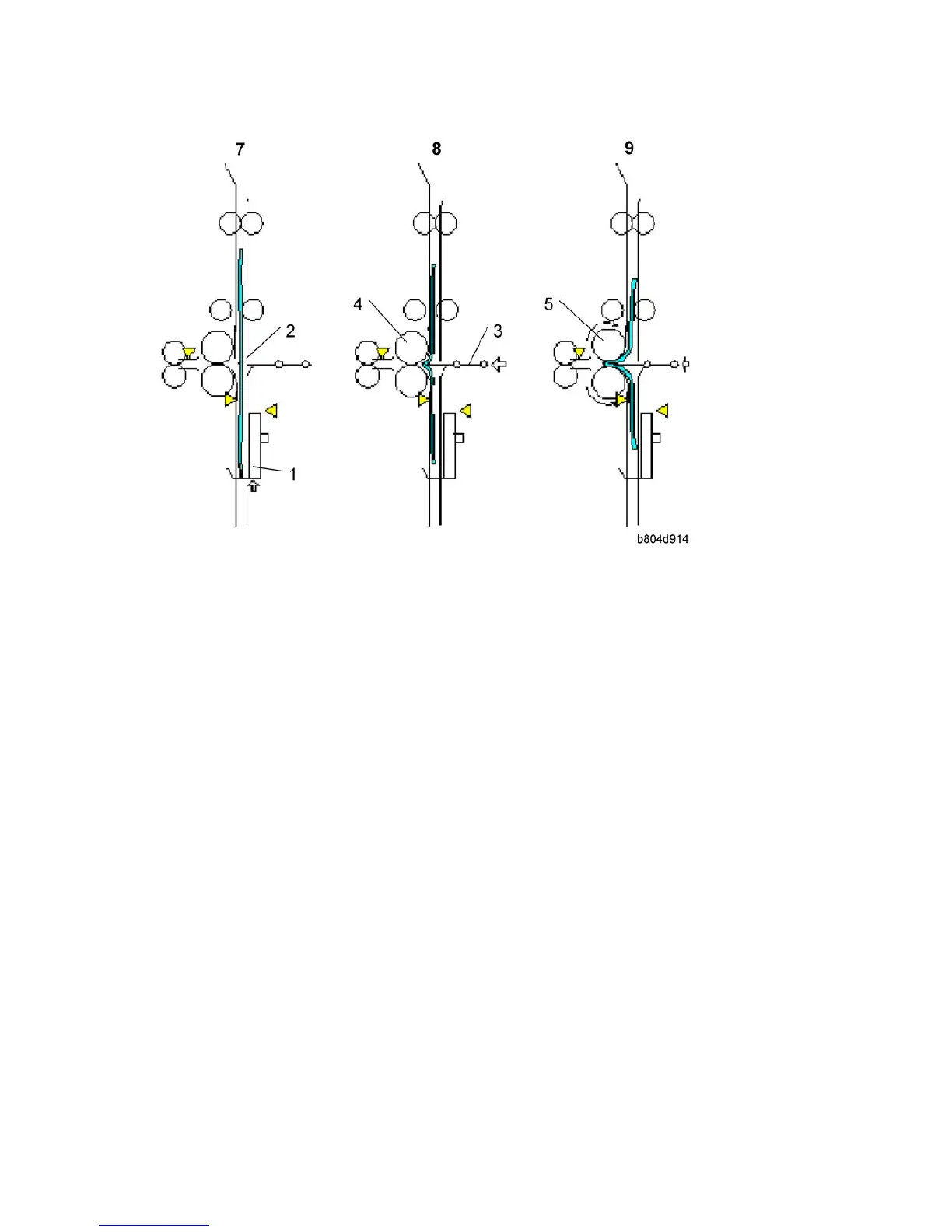

The bottom fence [1] raises the stack to the prescribed fold position [2].
8:
The fold plate [3] moves to the left and advances 1/3 its maximum horizontal stroke and exerts 20
kg (44 lb.) of pressure at the fold rollers [4].
9:
With the fold plate pushing the stack into nip of the fold rollers [5], the fold rollers begin to rotate
and fold the stack as it feeds out.
