Ricoh M160 - Drive Unit

Drive Unit
SM 4-23 M160/M161
Replacement
and Adjustment
4.8 DRIVE UNIT
 Turn off the main power switch and disconnect the power cord before you start any of the
procedures in this section.

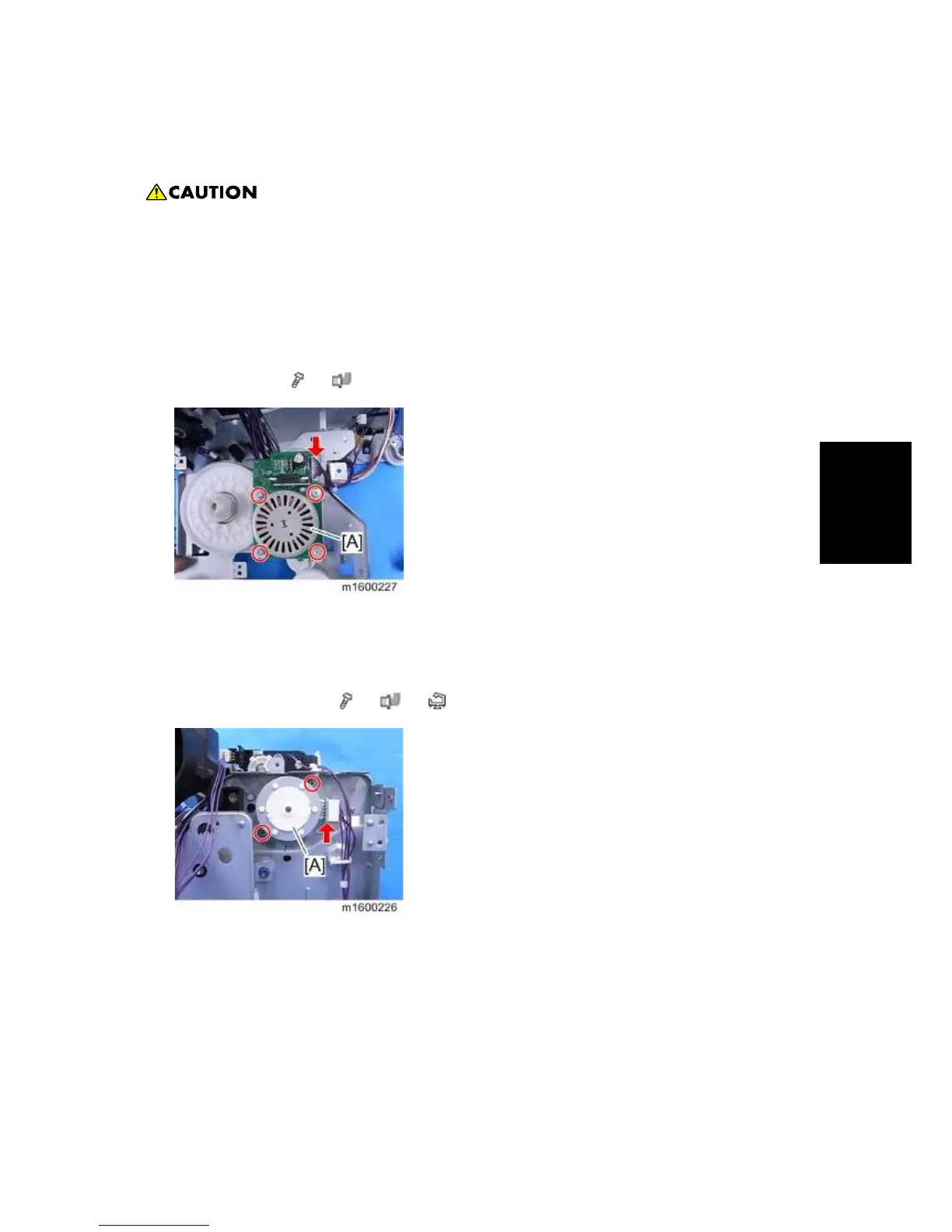

4.8.1 MAIN MOTOR
1. Right Cover (page 4-8 "Right Cover")
2. Drive Unit (page 4-26 "Drive Unit")
3. Main Motor [A] (
x4, x1)
4.8.2 DUPLEX EXIT MOTOR
1. Upper Cover (page 4-10 "Upper Cover")
2. Duplex Exit Motor [A] ( x2, x1, x1)
