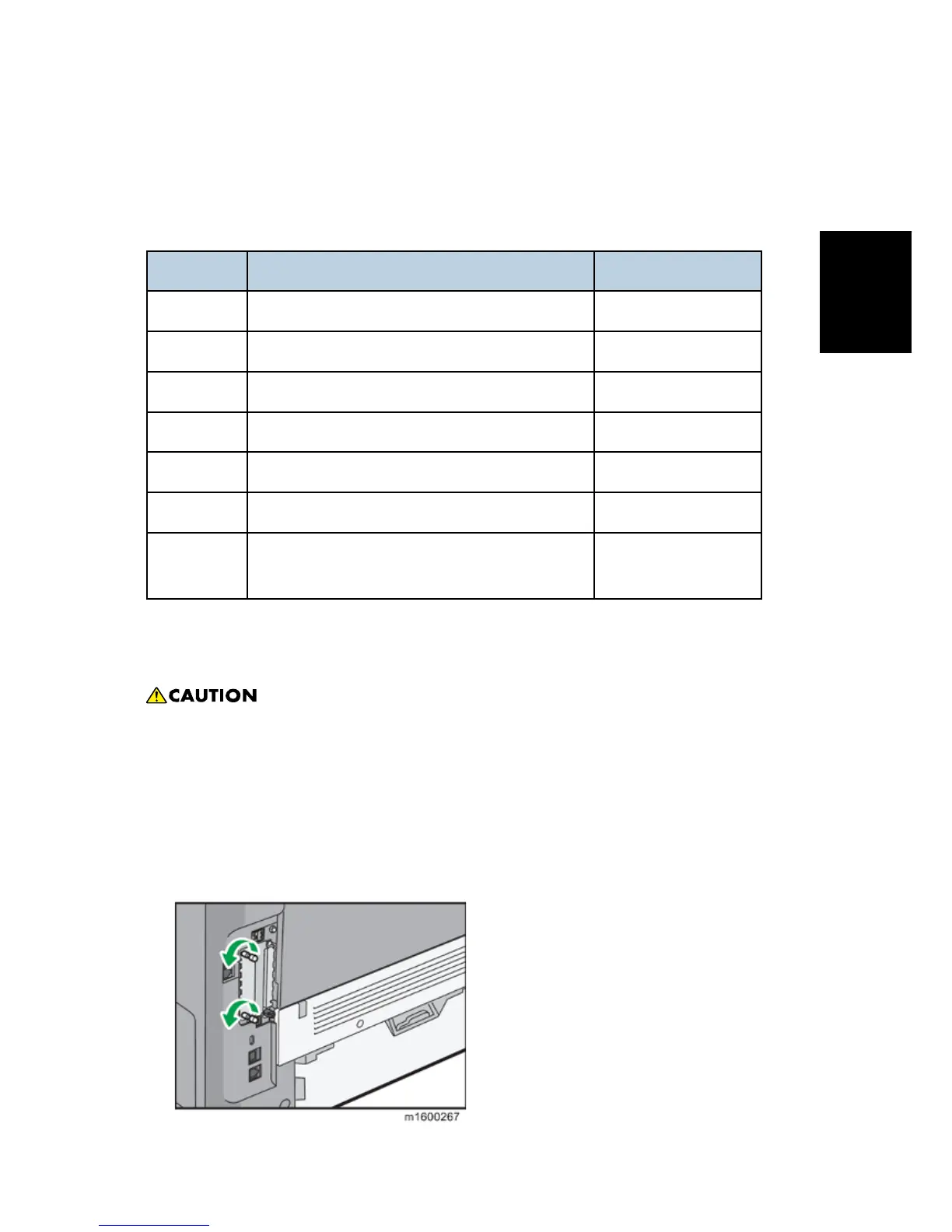

2.15 IEEE 1284 INTERFACE BOARD TYPE A
2.15.1 COMPONENT CHECK
No. Description Q'ty
1 PCB Unit 1
2 SHEET:UL:PERMISSION 1
3 SHEET:FCCDOC:IEEE1284(TYPE_A) 1
4 RoHS Decal 1
5 RoHS Sheet 1
6 LABEL:ROHS:DATE:40MM 1
7
CAUTION CHART:INSTALLATION
PROCEDURE:14LANGUAGES
1
2.15.2 INSTALLATION PROCEDURE
Unplug the main machine power cord before you do the following procedure.
Before beginning work, ground yourself by touching something metal to discharge any
static electricity. Static electricity can damage the interface board.
You can only install one of the following network interfaces at a time: (IEEE 802.11 a/b/g/n
(Wireless LAN), IEEE1284)
1. Loosen the two screws and remove the slot cover.
The removed cover will not be reused.
