Main Machine Installation
M160/M161 2-14 SM

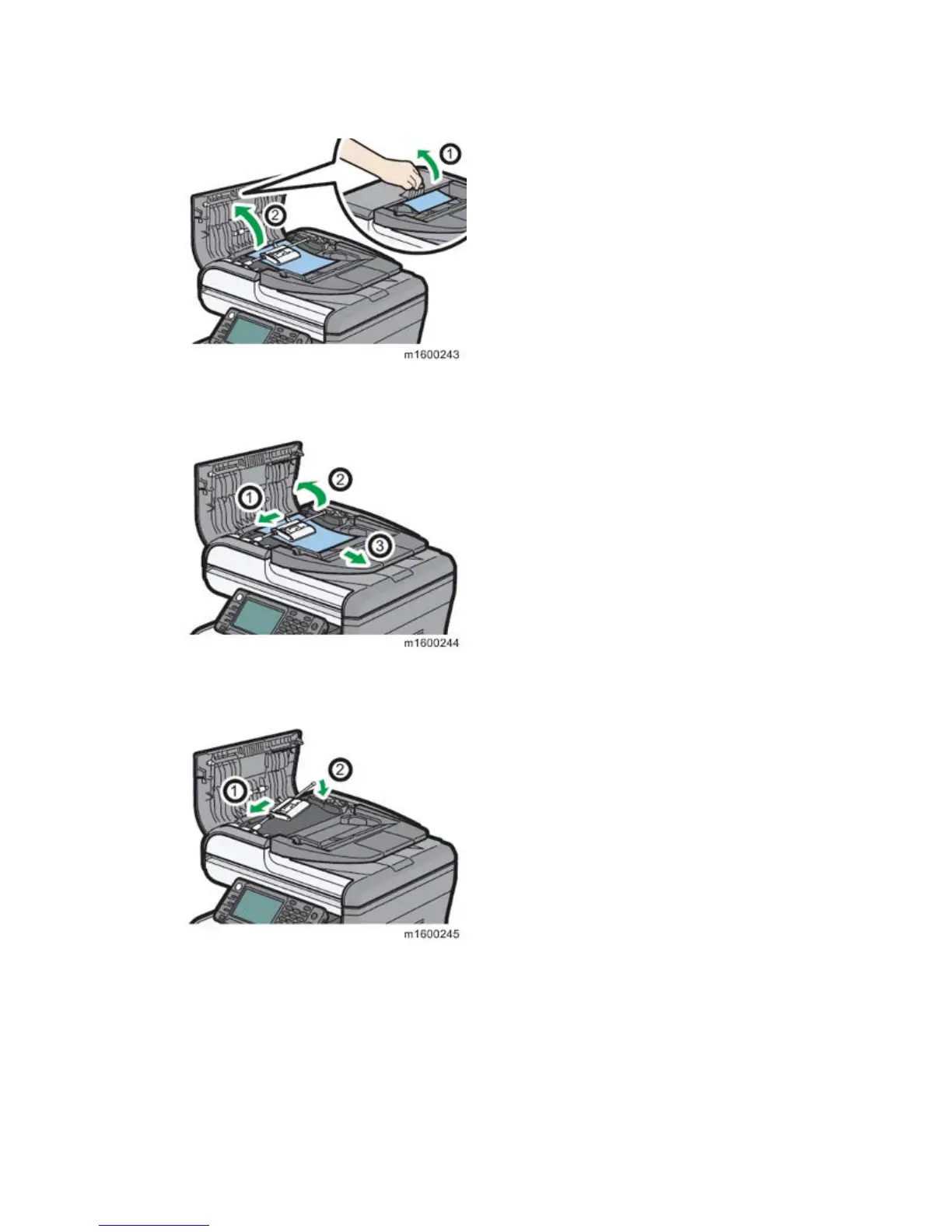

6. Pull up the open lever of the ARDF cover, and then open the ARDF cover.
7. Pull and lift the paper feed roller slightly to remove it, and then remove the protective
sheet.
8. With the roller part facing downwards, insert the ends of the paper feed roller shaft to
return the paper feed roller to its original position.
9. Close the ARDF cover.
To Next Page
