Guide to Components
This section introduces the names of the various parts on the front and rear side of the machine and
outlines their functions.

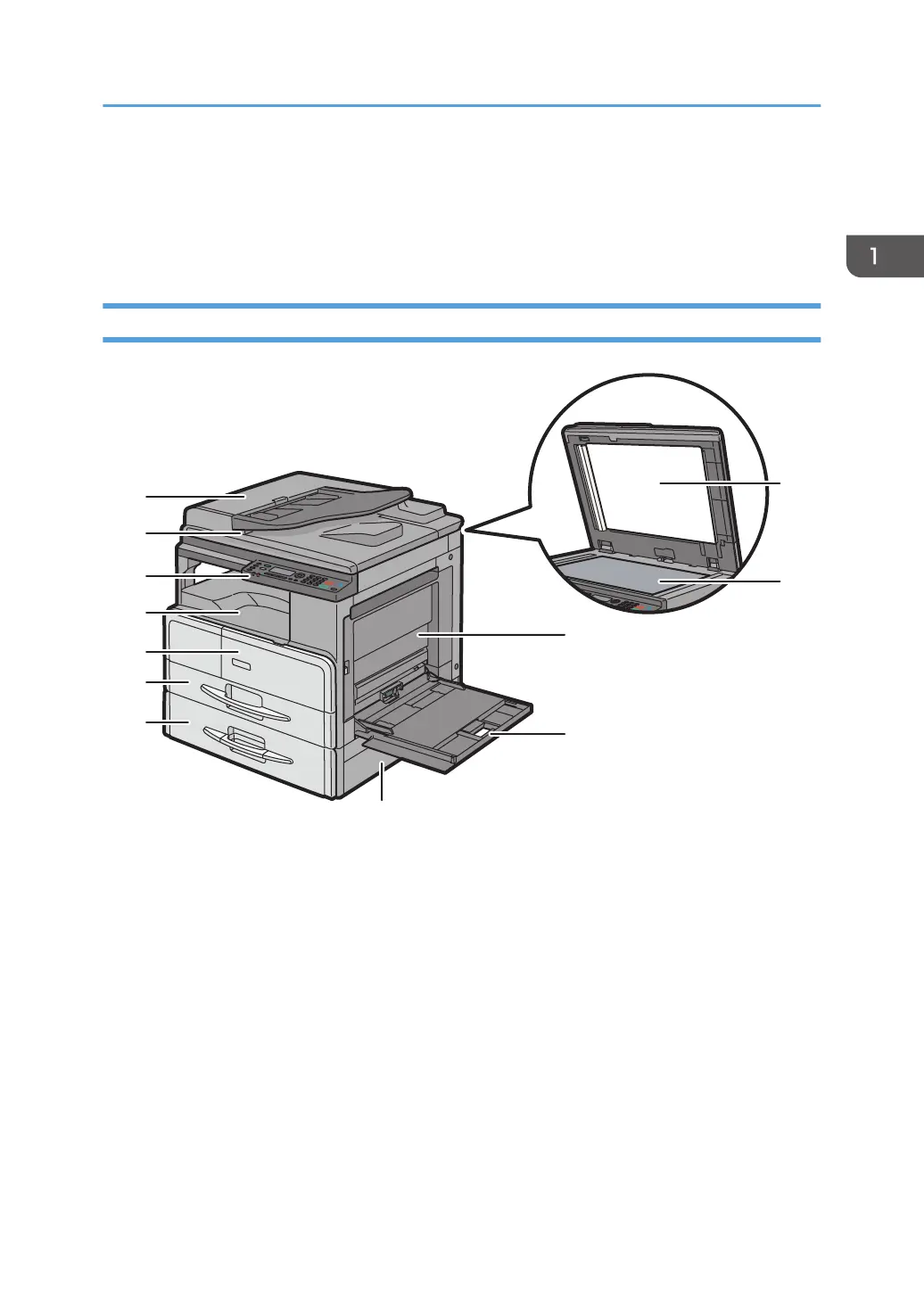

Exterior: Front View
DJC011
1
2
3
5
6
7
12
10
11
9
8
4
1. ADF Cover
Open this cover to remove originals jammed in the ADF.
2. Output Tray for the ADF
Originals scanned with the ADF are delivered from here.
3. Control Panel
Contains a screen and keys for machine control.
4. Internal Tray
Printed paper is delivered to this tray. Up to 250 sheets of plain paper can be stacked here.
5. Front Cover
Open this to replace the toner bottle.
6. Tray 1
This tray can hold up to 250 sheets of plain paper.
