The current trigger level is displayed in the trigger information label at the top of the
screen.
Trigger Mode
In Sweep, select Auto, Normal, or Single as the trigger mode. For details, refer to
Trigger Mode .
Trigger Parameter Setting
You can refer to
Trigger Holdoff and Noise Rejection to set the trigger holdoff and
noise rejection under this trigger type.
8.7.9 Window Trigger
Window trigger provides a high trigger level and a low trigger level. The instrument
triggers when the input signal passes through the high trigger level or the low trigger
level.
Trigger Type
Click or tap the drop-down button of Type to select "Over".

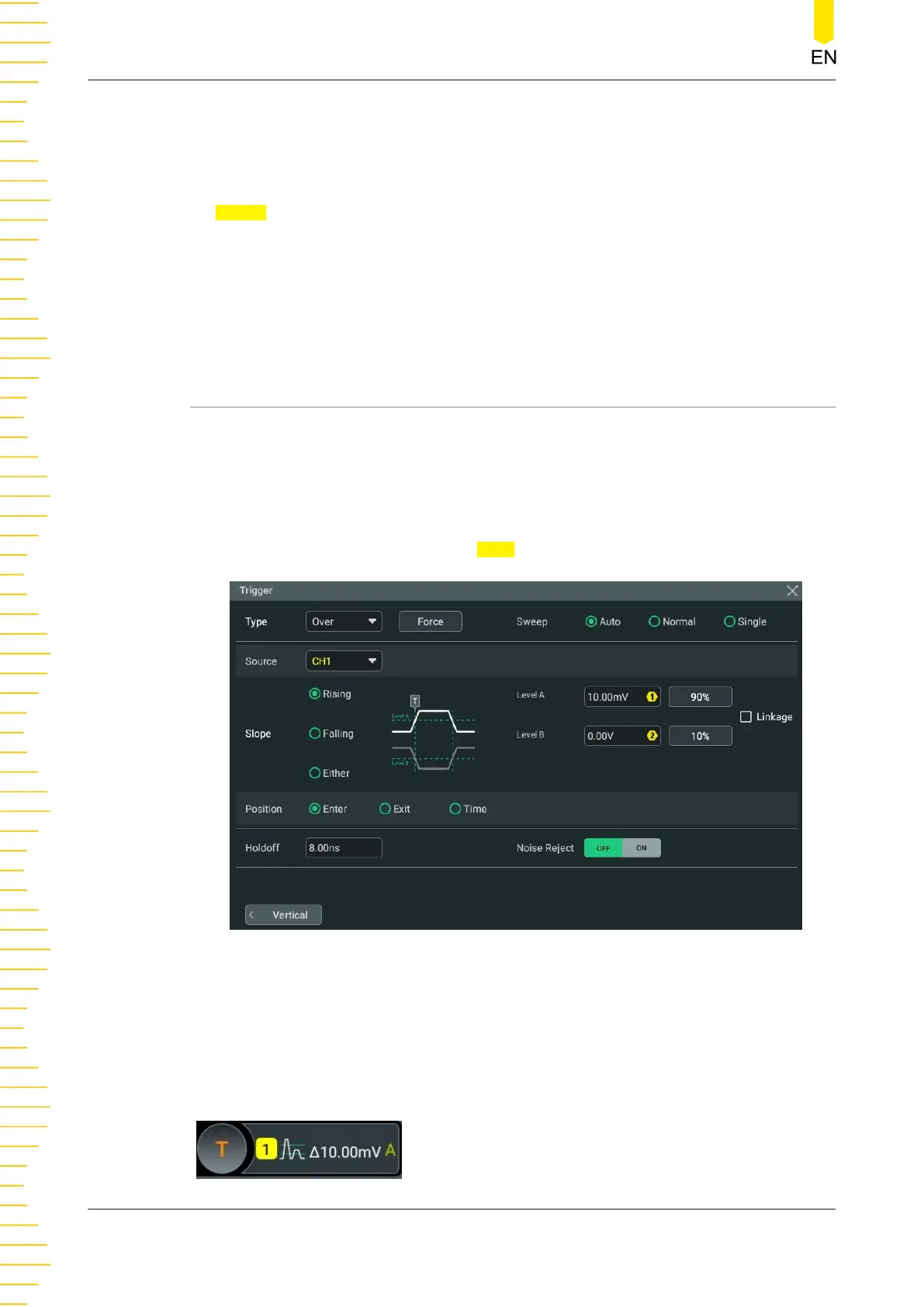

Figure 8.17 Window Trigger Setting Menu
After a trigger type is selected, the current trigger setting information (including
trigger type, trigger source, and trigger level) is displayed in the trigger information
label at the top of the screen, as shown in the figure below. The information will
change based on the trigger settings.
Triggering the Oscilloscope
HDO1000 User Guide
88
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.
