Math Operation
This series oscilloscopes can realize multiple math operations between waveforms of
different channels, including arithmetic operation, spectrum operation, logic
operation, function operation, and digital filter. You can access the Math menu in the
following ways.
• Click or tap the function navigation icon
at the lower-left corner of the
screen, and then select Math to enter the "Math" menu.
• Click or tap the Math button in the Toolbar at the upper-right corner of the
screen to enter the "Math" menu.
• Click or tap the Math1~Math4 label at the bottom of the screen, and the
corresponding math window appears on the screen, as shown in
Figure 9.2
.
Click or tap the label again, or the
icon at the upper-right corner of the
window to enter the "Math" menu.
• Press the front-panel key to enter the "Math" menu.

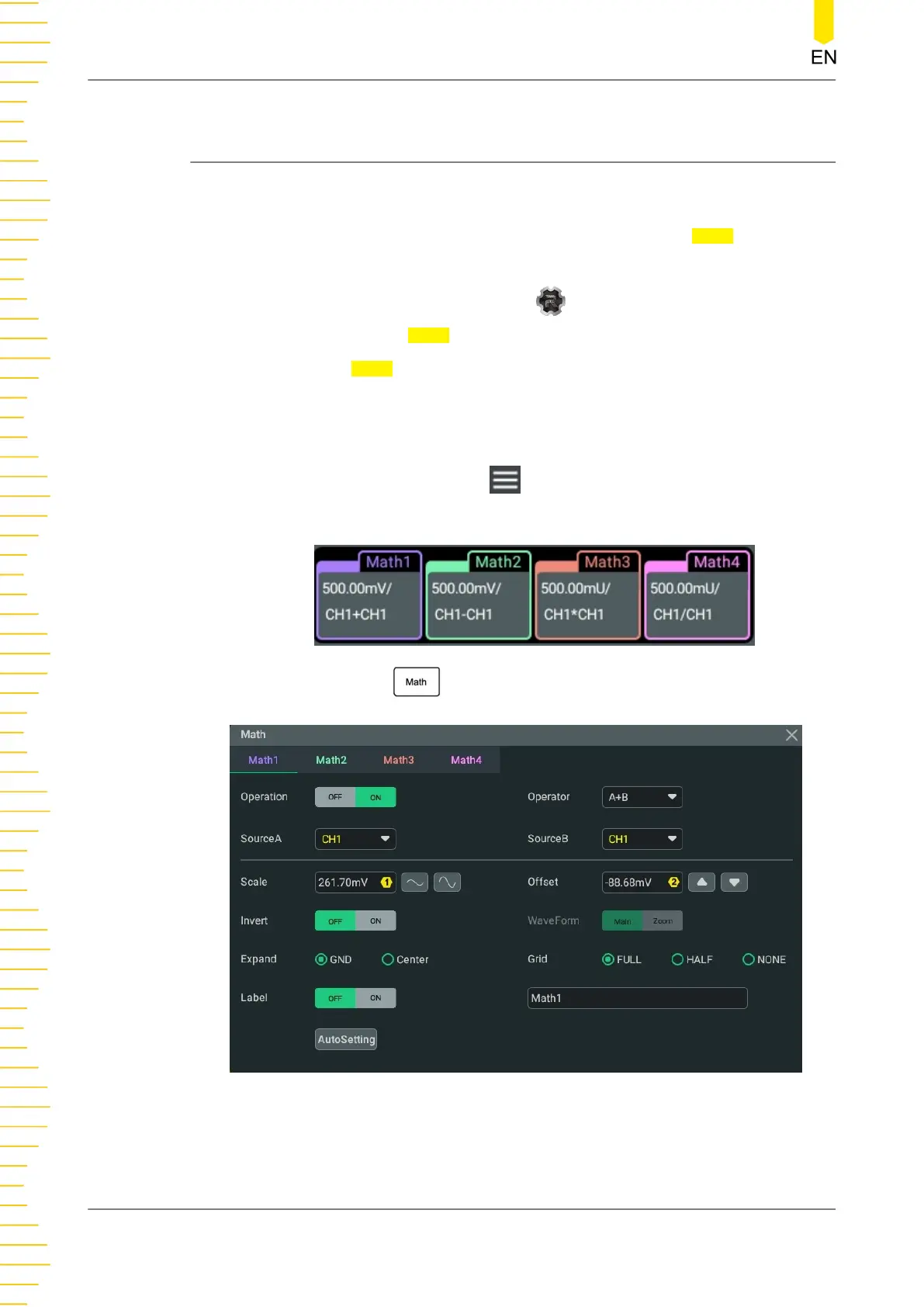

Figure 9.1 Math Menu
This oscilloscope provides four math operations: Math1, Math2, Math3, and Math4.
You can select the desired math operation type by clicking or tapping the
Math Operation
