10.3 Measurement Settings
In the Measure menu, click or tap the Setting button to enter the measurement
setting menu.

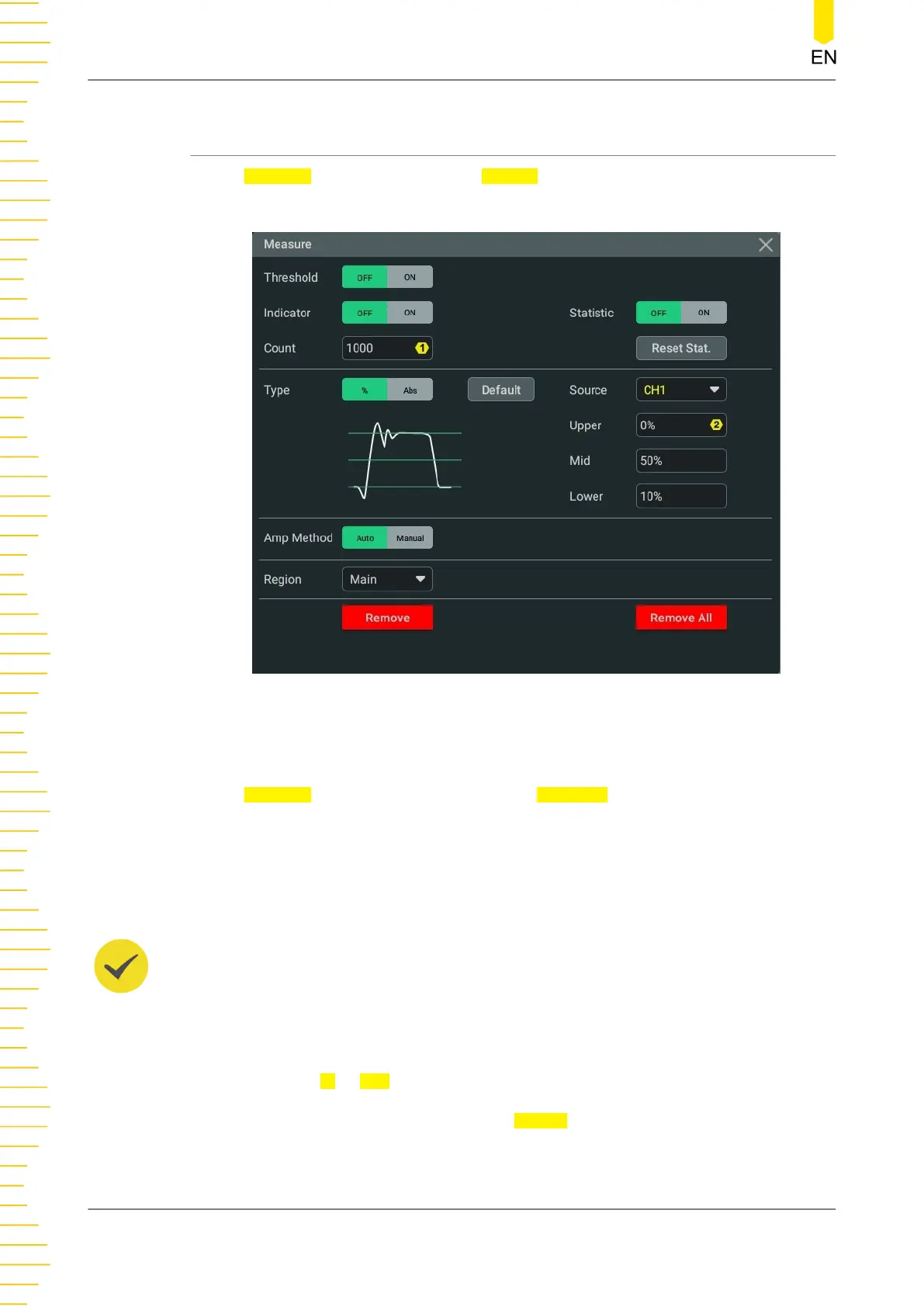

Figure 10.7 Measurement Settings
Indicator
In the Measure setting menu, click or tap the Indicator on/off switch to enable or
disable the indicator.
If enabled, one or more cursors will be displayed on the screen. Before enabling the
indicator, you need to enable at least one auto measurement parameter and the
number of cursors will change with the measurement parameter enabled.
TIP
When no measurement parameter is selected or there is no source input, the indicator is not
available. The indicator changes when the waveform is expanded or compressed horizontally.
Measurement Threshold
• First, select % or Abs as the display type.
• Click or tap the drop-down button of Source to select the desired channel from
CH1 to CH4 or from Math1 to Math4.
Measurements
HDO1000 User Guide
144
