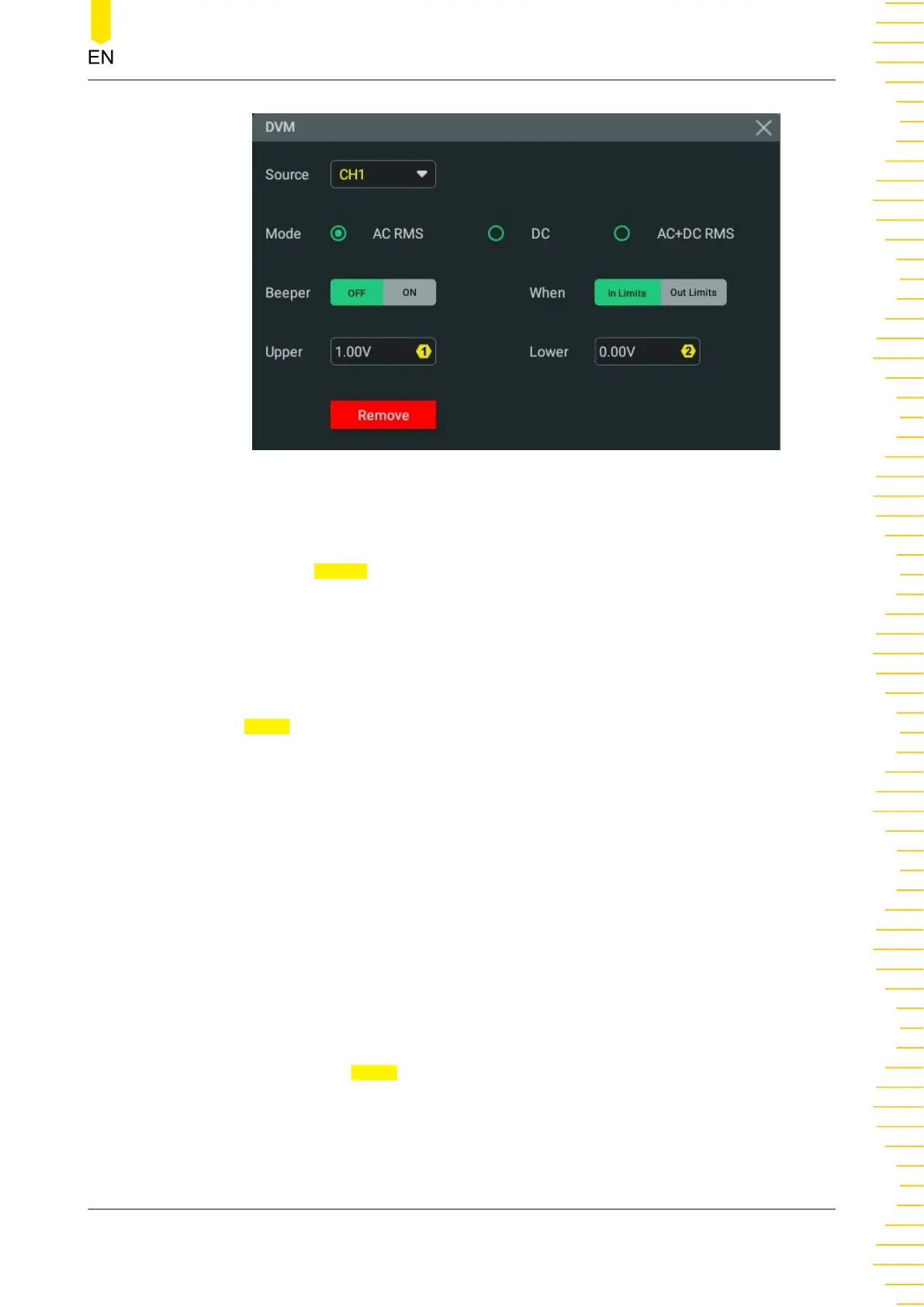

Figure 11.1 DVM Setting Menu

Select the Measurement Source

Click or tap the

Source drop-down button to select the desired source. The analog

channel (CH1-CH4) can be selected to be the measurement source.

Even if the analog channel (CH1-CH4) is not enabled, you can still perform the DVM

measurements.

Select Measurement Mode

In the

Mode item, you can select the DVM mode. The DVM measurement modes

include AC RMS, DC, and AC+DC RMS.

• AC RMS: displays the root-mean-square value of the acquired data, with the DC

component removed.

• DC: displays the average value of the acquired data.

• AC+DC RMS: displays the root-mean-square value of the acquired data.

Set the Limits

When setting the limits, you can select when to turn on or off the beeper once it

reaches the limit line.

• Limits Condition Setting

Click or tap the

When toggle button to select "In Limits" or "Out Limits".

- In Limits: when the voltage value is inside the limited range, you can enable

or disable the beeper to sound an alarm.

Digital Voltmeter (DVM) and Frequency Counter

HDO1000 User Guide

159
