window. You can also click or tap the input field to input the specific value
directly via the pop-up numeric keypad.
• Position: Rotate the corresponding multipurpose knob or use the icons at the
right of the Position input field to increase or decrease the position for the
Zoom window. You can also click or tap the input field to input the specific value
directly via the pop-up numeric keypad.

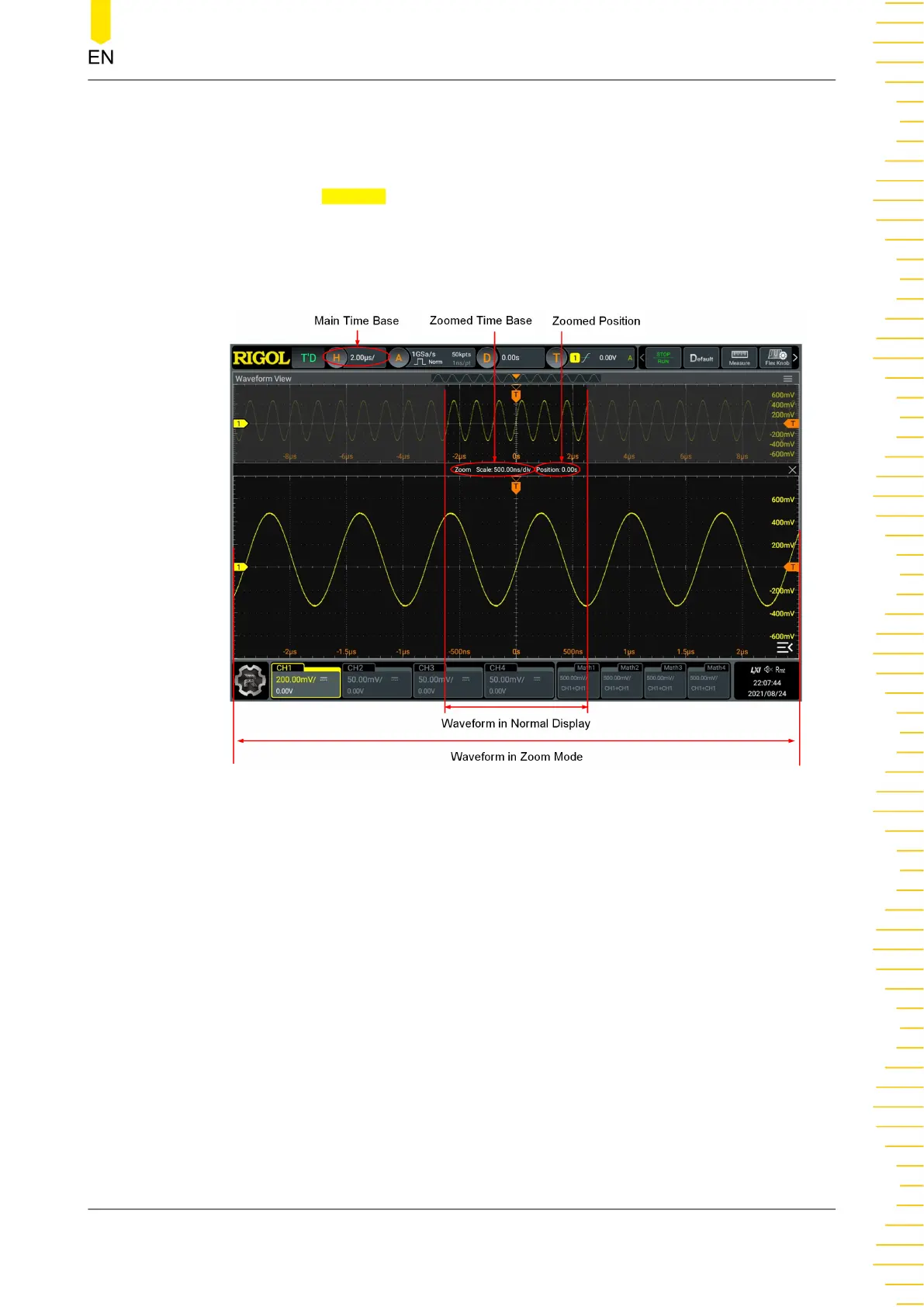

In Zoom mode, the display divides in half, as shown in the figure below.
Figure 6.2 Zoom Mode
• Waveform in normal display:
The upper portion of the display that is not ghosted shows the normal display of
the waveform. Its horizontal time base (called the main time base) is indicated in
the label at the upper-left corner of the display. You can move the area left and
right by adjusting the horizontal position and increase or decrease the size of
the area by adjusting the horizontal scale.
• Waveform in Zoom mode:
The lower portion shows the horizontally expanded version of the normal
waveform display. Its horizontal time base (called the zoomed time base) is
displayed in the middle. Compared with the main time base, the zoomed time
base has higher resolution.
Horizontal System
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.
HDO1000 User Guide
53
