4.3.5 Setting the System Language
This oscilloscope supports multiple languages. You can click or tap > Utility >
Setup > Language to select the system language.
4.3.6 Connecting Probes
RIGOL provides passive probes for HDO1000 series. For specific probe models, please
refer to
HDO1000 series Data Sheet
. For detailed technical information of the probes,
please refer to the corresponding Probe User Guide.
Connect the Passive Probe
1. Connect the BNC terminal of the probe to an analog channel input terminal of the
oscilloscope on the front panel as shown in the figure below.
2. Connect the ground alligator clip or spring of the probe to the circuit ground
terminal, and then connect the probe tip to the circuit point to be tested.

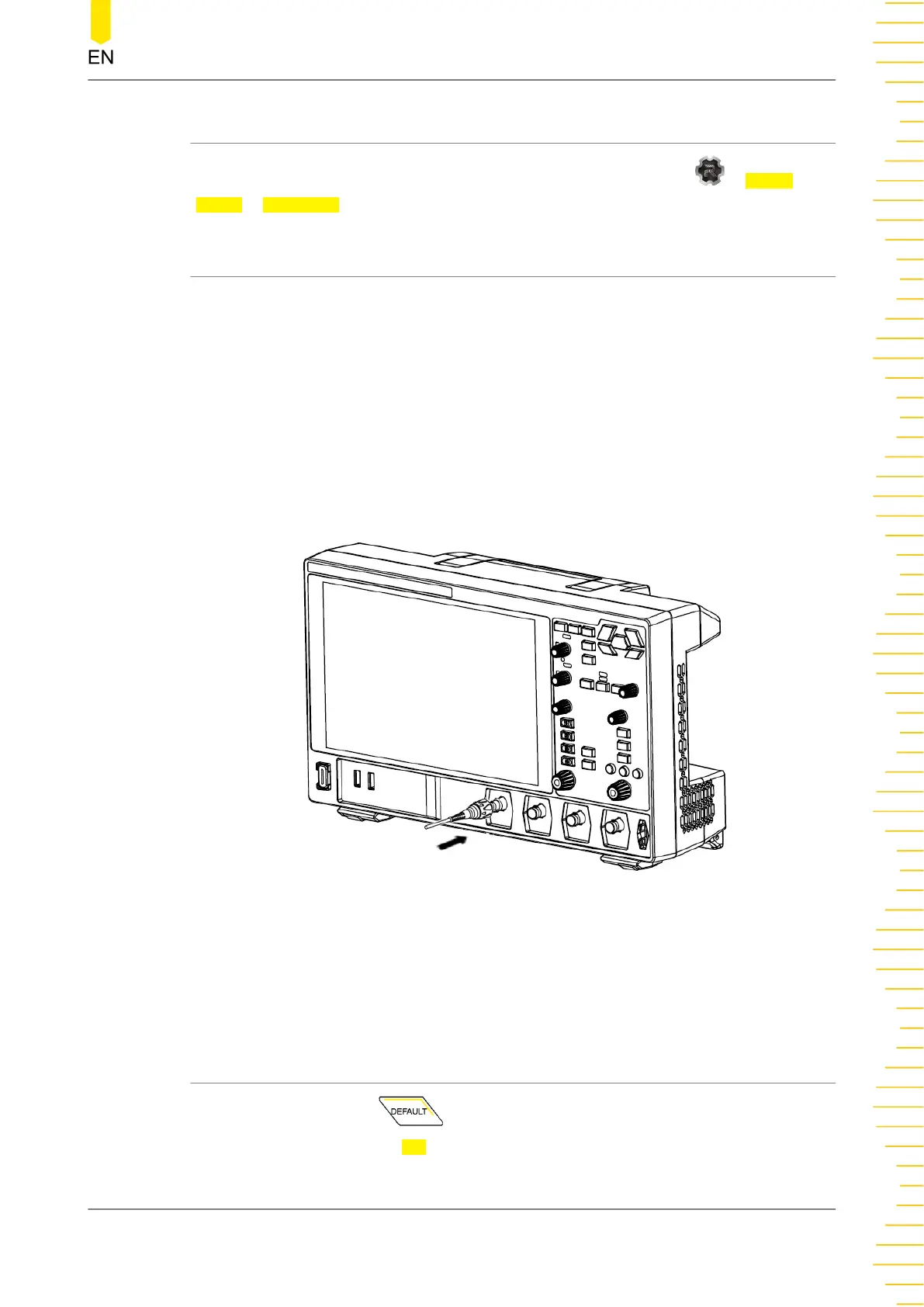

Figure 4.6 Connecting the Passive Probe
After you connect the passive probe, check the probe function and probe
compensation adjustment before making measurements. For details, please refer to
Function Inspection
and
Probe Compensation
.
4.3.7 Function Inspection
1. Press the front-panel and a prompt message "Restore default settings?"
is displayed. Click or tap OK to restore the instrument to its factory default
settings.
Quick Start
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.
HDO1000 User Guide
15
