To avoid electric shock when using the probe, please make sure that the insulated wire of

the probe is in good condition. Do not touch the metallic part of the probe when the

probe is connected to high voltage source.

4.3.8 Probe Compensation

When used for the first time, the oscilloscope probe must be compensated to match

the input characteristics of the oscilloscope channel to which it is connected. A non-

compensated or poorly compensated probes can introduce measurement inaccuracy

or errors. The compensation procedure is as follows:

1. Perform step 1, 2, 3, and 4 in

Function Inspection

2. Check the displayed waveforms and compare them with waveforms shown in the

figure below.

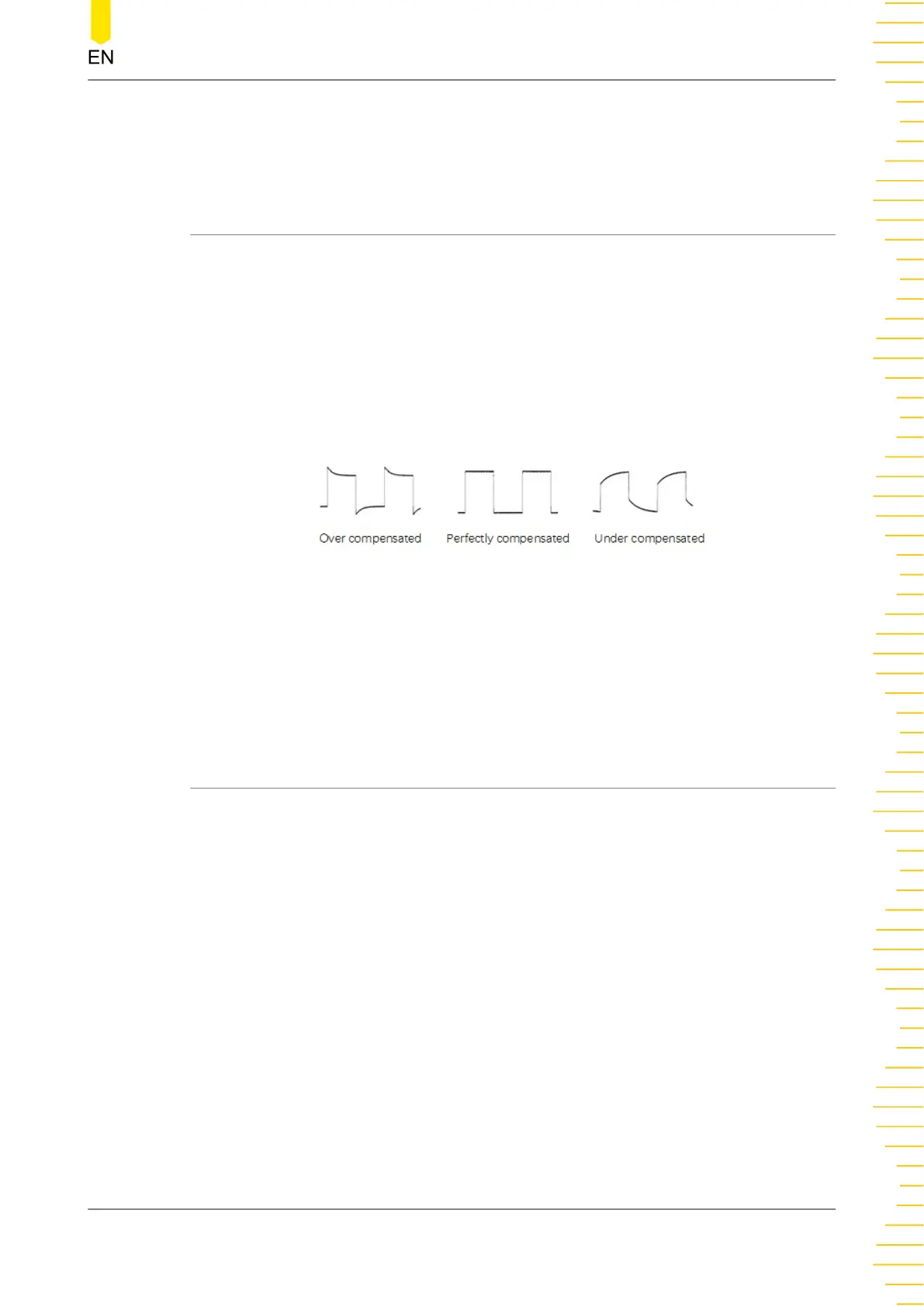

Figure 4.9 Probe Compensation

3. Use the probe compensation adjustment tool provided in the accessories to adjust

the low-frequency compensation adjustment hole on the probe until the displayed

waveform is consistent with the "Perfectly compensated" waveform shown in the

figure above.

4.4 Product Overview

The following content provides a description of the front and rear panels as well as

the user interface of the HDO1000 series by taking 4-channel model HDO1104 as an

example.
