Search and Navigation
The Search function allows you to quick find and mark the event of interest and then
go to the specified event in the marktable by navigating search events. The search
types include edge and pulse.
The Navigation function allows you to quickly view and navigate waveforms. You can
navigate time, search events, and segments.
17.1 Search
This function allows you to search for the specified edge and pulse width trigger.
Found search events are marked with small inverted triangles ( ) at the top of the
graticule. You can click or tap and select Search to access the Search menu, as is
shown in the figure below.

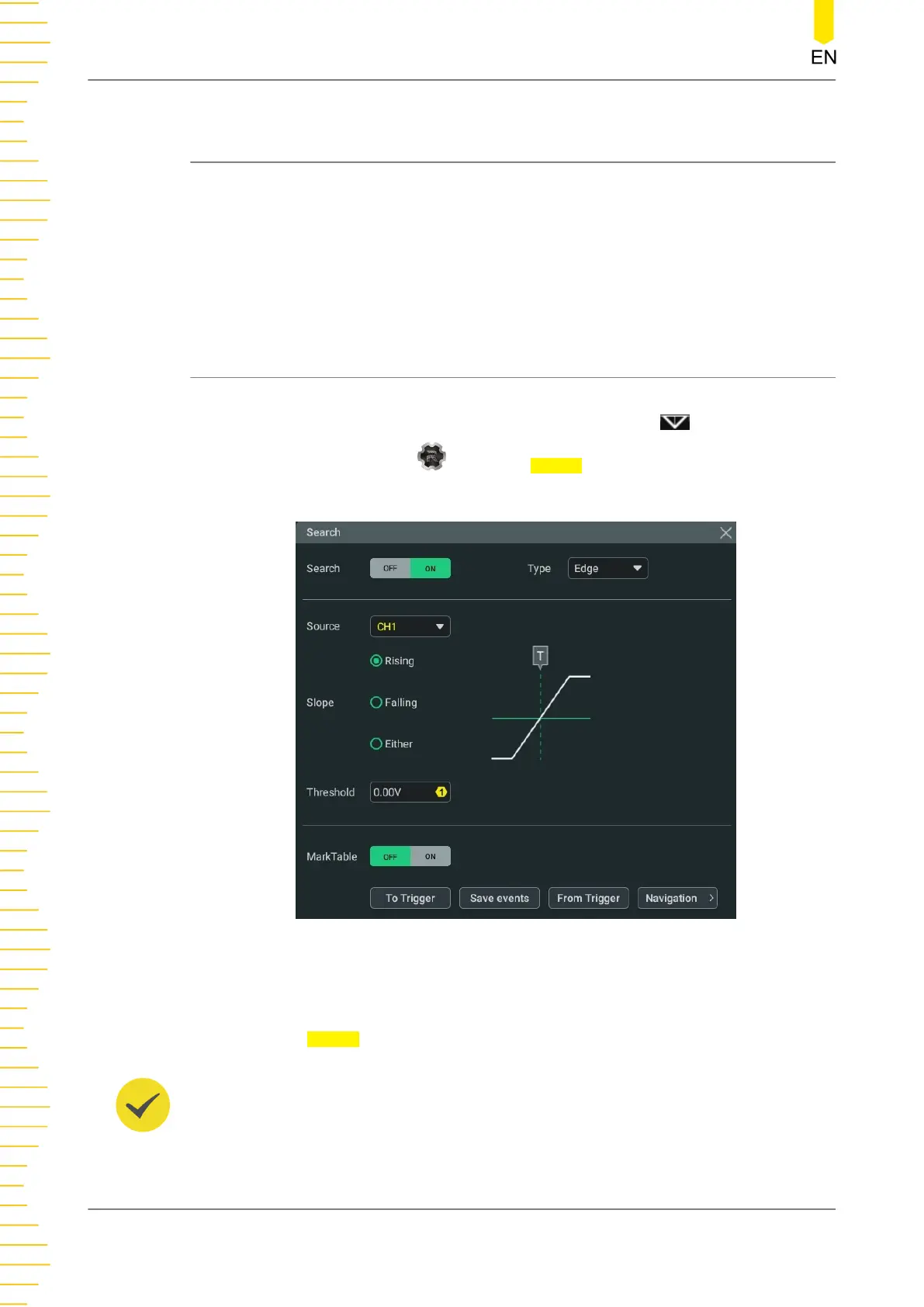

Figure 17.1 Search Menu
1.
Search On/Off
Click or tap Search on /off switch to enable or disable the search function.
TIP
Enabling the search function automatically turns on the
Zoom Mode (Delayed Sweep)
.
2. To Set up searches
Search and Navigation
HDO1000 User Guide
202
