Pass/Fail Test

During the product design and manufacturing process, you usually need to monitor

the variations of the signal or judge whether the product is up to standard. The pass/

fail test function of this series oscilloscope can accomplish this task perfectly. It

compares the signal under test with "standard" waveforms and display the test results

based on user-defined test rules. When the pass/fail status is detected, you can

choose to stop monitoring, sound an alarm with the beeper, or save the current

screen image.

Click or tap the function navigation icon

at the lower-left corner of the screen to

open the function navigation. Then click or tap the Pass/Fail button to enter the

"PassFail" setting menu. You can also press the front-panel

key and select Pass/

Fail to enter the "PassFail" setting menu. The menu is as shown in the figure below.

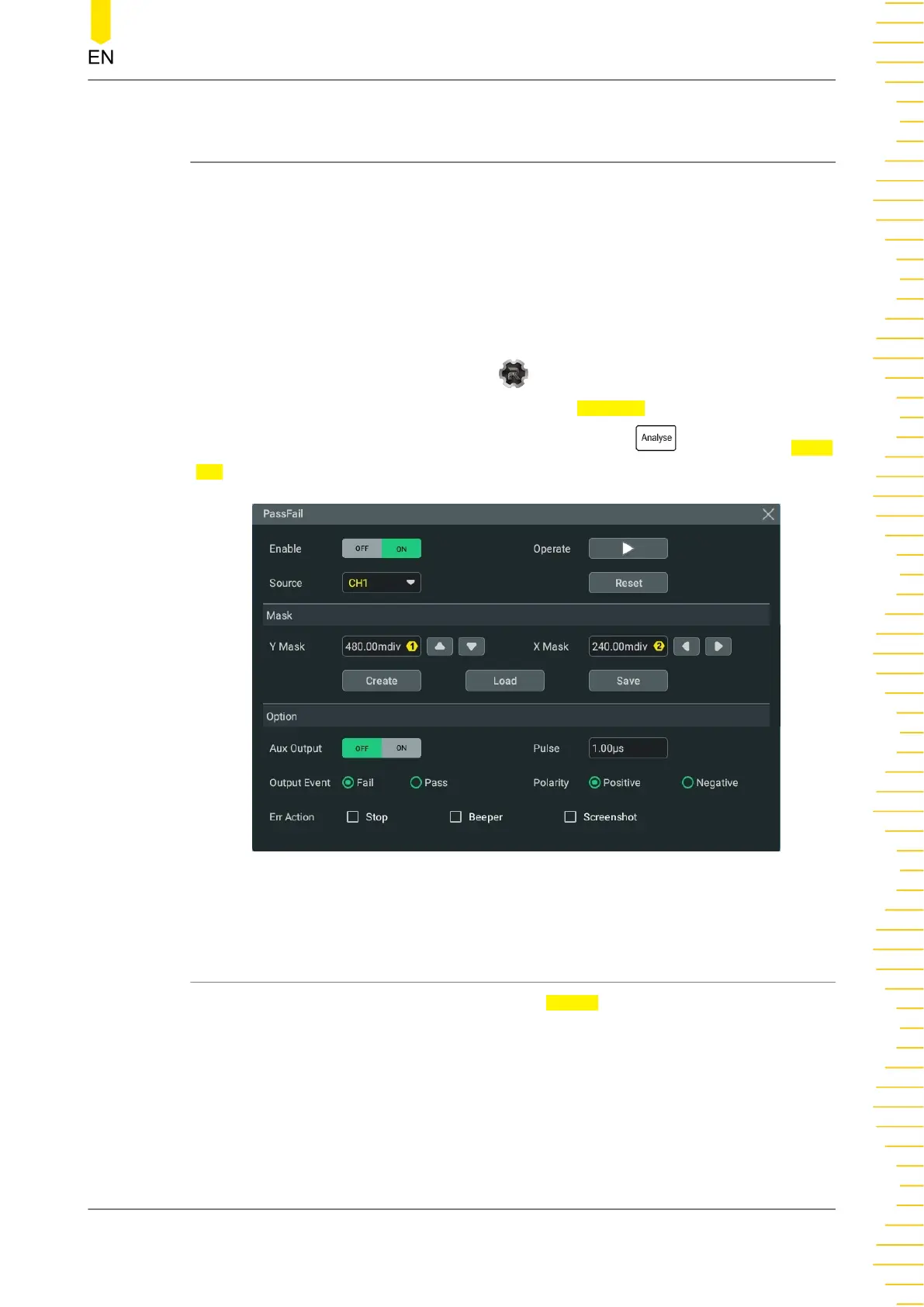

Figure 13.1 Pass/Fail Test Menu

13.1 To Enable or Disable the Pass/Fail Test Function

In the "Pass/Fail" setting menu, click or tap the Enable on/off switch to enable or

disable the pass/fail test function.

You can select the source, create mask, and set test result output only after the pass/

fail test function is enabled.
