14.1.3 Display-related Settings
In Decode menu, set the following display-related parameters.
Set the Display Format
Click or tap the drop-down button of Format to select the display format of the bus
data. The available options include "Hex", "Dec", "Bin", and "ASCII".
Set the Label Display
Click or tap the Label on/off switch to enable or disable the label display of the
decoding bus. When enabled, the bus label will be displayed at the upper-left side of
the bus (when the bus display is enabled). The label shows the current bus type.
14.1.4 Event Table
The event table displays the decoded data and the corresponding decoding
information in time order in the form of a table. It can be used to observe relatively
longer decoded data. The decoding information includes the decoded data, the
corresponding line number, and time information.
Open or Close the Event Table
Click or tap the Event Table on/off switch to enable or disable the display of the
event table. When enabled, the event table is displayed as shown in the figure below.
You can also click or tap the icon
at the upper-right corner of the table to close
the event table.

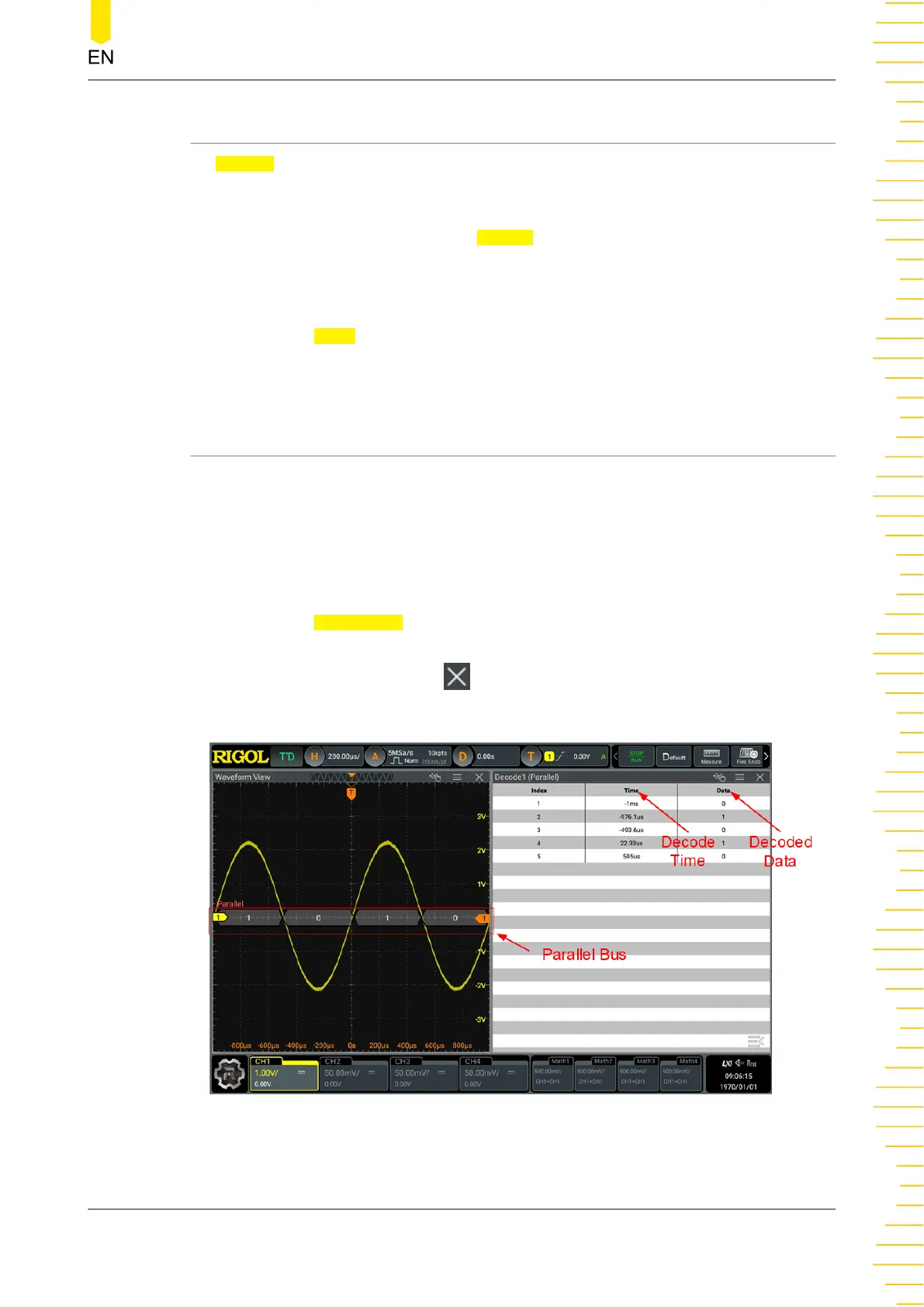

Figure 14.3 Parallel Decoding Event Table
Protocol Decoding
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.
HDO1000 User Guide
175
