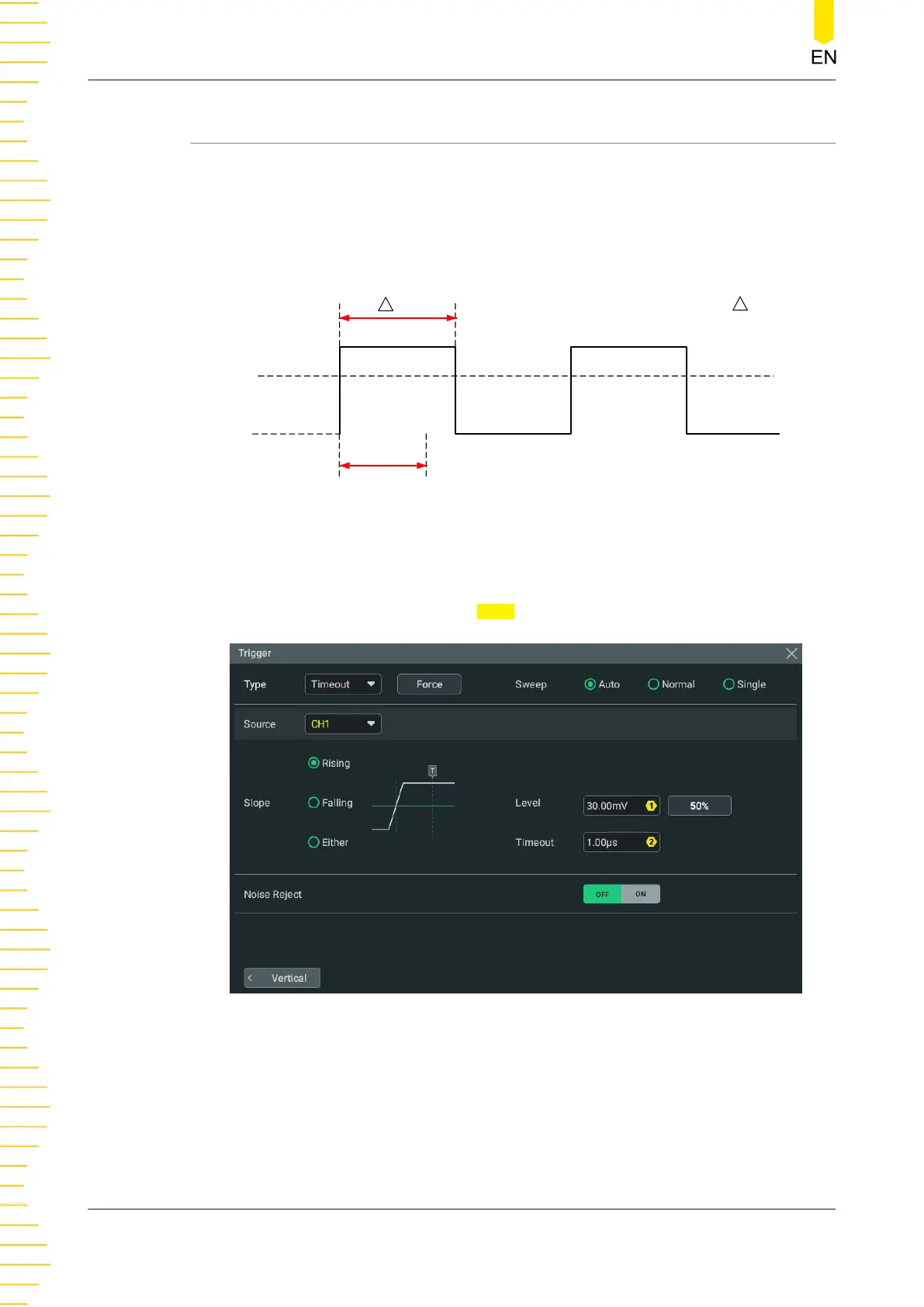

8.7.7 Timeout Trigger
In Timeout trigger, the oscilloscope triggers when the time interval (∆T) (the time
from when the rising edge (or falling edge) of the input signal passes through the
trigger level to the time from when the neighboring falling edge (or rising edge)
passes through the trigger level) is greater than the preset timeout value, as shown in
Figure 8.13
.
Time Out
T
Time Out
<
T
Figure 8.13 Timeout Trigger
Trigger Type
Click or tap the drop-down button of Type to select "Timeout".
Figure 8.14 Timeout Trigger Menu
After a trigger type is selected, the current trigger setting information (including
trigger type, trigger source, and trigger level) is displayed in the trigger information
label at the top of the screen, as shown in the figure below. The information will
change based on the trigger settings.
Triggering the Oscilloscope
HDO1000 User Guide
84
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.
