Rigol HDO1000 Series User Manual

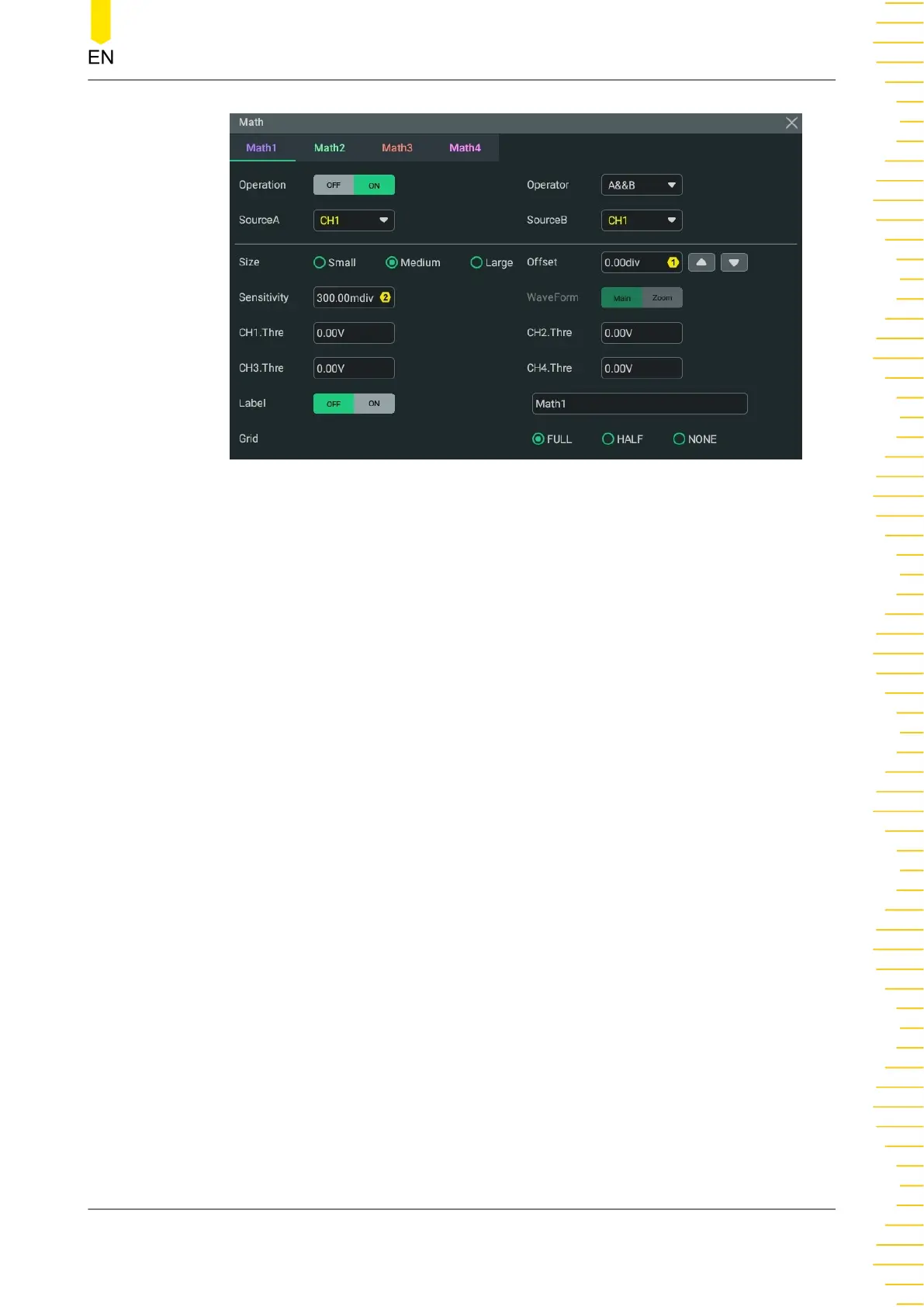

Figure 9.10 Logic Operation Menu
• A&&B: Performs logic "AND" operation on the waveform voltage values of the
specified sources point by point and displays the results. In operation, when the
voltage value of the source channel is greater than the threshold of the
corresponding channel, it is regarded as logic "1"; otherwise it is logic "0". The
results of logic AND operation of two binary bits are shown in
Table 9.2 Logic
Operation
.
• A||B: Performs logic "OR" operation on the waveform voltage values of the
specified sources point by point and displays the results. In operation, when the
voltage value of the source channel is greater than the threshold of the
corresponding channel, it is regarded as logic "1"; otherwise it is logic "0". The
results of logic OR operation of two binary bits are shown in
Table 9.2 Logic
Operation .
• A^B: Performs logic "XOR" operation on the waveform voltage values of the
specified sources point by point and displays the results. In operation, when the
voltage value of the source channel is greater than the threshold of the
corresponding channel, it is regarded as logic "1"; otherwise it is logic "0". The
results of logic XOR operation of two binary bits are shown in
Table 9.2 Logic
Operation
.
• !A: Performs logic "NOT" operation on the waveform voltage values of the
specified sources point by point and displays the results. In operation, when the
voltage value of the source channel is greater than the threshold of the
corresponding channel, it is regarded as logic "1"; otherwise it is logic "0". The
results of logic "NOT" operation of one binary bit are shown in
Table 9.2 Logic
Operation .
Math Operation
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.
HDO1000 User Guide
127
