Click or tap the trigger information label (as shown in the figure below) or press the
front-panel key to open the "Trigger" menu. Click or tap the Noise Reject
on/off switch to enable or disable the noise rejection function.
TIP
This function is available only when the trigger source is set to an analog channel or EXT.
8.7 Trigger Type
This series oscilloscope provides the following trigger types.
8.7.1 Edge Trigger
Edge trigger identifies a trigger on the trigger level of the specified edge on the input
signal.
Trigger Type
Click or tap the Type drop-down button to select "Edge".

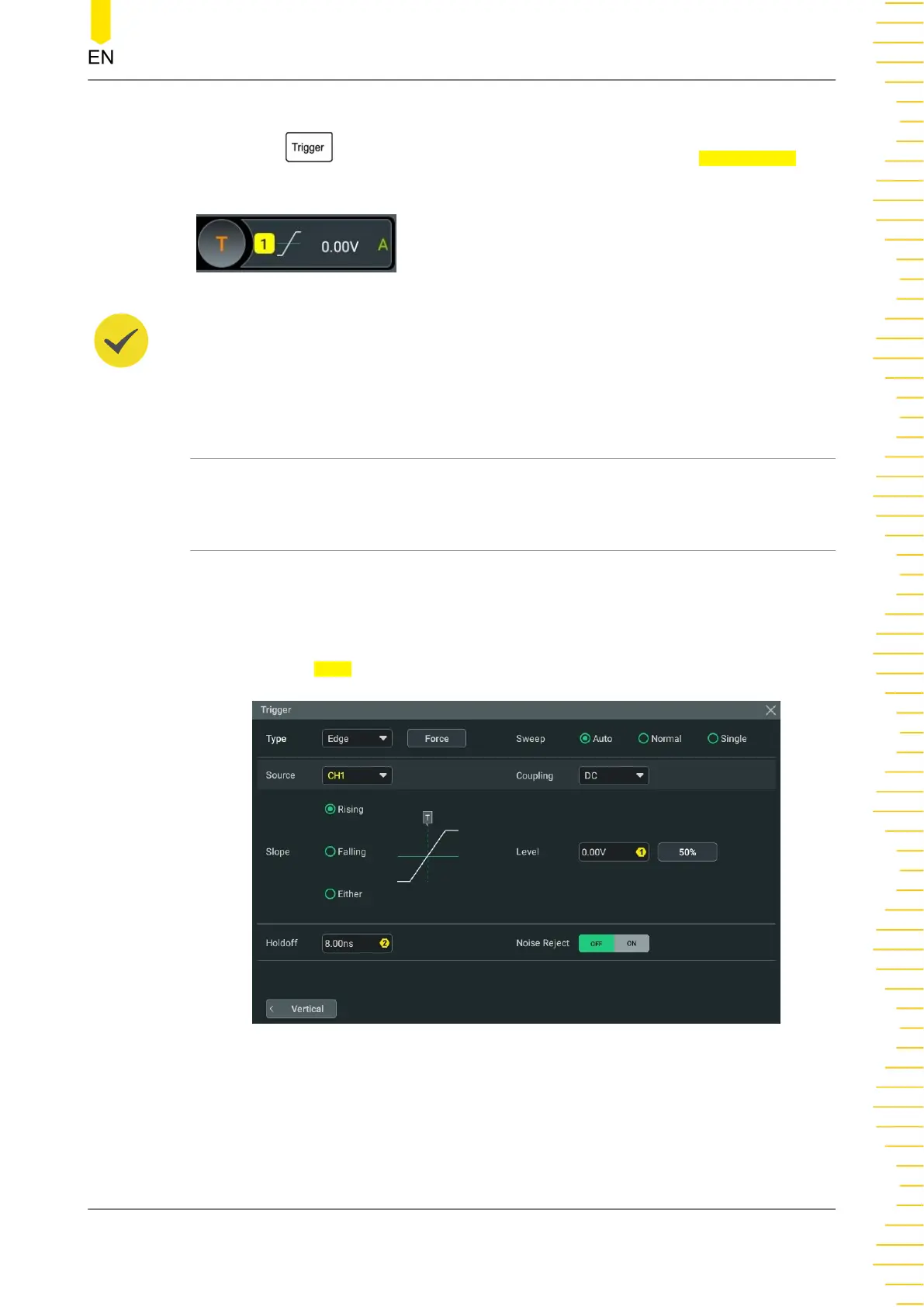

Figure 8.3 Edge Trigger Setting Menu
After a trigger type is selected, the current trigger setting information (including the
trigger type, source, and level) is displayed in the trigger information label at the top
of the screen, as shown in the figure below. The information will change based on the
trigger settings.
Triggering the Oscilloscope
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.
HDO1000 User Guide
69
