• Click or tap the icon at the lower-right corner of the measurement statistics

label to unfold the statistics result to display all the measurement statistics items.

Click or tap the icon to fold the measurement statistics label.

10.4 Remove the Measurement Results

This oscilloscope allows you to delete the measurement results of the parameters.

• In Measure setting menu, click or tap Remove to delete the currently selected

measurement item that you've added; click or tap Remove All to delete all the

displayed measurement items.

• Click or tap any measurement item in the "Result" sidebar at the right side of the

screen and a window is displayed. Click or tap

Remove to delete the currently

selected measurement item that you've added; click or tap Remove All to delete

all the displayed measurement items.

• In the "Result" sidebar, select a measurement item and drag it to the right to

delete it quickly.

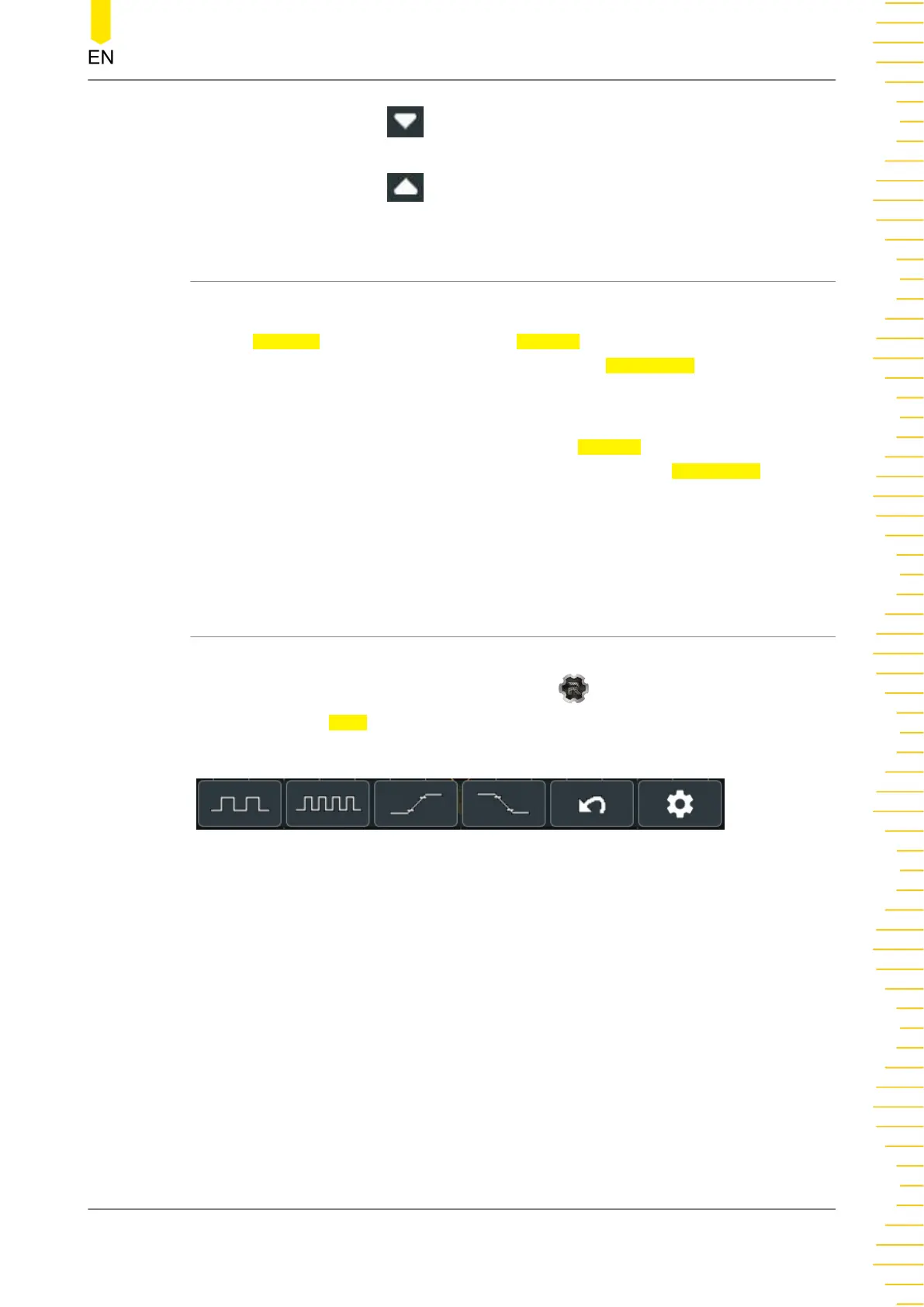

10.5 Auto Measurement

When the oscilloscope is correctly connected and has detected a valid input signal,

you can click or tap the function navigation icon at the lower-left corner of the

screen and select Auto to enable the waveform auto setting function and open the

auto setting function menu.

• Click or tap the first icon, and then the single period of the signal is displayed

automatically on the screen. Meanwhile, the system will make measurements for

the "period" and "frequency" of the currently displayed waveforms in a single

period. The measurement results are displayed in the "Result" bar at the right

side of the screen.

• Click or tap the second icon, and then multiple periods of the signal are

displayed automatically on the screen. Meanwhile, the system will make

measurements for the "period" and "frequency" of the currently displayed

waveforms in a multiple periods. The measurement results are displayed in the

"Result" bar at the right side of the screen.

• Click or tap the third icon, and then one rising edge of the signal is displayed

automatically on the screen. Meanwhile, the system will make measurements for

the "rise time" of the currently displayed rising edge. The measurement results
