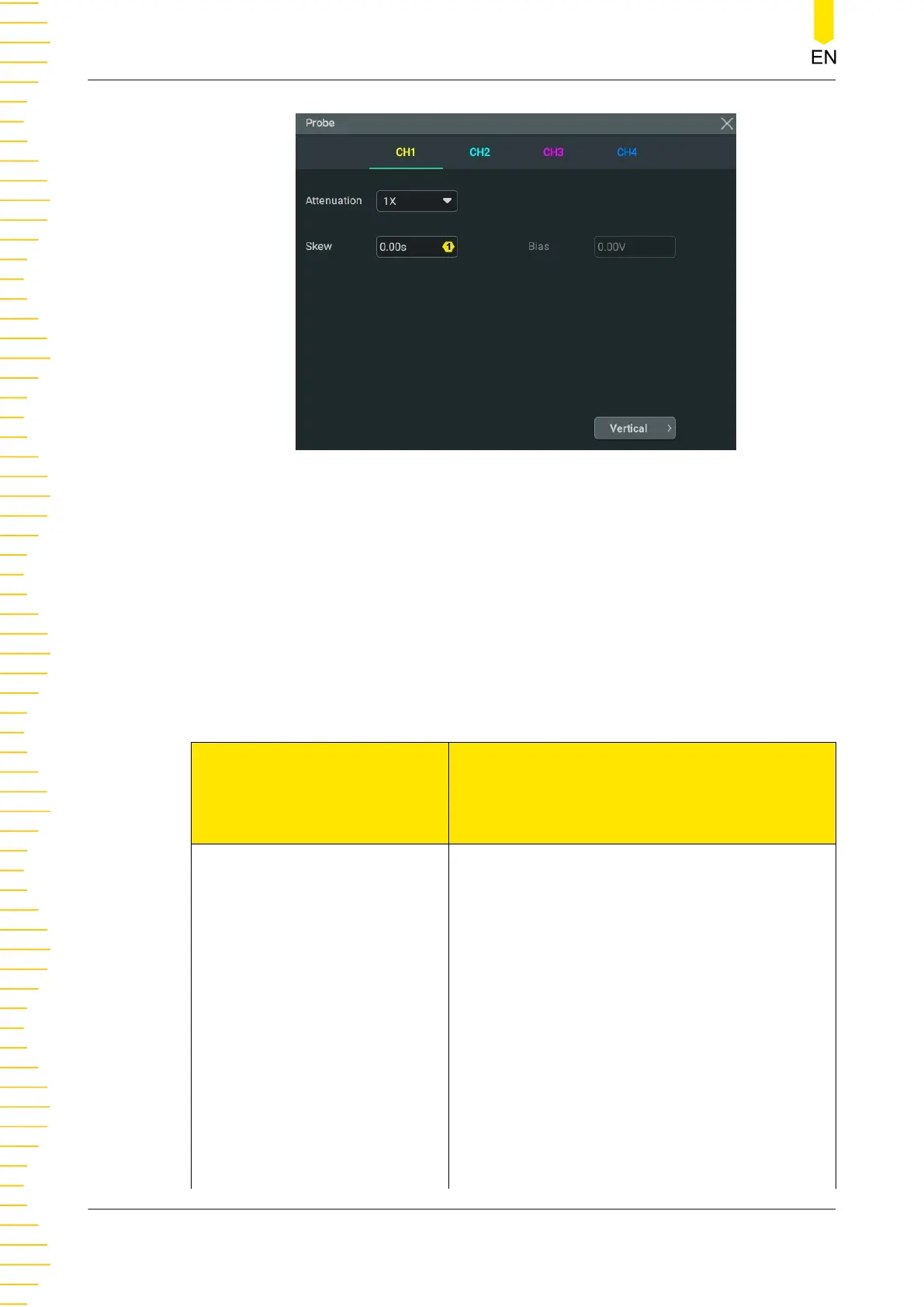

Figure 5.3 Probe Setting Menu

Probe Ratio

The oscilloscope allows you to set the probe attenuation manually. To obtain the

accurate measurement results, you must set the probe ratio properly. By default, the

probe ratio is 1X.

The probe ratio values available are as shown in the following table.

Table 5.1 Probe Ratio

Attenuation

(display amplitude of the signal: actual

amplitude of the signal)

0.001X

0.002X

0.005X

0.01X

0.02X

0.05X

0.1X

0.2X

0.5X

1X (default)

0.001:1

0.002:1

0.005:1

0.01:1

0.02:1

0.05:1

0.1:1

0.2:1

0.5:1

1:1

Vertical System
