14.2.4 Event Table
Click or tap the Event Table on/off switch to enable or disable the display of the
event table. When enabled, the event table is displayed as shown in the figure below.
You can also click or tap the icon at the upper-right corner of the table to close
the event table.

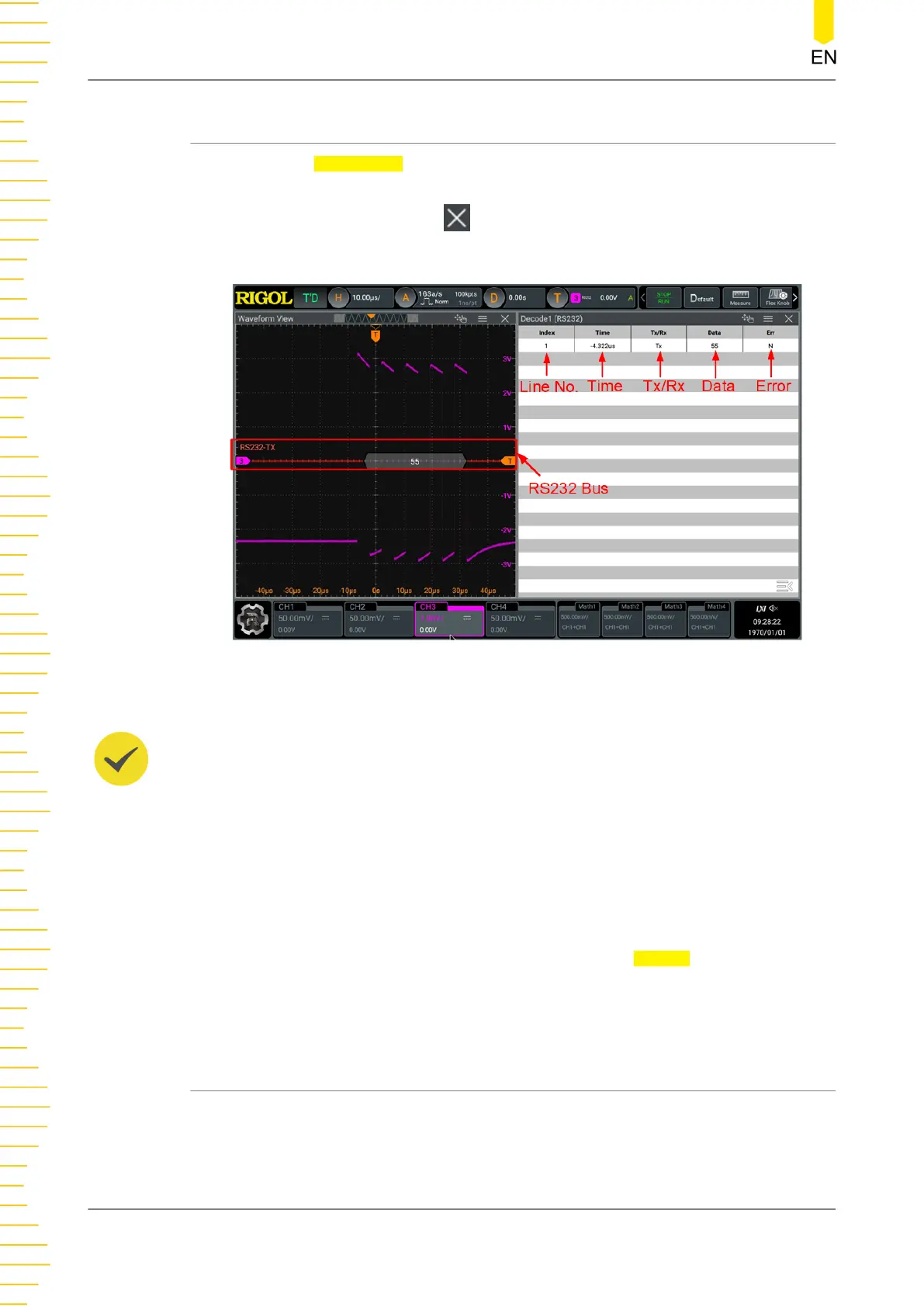

Figure 14.7 RS232 Decoding Event Table
TIP
• When you adjust the horizontal time base, the waveform displayed on the screen will also
change, and the total number of lines containing the decoding information in the event
table will also be changed.
• The displayed decoded data information in the bus is related to the value of the
horizontal time base. Reducing the horizontal time base can help you view the detailed
information.
Set the Event Table Format
In the Decode menu, click or tap the drop-down button of Format to select the
display format of "Data" in the event table. The available options include "Hex",
"Dec", "Bin", or "ASCII".
14.3 I2C Decoding
I2C serial bus consists of the clock line (SCL) and the data line (SDA).
SCL: samples SDA on the of rising or falling edge of the clock.
SDA: indicates the data channel.
Protocol Decoding
