Table 9.2 Logic Operation

A B A&&B A||B A^B !A

0 0 0 0 0 1

0 1 0 1 1 1

1 0 0 1 1 0

1 1 1 1 0 0

Operation Result Display Window

Click or tap the Operation on/off switch to enable or disable the display of the

operation result window. The source and the waveform sizes parameters are

displayed at the top of the window, as shown in the figure below.

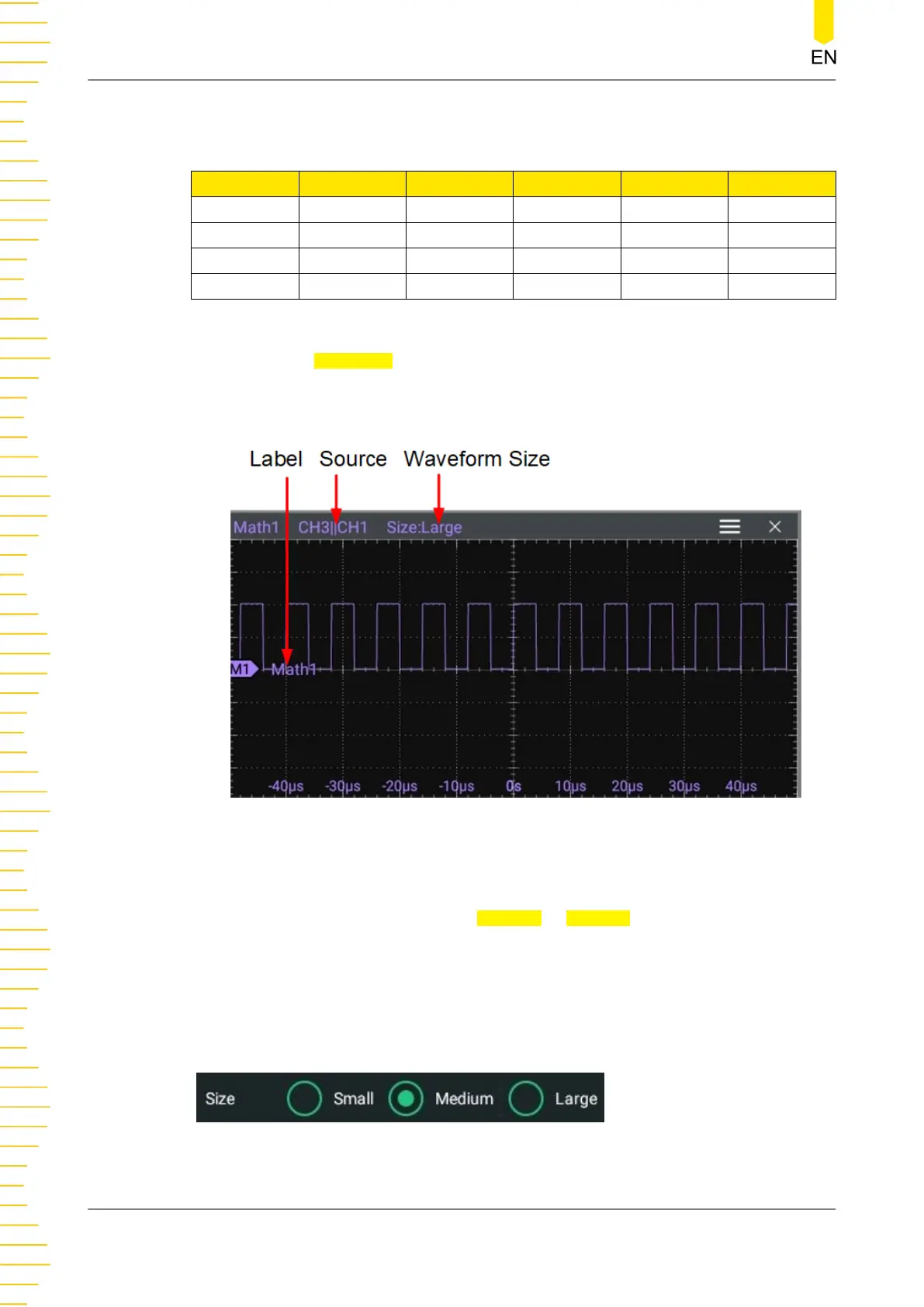

Figure 9.11 Operation Result Display Window

Source

Click or tap the drop-down button of SourceA or SourceB to select CH1, CH2, CH3,

or CH4. When a source channel is selected, the selected channel automatically

switches to the ON state.

Wave Size

You can select "Small", "Medium", or "Large" as the the waveform display mode.

Math Operation
