Offset
Offset is used to set the vertical offset of the operation result. You can set the vertical
offset in the following ways.
• In Vertical menu, rotate the corresponding multipurpose knob on the front
panel or click or tap the icon at the right side of the input field of
Offset to
increase or decrease the scale value. You can also click or tap the input field to
input a specific value with the displayed numeric keypad.
• Close the menu and then adjust the vertical offset with the drag gesture on the
touch screen. You can also rotate the corresponding multipurpose knob on the
front panel to adjust the vertical offset. Please refer to
Front Panel Overview
to
configure the front-panel multipurpose knobs.
Sensitivity
Sets the sensitivity of the digital signal converted from the analog signal on the
source. Click or tap the Sensitivity input field to set the sensitivity with the pop-up
numeric keypad or use the corresponding multipurpose knob to set the value. For
details, refer to
Parameter Setting Method
.
Waveform
This oscilloscope supports Main (default) and Zoom.
• Main indicates that the measurement range is within the main time base region.
• Zoom indicates that the measurement range is within the zoomed time base
region.
To use "Zoom", first enable the
Zoom Mode (Delayed Sweep)
in the Horizontal menu
(
Horizontal System
).

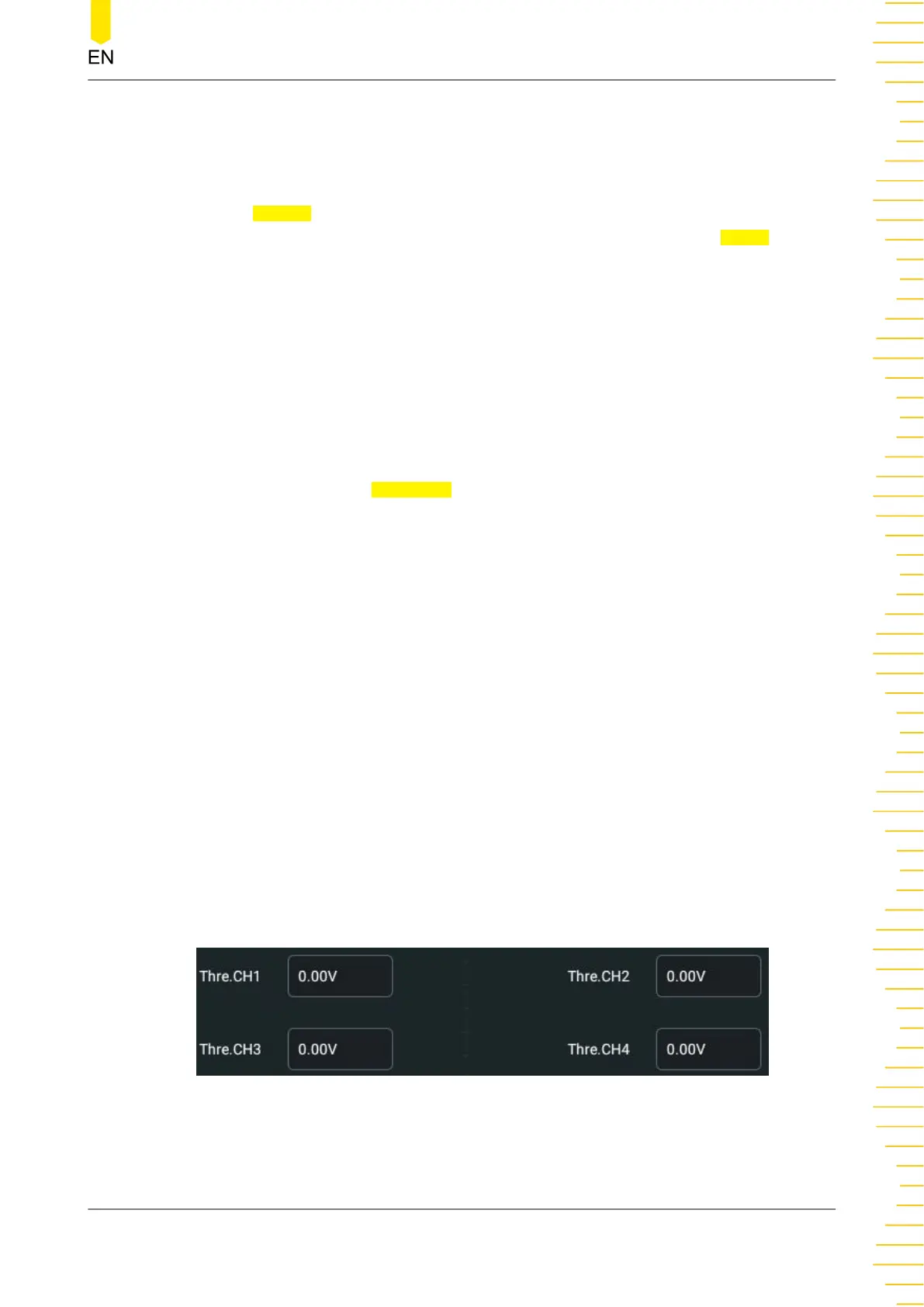

Threshold
Click or tap the threshold input field of the specified channel and use the pop-up
numeric keypad to set the threshold or use the corresponding multipurpose knob to
set the value.
Label
It is used to set the label for the math operation results. For setting methods, refer to
descriptions in
To Turn the Channel Label Display On/Off
.
Math Operation
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.
HDO1000 User Guide
129
