- Click or tap drop-down button of CS to select the desired source. The
sources include CH1-CH4.
- Click or tap the input field of the Threshold to set the threshold with the
pop-up numeric keypad. You can also use the corresponding multipurpose
knob to set the value.
- In CS Polarity, select "Positive" or "Negative".

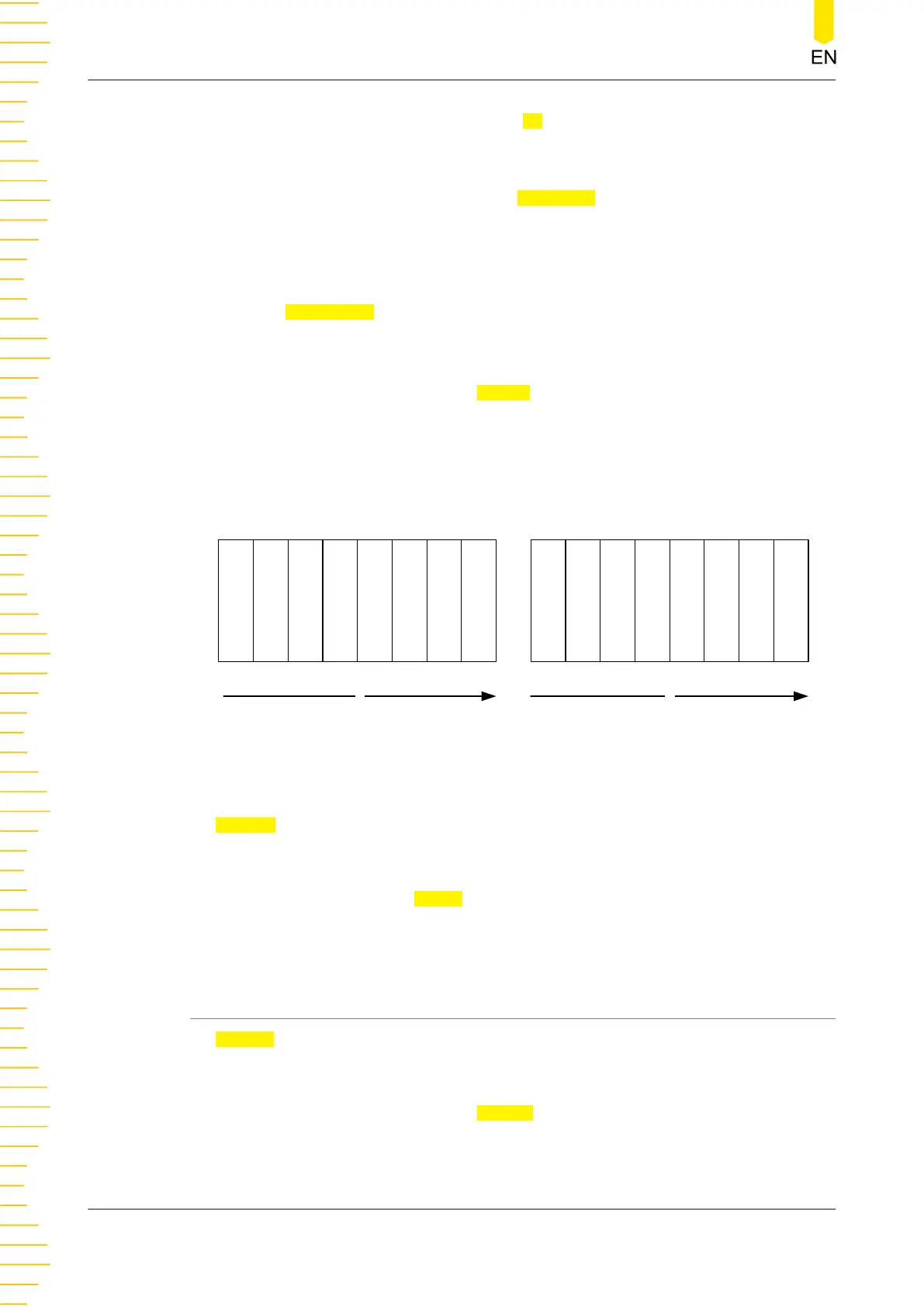

Endian
Click or tap the drop-down button of Endian to select the desired endian.
• LSB: indicates Least Significant Bit transmission sequence, i.e. the lowest bit of
the data is transmitted first.
• MSB: indicates Most Significant Bit transmission sequence, i.e. the highest bit of
the data is transmitted first.
bit0 bit1 bit2 bit3 bit4 bit5 bit6 bit7
bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0
t
t
LSB MSB
Polarity
In Polarity, select "Positive" or "Negative".
Width Setting
Click or tap the input field of
Width, and then use the pop-up numeric keypad to set
the bits of each frame of data. You can also use the corresponding multipurpose knob
to set the value. The setting range is from 4 to 32. By default, it is 8.
14.4.3 Display-related Settings
In Decode menu, set the following display-related parameters.
Set the Display Format
Click or tap the drop-down button of Format to select the display format of the bus
data. The available options include "Hex", "Dec", "Bin", and "ASCII".
Protocol Decoding
HDO1000 User Guide
186
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.
