To Next Page

To Previous Page

Trigger Parameter Setting

You can refer to

Trigger Holdoff

and

Noise Rejection

to set the trigger holdoff and

noise rejection under this trigger type.

8.7.10 Delay Trigger

In Delay trigger, you need to set Source A and Source B. The oscilloscope triggers

when the time difference (∆T) between the specified edges (Edge A and Edge B) of

Source A and Source B meets the preset time limit, as shown in the figure below.

Edge A and Edge B must be two neighboring edges.

Source A

Source B

Edge A

Edge B

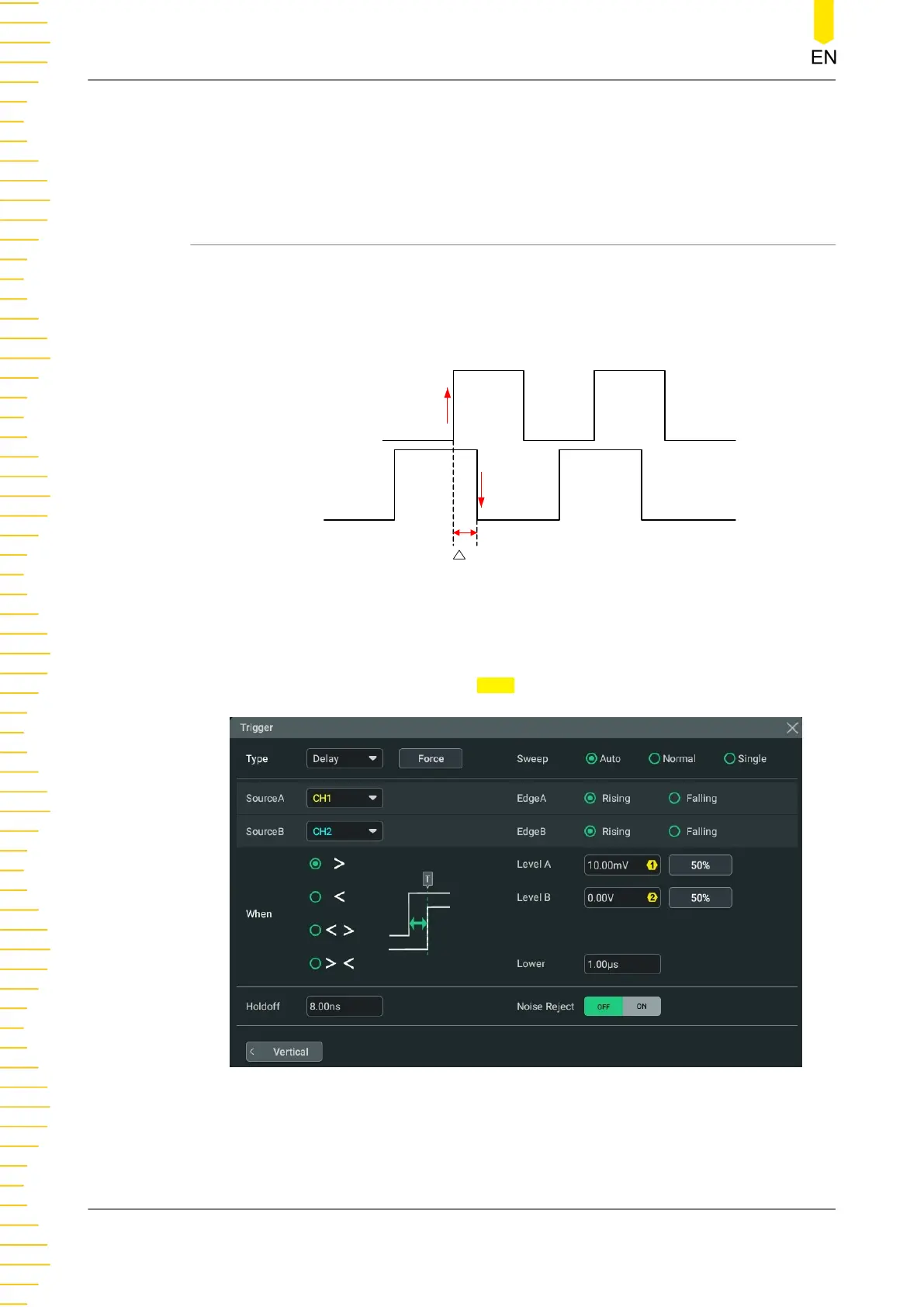

Figure 8.18 Delay Trigger

Trigger Type

Click or tap the drop-down button of Type to select "Delay".

Figure 8.19 Delay Trigger Setting Menu

After a trigger type is selected, the current trigger setting information (including

trigger type, trigger source, and trigger level) is displayed in the trigger information

Triggering the Oscilloscope
