• Level B

Click or tap the input field of Level B to input the level of SDA with the pop-up

numeric keypad. You can also use the corresponding multipurpose knob to set

the value. For details, refer to descriptions in

Trigger Level

. The current trigger

level is displayed in the trigger information label at the top of the screen.

8.7.15 SPI Trigger

In SPI trigger, after the CS or timeout condition is satisfied, the oscilloscope triggers

when the specified data is found. When using SPI trigger, you need to specify the CLK

clock sources and MISO data sources.

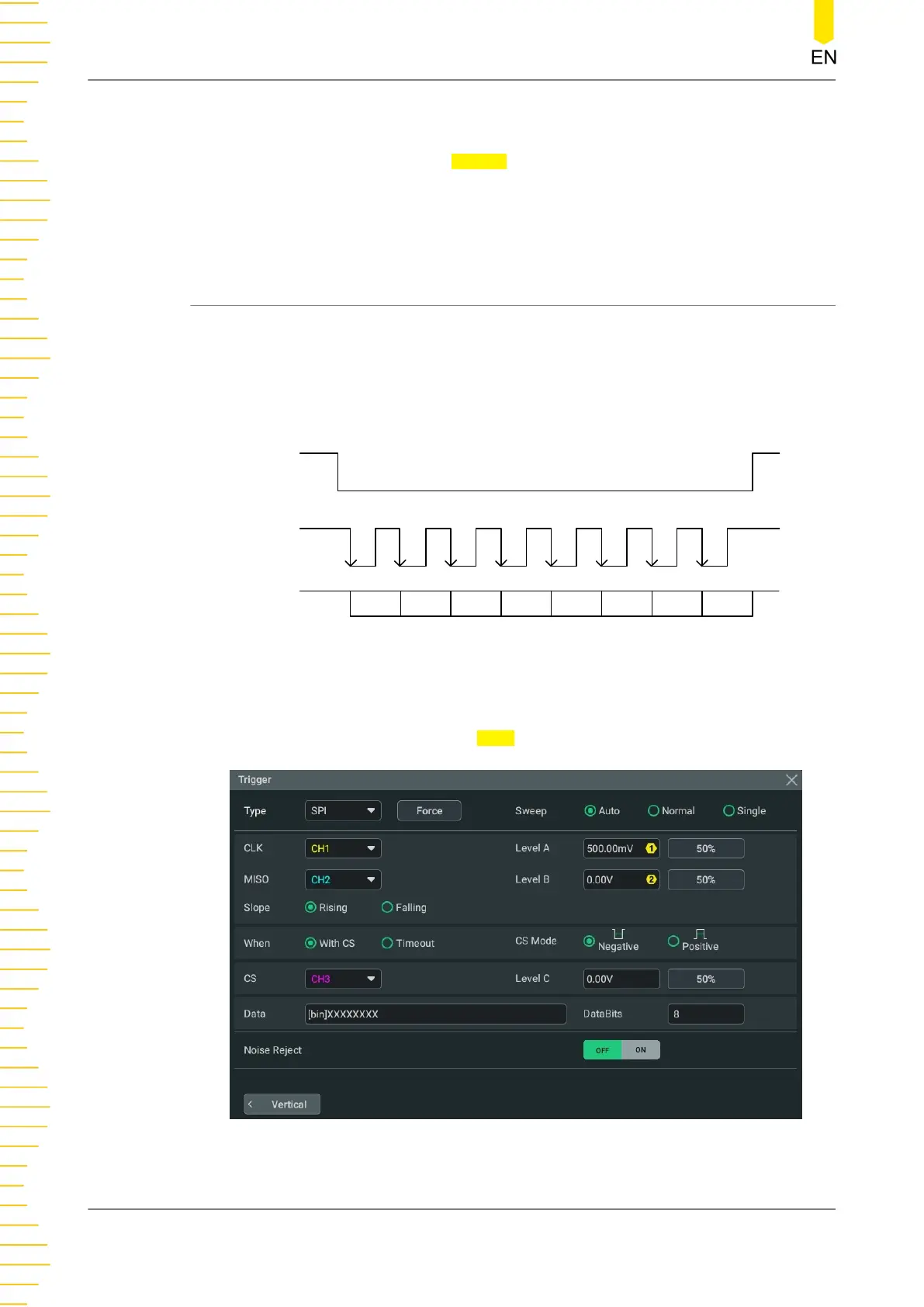

The figure below shows the sequential chart of SPI bus.

SDA

SCL

D6 D5

D4 D3

D2 D1 D0

Figure 8.30 Sequential Chart of SPI Bus

Trigger Type

Click or tap the drop-down button of Type to select "SPI".

Figure 8.31 SPI Trigger Setting Menu

Triggering the Oscilloscope

HDO1000 User Guide

104
