Trigger Parameter Setting
You can refer to Noise Rejection to set the noise rejection under this trigger type.
Trigger Level
Click or tap the Level input field to set the trigger level with the pop-up numeric
keypad. You can also use the front-panel trigger level knob or the corresponding
multipurpose knob to set the trigger level. For details, refer to descriptions in
Trigger
Level . The current trigger level is displayed in the trigger information label at the top
of the screen.
8.7.17 LIN Trigger
This series can trigger on the sync field of LIN signal, and can also trigger on the
specified identifier, data, or frame.

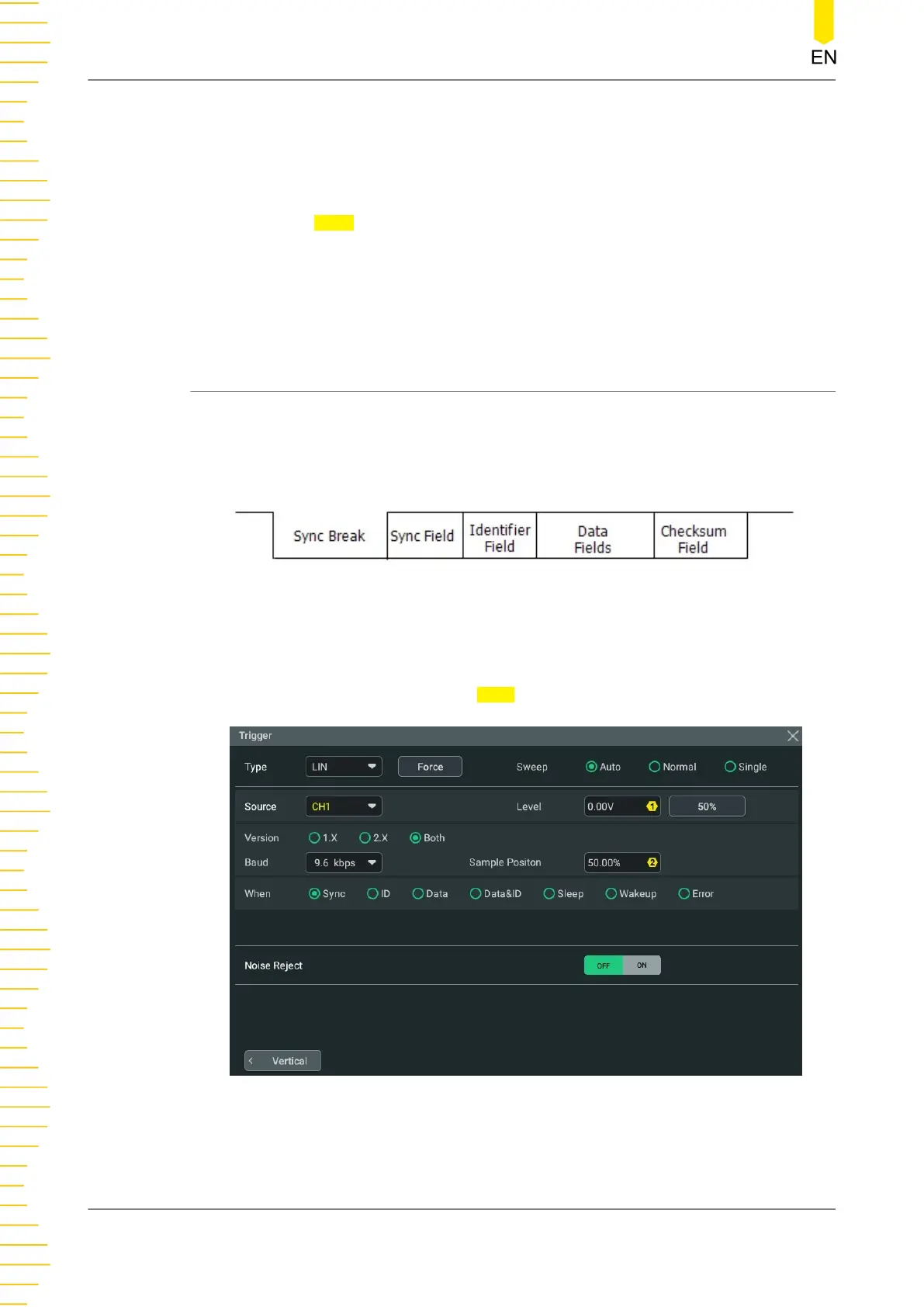

The data frame format of the LIN bus is as shown in the figure below.
Figure 8.35 Data Frame Format of the LIN Bus
Trigger Type
Click or tap the drop-down button of
Type to select "LIN".
Figure 8.36 LIN Trigger Setting Menu
After a trigger type is selected, the current trigger setting information (including
trigger type, trigger source, and trigger level) is displayed in the trigger information
Triggering the Oscilloscope
HDO1000 User Guide
110
