Set the Label Display
Click or tap the Label on/off switch to enable or disable the label display of the
decoding bus. When enabled, the bus label will be displayed at the upper-left side of
the bus (when the bus display is enabled). The label shows the current bus type.
14.4.4 Event Table
Open or Close the Event Table
Click or tap the Event Table on/off switch to enable or disable the display of the
event table. When enabled, the event table is displayed as shown in the figure below.
You can also click or tap the icon at the upper-right corner of the table to close
the event table.

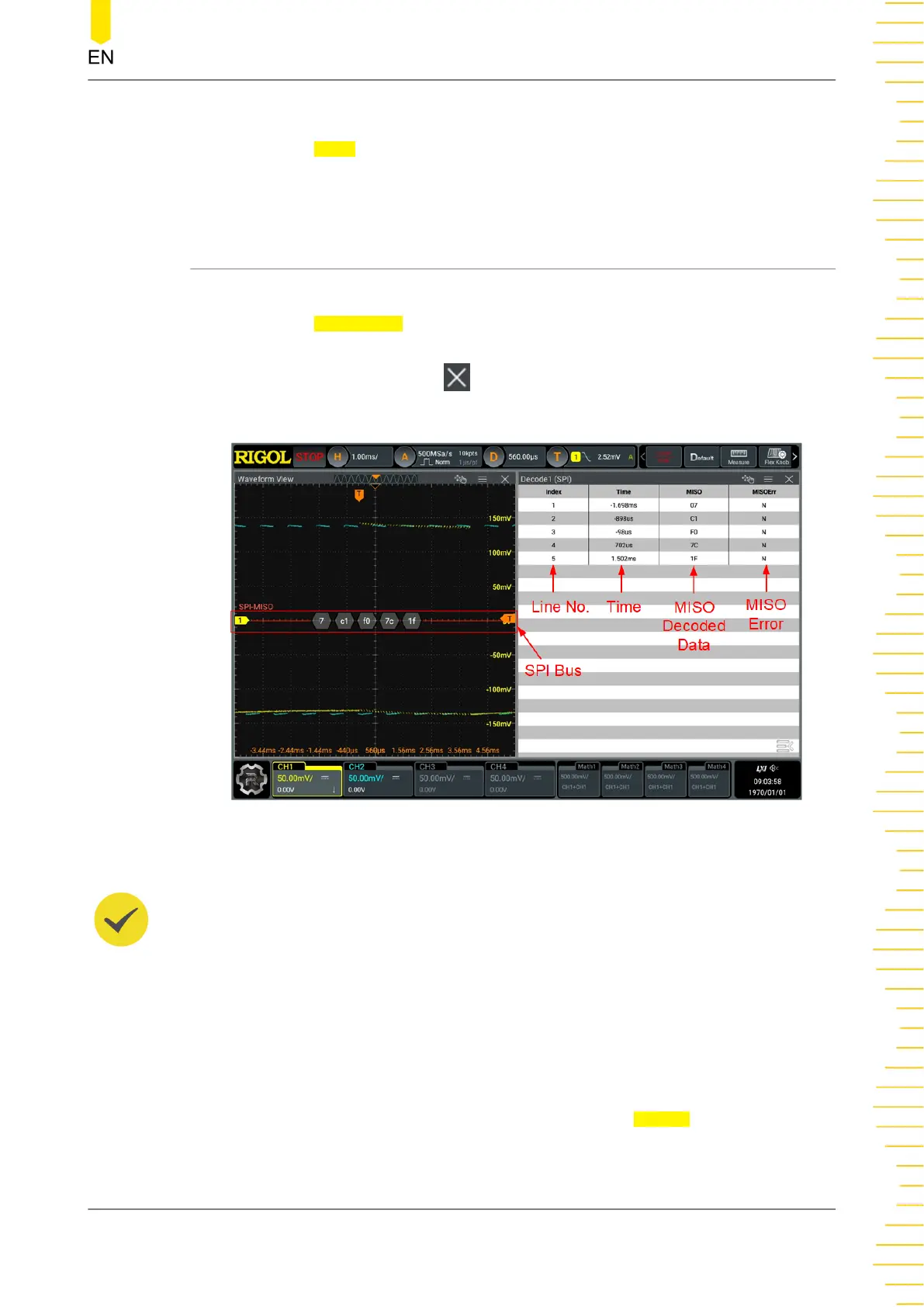

Figure 14.13 SPI Decoding Event Table
TIP
• When you adjust the horizontal time base, the waveform displayed on the screen will also
change, and the total number of lines containing the decoding information in the event
table will also be changed.
• The displayed decoded data information in the bus is related to the value of the
horizontal time base. Reducing the horizontal time base can help you view the detailed
information.
Set the Event Table Format
In the Decode menu, click or tap the drop-down button of
Format to select the
display format of "Data" in the event table. The available options include "Hex",
"Dec", "Bin", or "ASCII".
