20.7 Option List

In the "Utility" menu, click or tap Option list, then all the options that have currently

been installed can be displayed. For detailed procedures of installing the options,

please refer to

Viewing the Option Information and Installation

20.8 Quick Action Settings

In Utilitymenu, click or tap Quick to enter the menu to configure the quick action key

on the front panel.

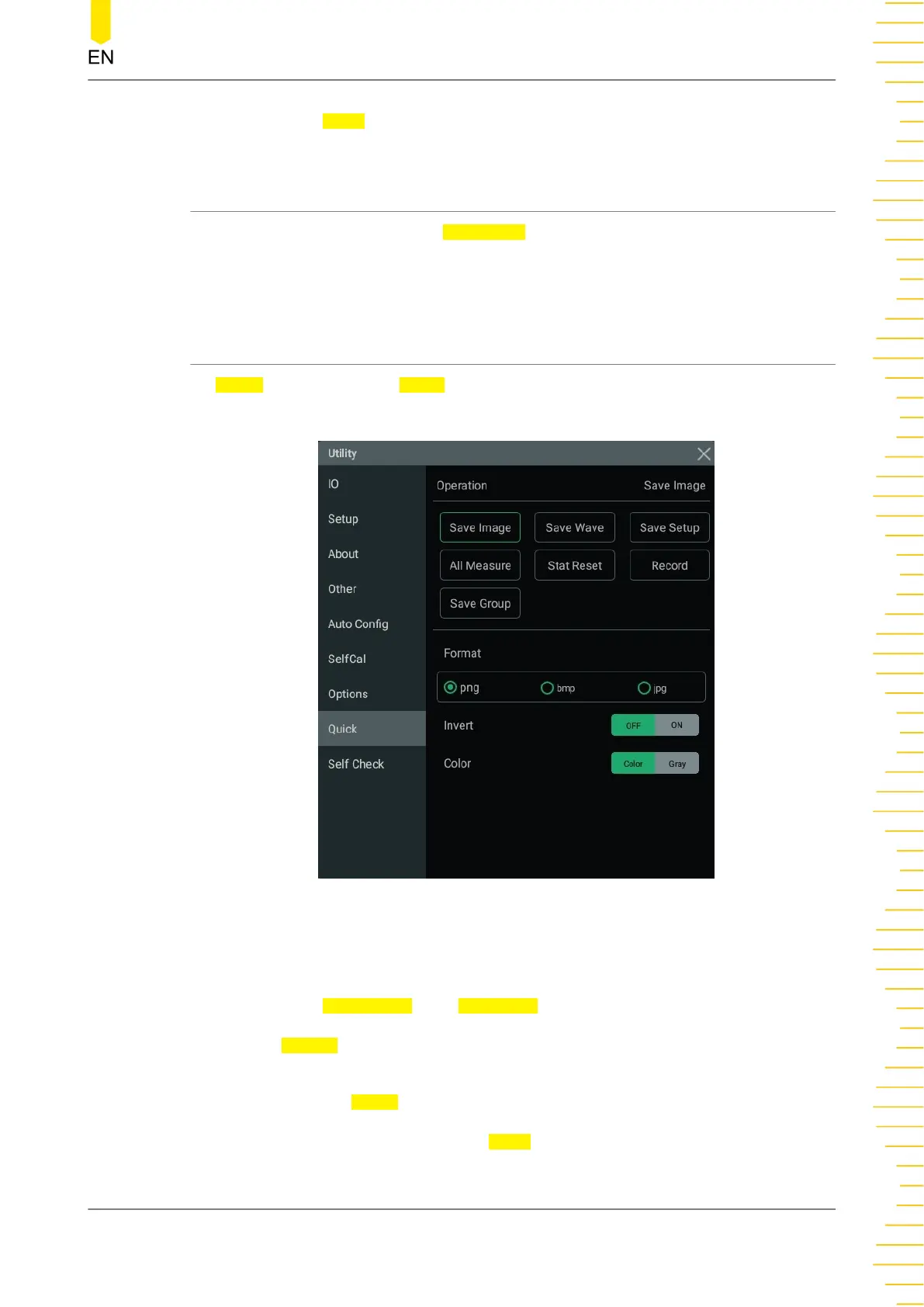

Figure 20.2 Quick Menu

Save Image

• Click or tap Save Image, then Operation is set to "Save Image".

• In the Format menu item, available image types include "*.png", ".*bmp", and

".*jpg".

• Click or tap the

Invert on/off switch to enable or disable the invert function.

• Click or tap "Color" or "Gray" for Color to select the desired image color.

System Utility Function Setting

HDO1000 User Guide

241
