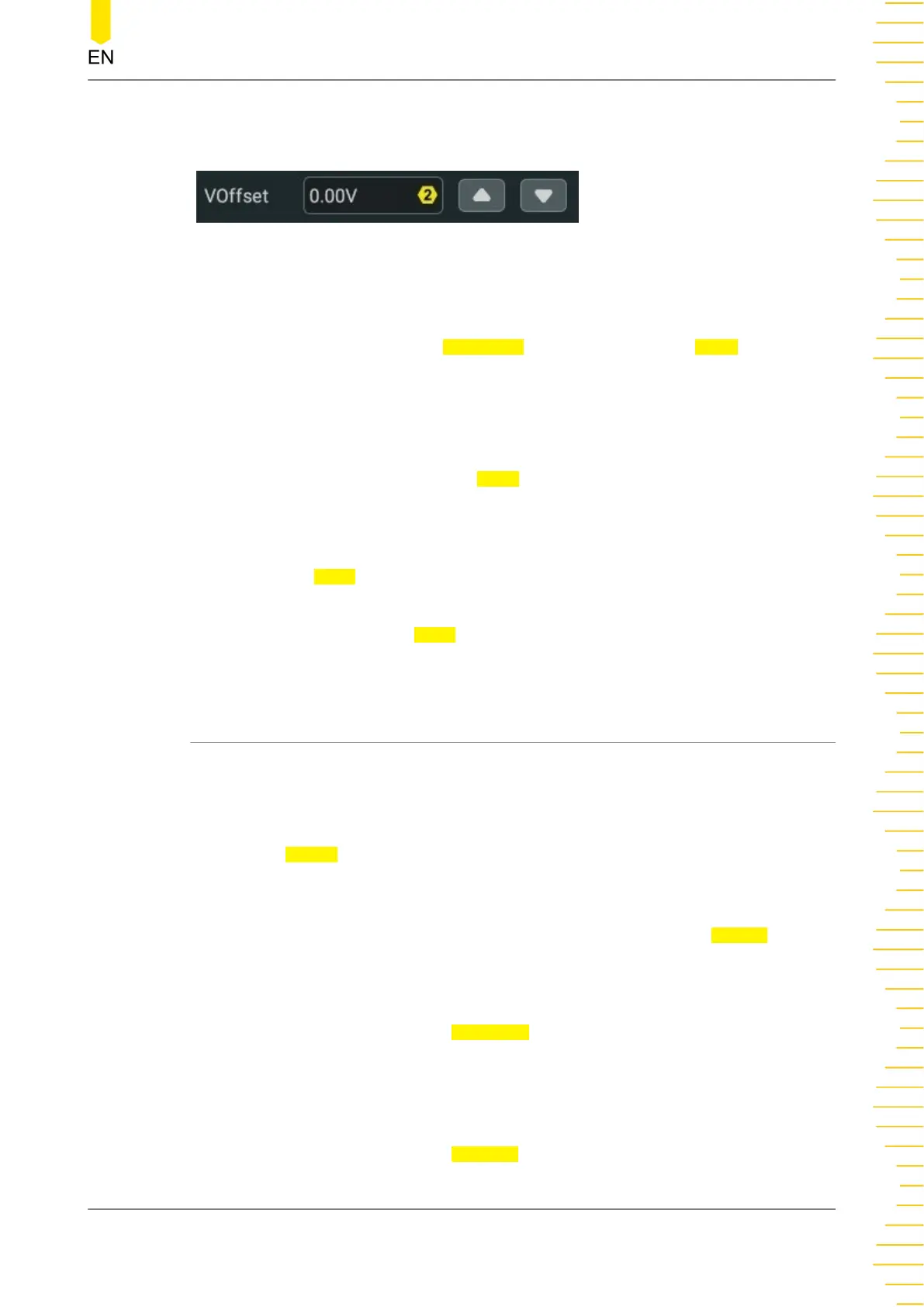

increase or decrease the vertical offset value. You can also use the corresponding
multipurpose knob to adjust the offset.
Restore the Reference Waveform
If you have adjusted the vertical scale and offset for the specified reference waveform
of the current channel, to reset the reference waveform to the position where the
source channel stays prior to the
SaveToRef operation, click or tap Reset.
Set the Reference Waveform Color
This series oscilloscope provides five colors (gray, green, light blue, red, and orange)
to mark the reference waveforms of different channels in order to distinguish them.
Click or tap the drop-down button of Color to select the color of the reference
waveform of the channel.
Set the Reference Waveform Label
Click or tap the
Label on/off switch to enable or disable the label display of the
specified reference waveform.
Click or tap the input field of
Label to set the label of the specified reference channel
with the pop-up numeric keypad.
12.4 Export and Import Operation
To Export to Internal or External Memory
You can save the current reference waveform to the internal memory or external USB
storage device. The file format of the reference waveform is "*.ref", "*.bin", or "*.csv".
Click or tap Export to enter the reference waveform file saving interface.
• Set the Format
In the file saving interface, click or tap the drop-down button of Format to select
"*.ref", "*.bin", or "*.csv" as the saving format.
• Set the Filename
Click or tap the input field of
File Name, then the filename editing interface is
displayed. Input the filename with the pop-up numeric keypad. For the methods
of using the numeric keypad, refer to descriptions in
Parameter Setting Method
.
• Set the Save Path
Click or tap the input field of
File Path, then the disk management interface is
displayed. Through the disk management menu, you can save the current
Reference Waveform
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.
HDO1000 User Guide
165
