Wherein, PhaseA
R
B
R
represents Phase(r-r), DelayA
R
B
R
represents Delay(r-r), and
Period
sourceA
represents period of Source A.
7. Phase(r-f): indicates the phase deviation between the threshold middle values of
the rising edge of Source A and the falling edge of Source B. The phase formula is
as follows:
°360×=
sourceA
FR
FR
Period
BDelayA
BPhaseA
Wherein, PhaseA
R
B
R
represents Phase(r-r), DelayA
R
B
R
represents Delay(r-r), and
Period
sourceA
represents period of Source A.
8. Phase(f-f): indicates the phase deviation between the threshold middle values of
the falling edge of Source A and the rising edge of Source B. The phase formula is
as follows:
°360×=
sourceA
RF
RF
Period
BDelayA
BPhaseA
Wherein, PhaseA
R
B
R
represents Phase(r-r), DelayA
R
B
R
represents Delay(r-r), and
Period
sourceA
represents period of Source A.
TIP
• Source A and Source B can be any channel among CH1~CH4 and Math1~Math4.
• The default threshold middle value is 50%.

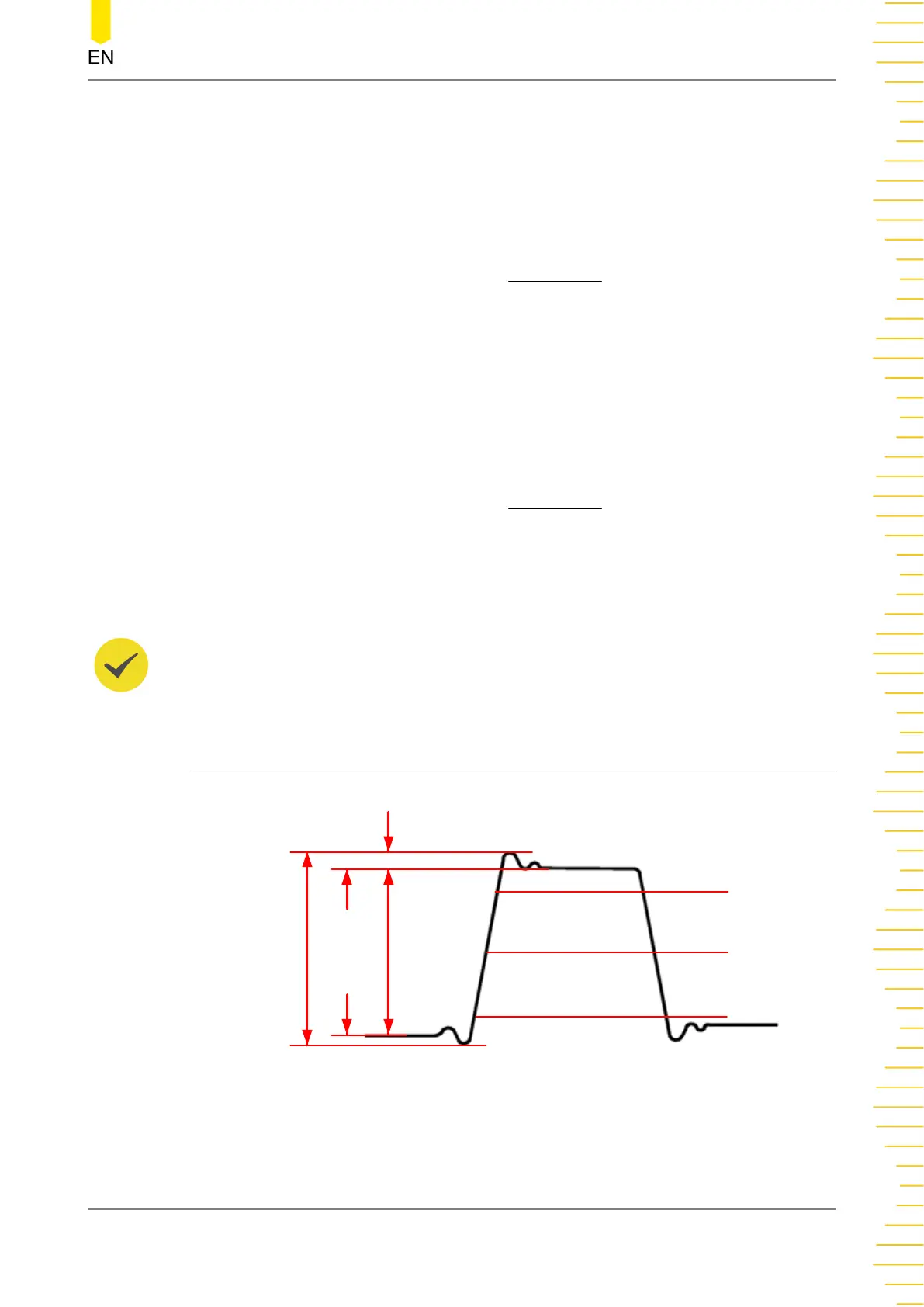

10.1.4 Voltage Parameters
Vpp
Vtop
Vbase
Overshoot
Vmax
Vmin
Vupper
Vmid
Vlower
Figure 10.3 Voltage Parameters
1. Vmax: indicates the voltage value from the highest point of the waveform to the
GND.
Measurements
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.
HDO1000 User Guide
139
