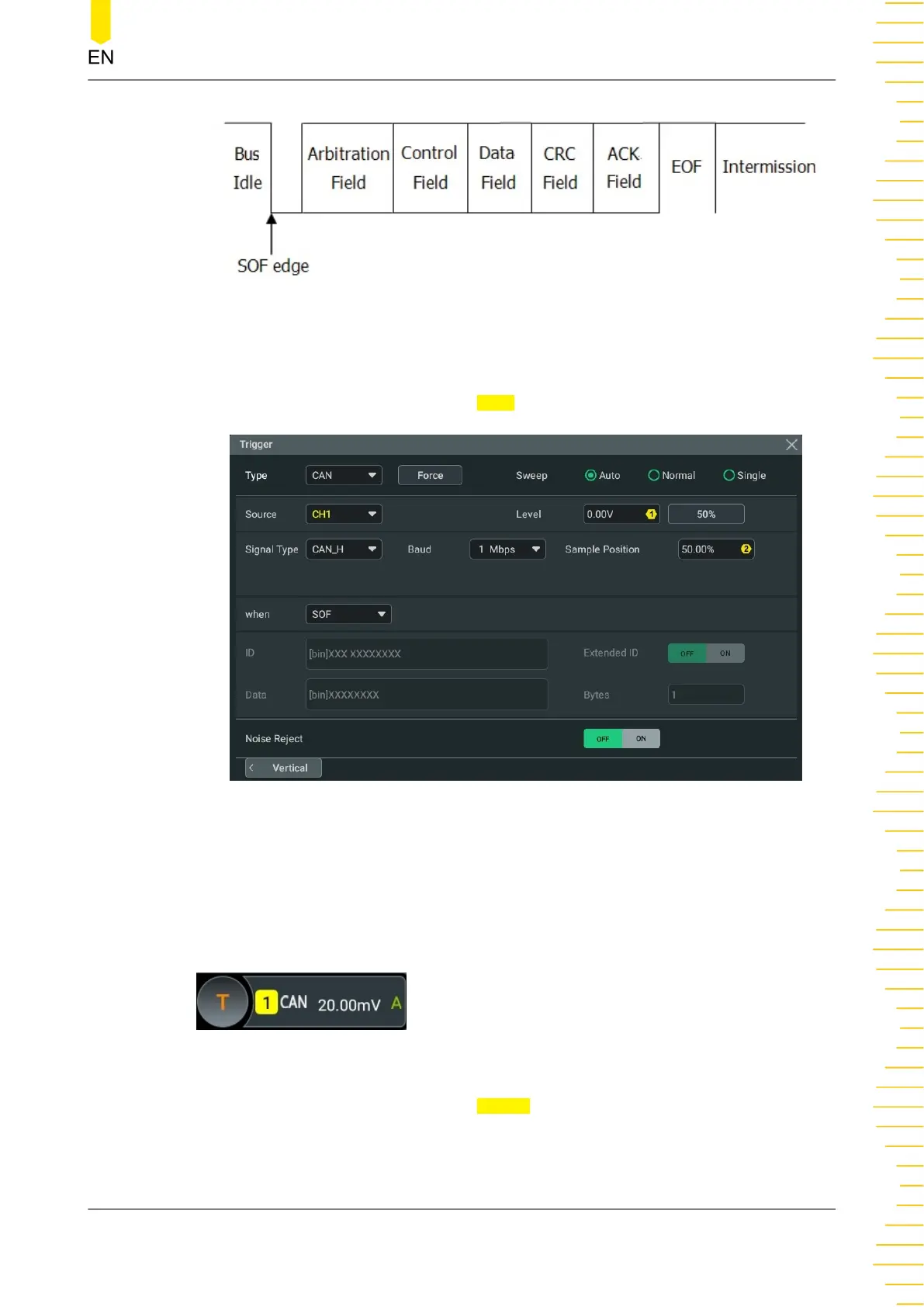

Figure 8.32 Data Frame Format of the CAN Bus

Trigger Type

Click or tap the drop-down button of

Type to select "CAN".

Figure 8.33 CAN Trigger Setting Menu

After a trigger type is selected, the current trigger setting information (including

trigger type, trigger source, and trigger level) is displayed in the trigger information

label at the top of the screen, as shown in the figure below. The information will

change based on the trigger settings.

Source Selection

Click or tap the drop-down button of Source to select CH1-CH4. For details, refer to

descriptions in

Trigger Source

. The current trigger source is displayed in the trigger

information label at the top of the screen.

Triggering the Oscilloscope

HDO1000 User Guide

107
