• Adjacent: Waveform segments are shown in an adjacent way with each segment
shown next to the previous segment. A maximum of 100 frames can be
displayed on the screen at a time in this mode.
• Overlay: All the captured waveform segments are overwritten to display as one
single segment of the waveform. A maximum of 100 frames can be displayed on
the screen at a time in this mode.
• Waterfall: It displays the captured waveform segments in a cascaded display
order. A maximum of 100 frames can be displayed on the screen at a time in this
mode.
• Perspective: The waveform segments are displayed in the ladder-like form, with
each segment being arranged above another with a certain perspective (angle),
moving up like a rising slope. A maximum of 100 frames can be displayed on the
screen at a time in this mode.
• Mosaic: The whole waveform view is divided into several blocks, and each
waveform segment is displayed in each block in sequence. A maximum of 80
frames can be displayed on the screen at a time in this mode.

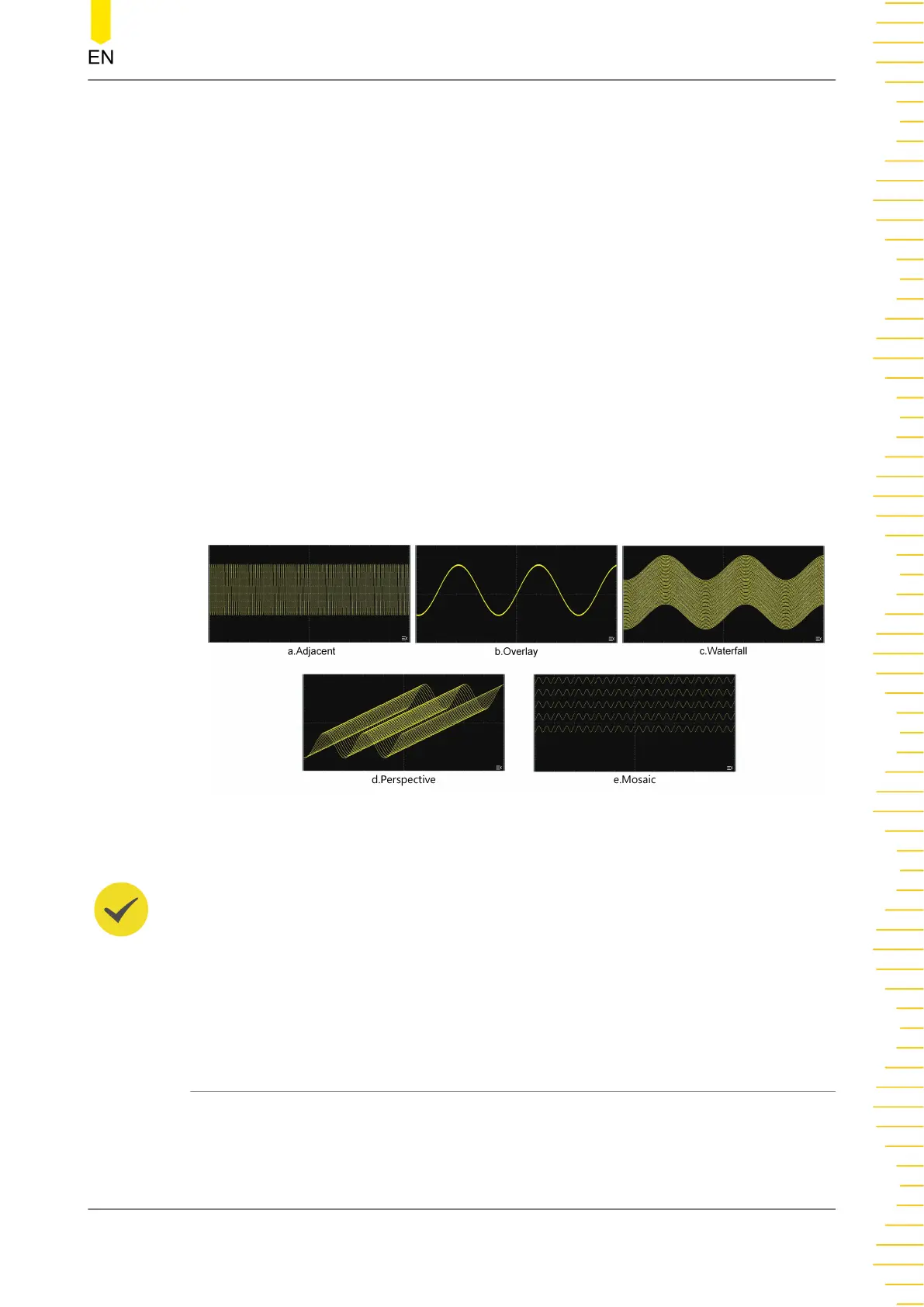

Figure 7.2 Display Modes
TIP
• The UltraAcquire mode is not available when any of the following functions is enabled:
cursors, decoding, Search, Zoom, Pass/Fail test, waveform recording, reference waveform,
XY. To switch to the UltraAcquire mode, please ensure that all of those functions are
disabled.
• In UltraAcquire mode, the functions mentioned above are disabled.
7.2 Sampling Mode
This oscilloscope only supports the real-time sampling mode. In this mode, the
oscilloscope produces the waveform display from samples collected during one
trigger event. The maximum real-time sample rate of this series is 2 GSa/s. The
current sample rate is displayed in the acquisition label at the top of the screen.
Acquisition System
