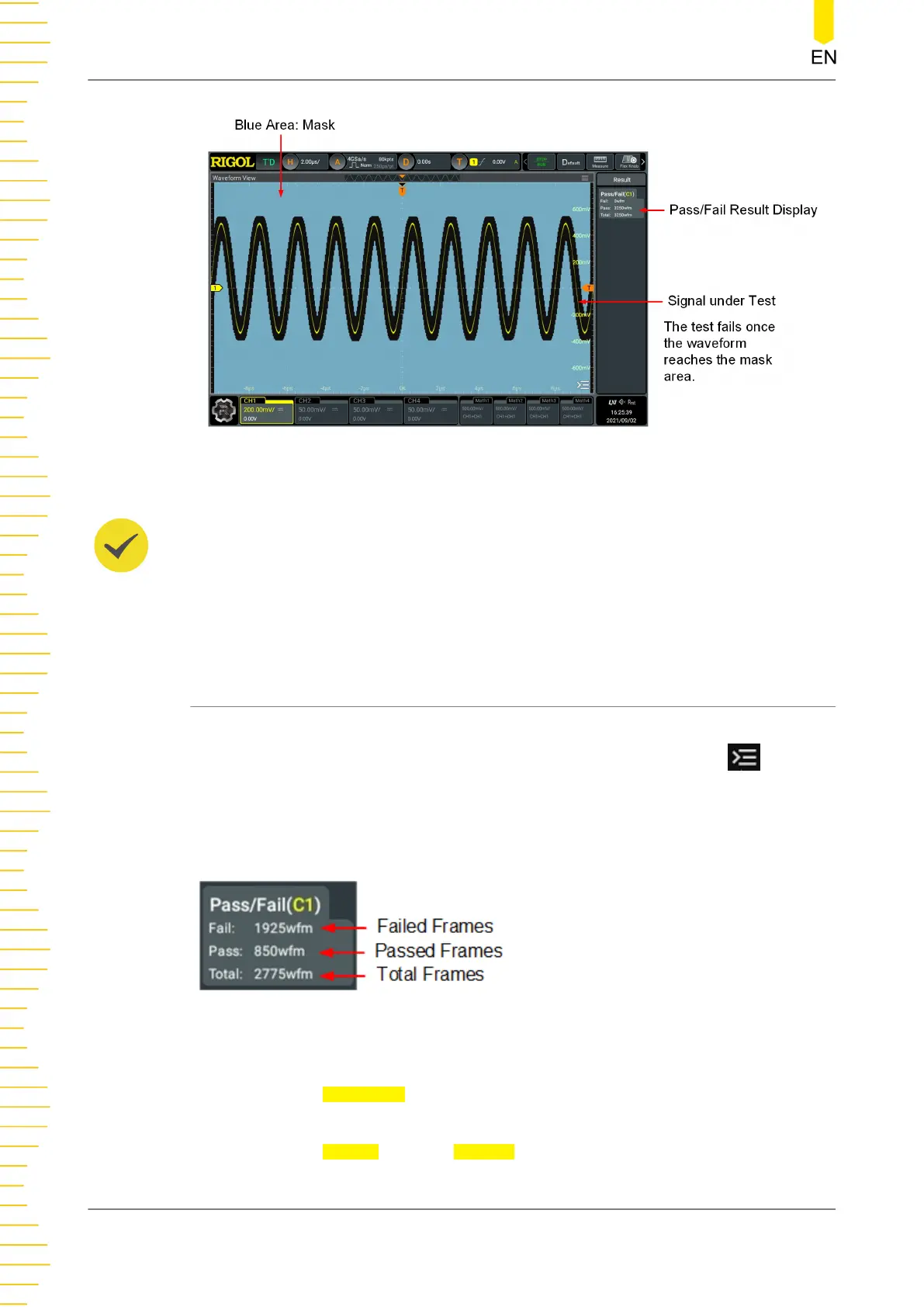

Figure 13.2 Pass/Fail Test Interface
TIP
• Only when the pass/fail test function is enabled, can you start or stop the pass/fail test
operation, save and recall the test mask range.
• After starting the test operation, you can neither modify the source channel nor adjust
the test mask.
13.6 Display the Statistics of the Test Results
After the "Pass/Fail" function is enabled, the test results will be displayed in the
"Result" bar at the right side of the screen. You can click or tap the icon at the
lower-right corner of the screen to hide the "Result" sidebar.
The test results statistics include the number of failed frames, the number of
successful frames, and total number of frames, as shown in the figure below.
Click or tap the "Pass/Fail" label and a window is displayed for you to perform the
following operations.
• Click or tap Reset Stat., then the statistics in the "Pass/Fail" label will be reset to
0.
• Click or tap Setting, then the PassFail setting menu is displayed.
Pass/Fail Test
HDO1000 User Guide
170
