- Cursor A is a vertical solid line ( is displayed at the bottom of the screen),
and Cursor B is a vertical dotted line ( is displayed at the bottom of the
screen).
- In the XY cursor mode, X cursor is used to measure the waveform
amplitude of CH1.
• Y Cursor
Y cursor is a horizontal solid/dotted line that is used to make vertical
adjustments. It can be used to measure amplitude (the unit is the same as that of
the source channel amplitude).
-
Cursor A is a horizontal solid line (
is displayed at the right section of
the screen), and Cursor B is a horizontal dotted line (
is displayed at the
right section of the screen).
- In the XY cursor mode, Y cursor is used to measure the waveform amplitude
of CH2.
You can enable cursor measurements in the following ways.
• Click or tap the function navigation icon
> Cursors to enable cursor
measurements.
• Click or tap the
Cursors button in the toolbar to enable cursor measurements.
• Press the front-panel key to enable cursor measurements.

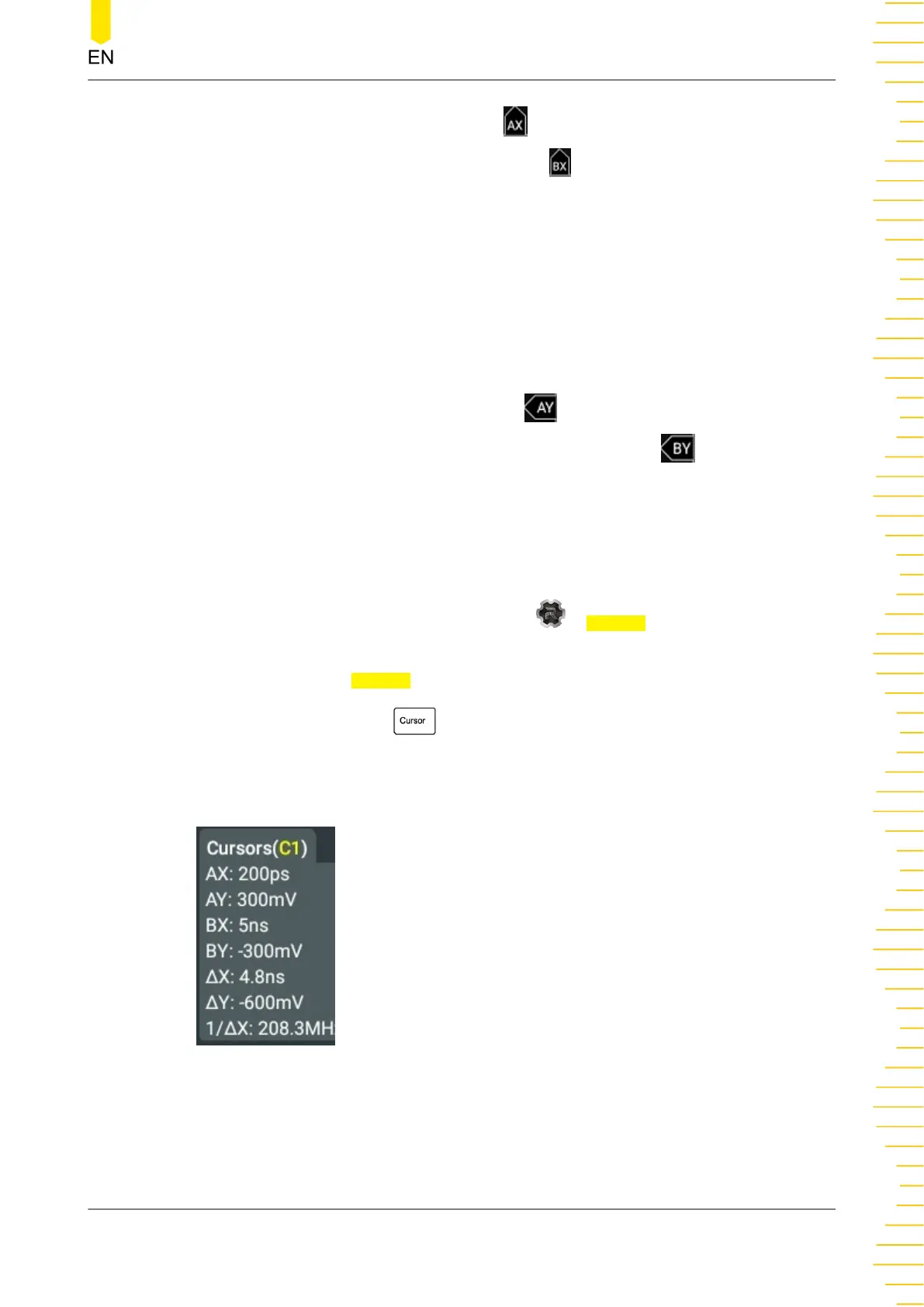

The measurement results will be displayed in the "Result" bar at the right section of
the screen, as shown in the figure below.
• AX: indicates the X value at Cursor A.
• AY: indicates the Y value at Cursor A.
• BX: indicates the X value at Cursor B.
Measurements
