Chapter 6 Installation and Wiring
Figure 68 shows a connection example of a 450L-B safety light curtain with two
universal plug-ins (catalog number 450L-APU-UN-8) to an SI safety relay
(catalog number 440R-S12R2).

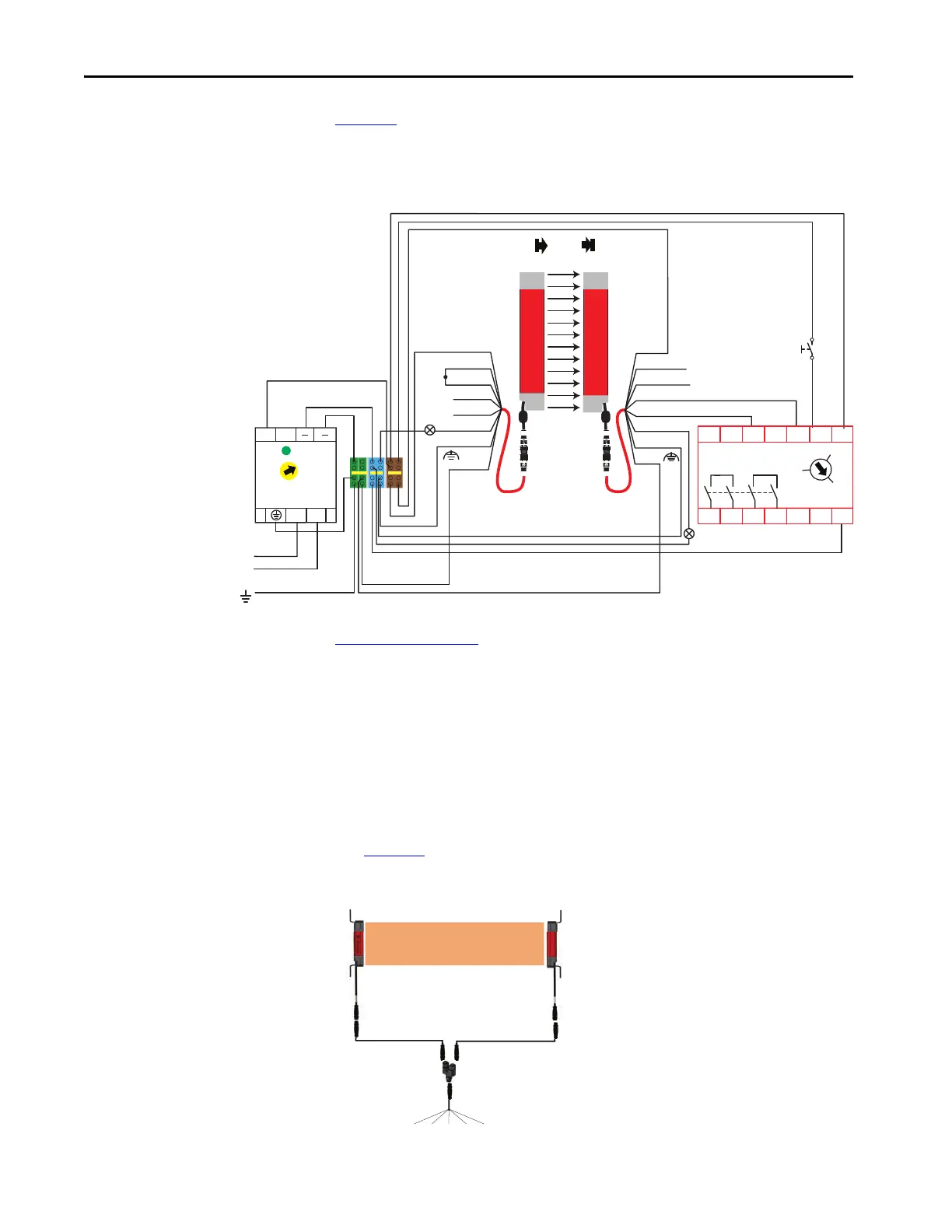

Figure 68 - Connection Example
Figure 69 on page 104 is an example of a muting application that connects the
450L-E light curtain with a 5-pin transmitter plug-in (catalog number
450L-APT-PW-5) and an 8-pin receiver plug-in (catalog number
450L-APR-MU-8) to an SI safety relay (catalog number 440R-S12R12).
T-connector
If a safety light curtain system has an Rx and a Tx plug-in with M12 5-pin
connectors, then a T-connector can also be used to design and connect the system
(see Figure 69
).
Figure 69 - Wiring with T-connector 1485P-RDR5.
Aux
Aux
S2
450L-APT-PW-8
889D-F8NB-5
450L-APR-UN-8
889D-F8NB-5
450L-E4FN1200YD
450L-E4FN1200YD
2 Brown
Tx
Rx
5 Gray OSSD1
1 White
6 Pink OSSD2
4 Yellow EDM
8 Red Reset
3 Green
7 Blue
FE
+24V DC
24V Com (0V)
PE
L
L
++
N
N
1606-XLP95E
24-
28V
DC ok
120…240V AC
2 Brown
5 Gray
NC
NC
1 White
6 Pink
4 Yellow
8 Red
Connect 8 to 4
to make UN a Tx
3 Green
7 Blue
FE
Primary Protective Earth Ground
S11 S12 S21 S22
S34
A1
13 L11
A2
14 23 24 Y32
SI
440R-S12R2
RESET
0
MM
AM
RESET
54321
