Appendix A Specifications

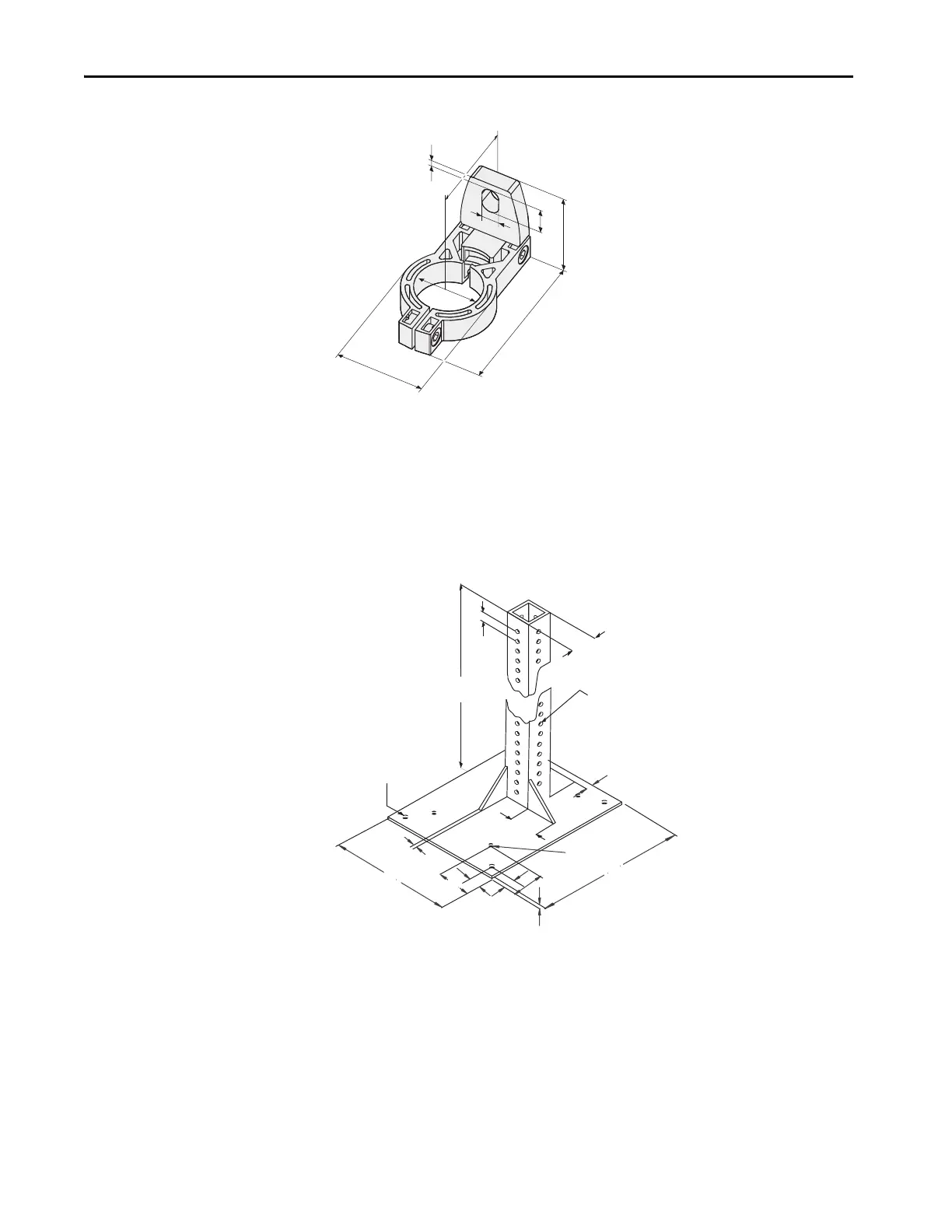

Figure 181 - Swivel Mounting Bracket 442L-AF6106 for Corner Mirrors
Mounting Columns
Two stands are available to mount sticks or mirrors. To mount the 450L safety
light curtain transceiver stick at any height of the catalog number
440L-AMSTD, use side-mounting kit (catalog number 450L-AM-SM).
Figure 182 - Figure 80 - 440L-AMSTD
75 (2.95)
44 (1.73)
13
44.4
3.8 (0.15)
(1.75)
(0.51)
30.6
(1.2)
42
(1.65)
8 (0.31)
1828.8
(72)
63.5 (2.5)
25.4
(1.0)
12.7 (0.5) Dia. 4X
6.35
(0.25)
6.35
(0.25)
76.2
(3.0)
19.05 (0.75)
11.1 (7/16) Dia.
25.4
(1.0)
76.2
(3.0)
63.5
(2.5)
304.8
(12)
M10 x 1.5 mm
Class 6g thru 4 pl
381.0 (15)
Pedestal oor stan
