136 Rockwell Automation Publication 450L-UM001D-EN-P - December 2019
Chapter 9 Connected Components Workbench Software
Hardware

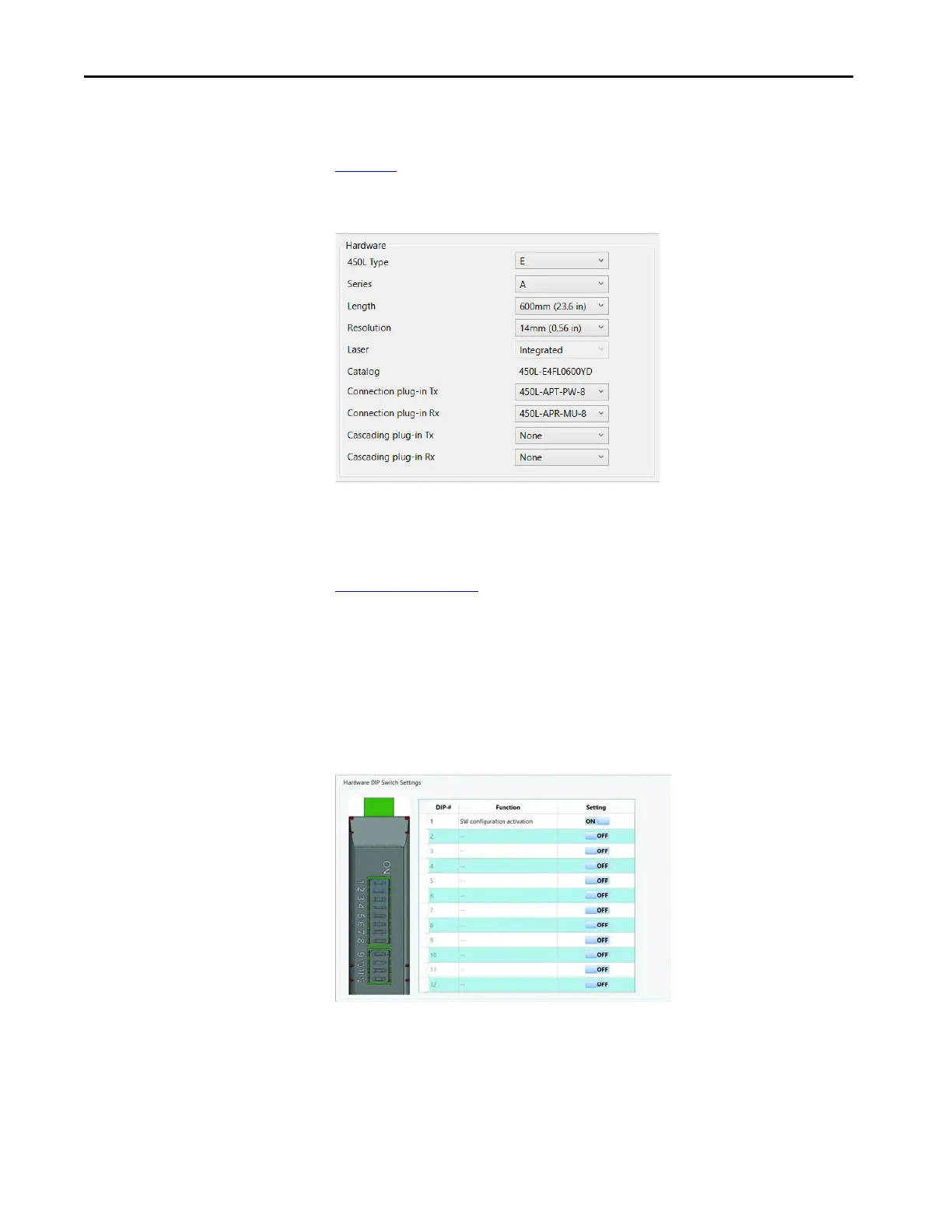

Figure 95 shows the hardware setup. Select the appropriate values to match the
light curtain in use.
Figure 95 - Hardware Setup
DIP Switch
Figure 96 on page 136 shows the hardware DIP switch settings for the
connection plug-in. The graphic is updated to match the actual switch settings
when a connection is made to the device.
To use the Connected Components Workbench software to configure the
Bulletin 450L-E light curtains, switch 1 must be set to ON and all other switches
set to OFF. If switch 1 is OFF, then the Connected Components Workbench
software shows the status of the light curtain.
Figure 96 - Hardware DIP Switch Settings
