196 Rockwell Automation Publication 450L-UM001D-EN-P - December 2019
Appendix A Specifications
Plug-ins

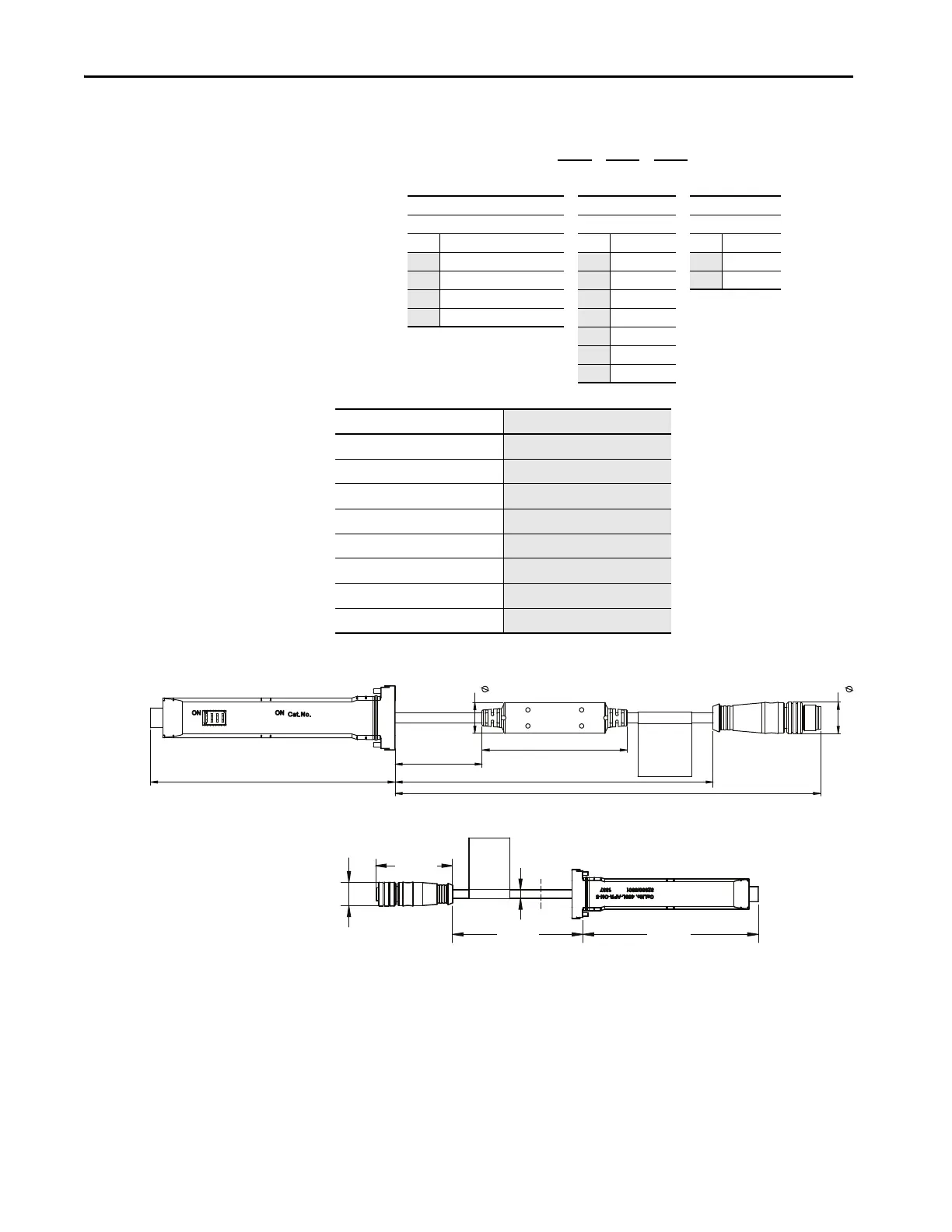

Figure 177 - 450L Connection Plug-in Dimensions [mm (in.)]
Figure 178 - 450L-APC-IO-8 Cascading Plug-in Dimensions [mm (in.)]
450L - APR - ON - 5N
abc
abc
Plug-in Type Function Number of Pins
Code Description Code Description Code Description
APR Accessory plug-in receiver PW Power 55-pin
APT Accessory plug-in transmitter ON On/Off 88-pin
APU Accessory plug-in universal ED EDM
APC Accessory plug-in cascading UN Universal
BK Blanking
MU Muting
IO I/O cascading
Description Cat. No.
450L plug-in Tx 5-pin 450L-APT-PW-5
450L plug-in Tx 8-pin
450L-APT-PW-8
450L plug-in Rx ON/OFF 5-pin 450L-APR-ON-5
450L plug-in Rx EDM 8-pin 450L-APR-ED-8
450L plug-in universal 8-pin
450L-APU-UN-8
450L plug-in blanking 5-pin 450L-APR-BL-5
450L plug-in muting 8-pin 450L-APR-MU-8
450L plug-in cascading 8-pin
450L-APC-IO-8
1 2 3 4
32880/5601 1337
450L-APR-ON-5
114 (4.49)
40.5 (1.59)
1.84
(0.57)
67.5 (2.66)
148 (5.83)
198 (7.79)
1.84
(0.57)
14.5
(0.57) Ø
5.3
(0.21) Ø
107 (4.21)60 (2.36)
46.5 (1.83)
