Appendix A Specifications
Corner Mirror
Specially constructed glass mirrors for two-sided and three-sided safeguard
applications (see Mirrors on page 72
for installation).

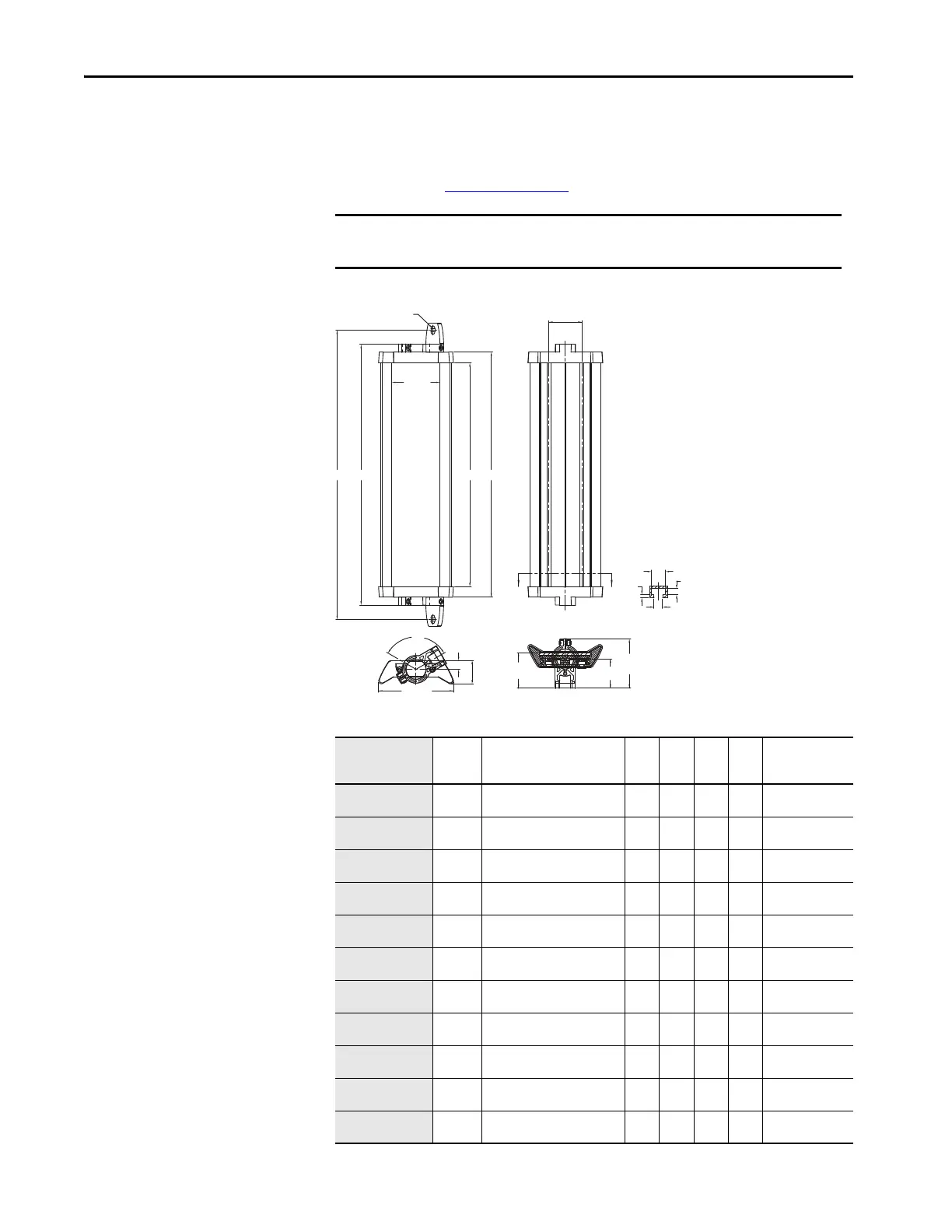

Figure 179 - Dimensions of the Mirror (440L-AM075) (Width 75 mm (2.95 in.))
IMPORTANT Each mirror reduces maximum scan range by 10%. Each corner mirror is
supplied with two end-cap mounting brackets (Cat. No. 442L-AF6106).
Table 78 - Mirror (75 mm (2.95 in.)) Width
Cat. No. Series Description L LS A B
Protective
Height
450L [mm]
440L-AM0750300 A
Mirror, 300 mm (11.81 in.),
4 m (13.12 ft)
396 340 372 440 300
440L-AM0750450 A
Mirror, 450 mm (17.72 in.),
4 m (13.12 ft)
546 490 522 590 450
440L-AM0750600 A
Mirror, 600 mm (23.62 in.),
4 m (13.12 ft)
696 640 672 740 600
440L-AM0750750 A
Mirror, 750 mm (29.53 in.),
4 m (13.12 ft)
846 790 822 890 750
440L-AM0750900 A
Mirror, 900 mm (35.43 in.),
4 m (13.12 ft)
996 940 972 1040 900
440L-AM0751050 A
Mirror, 1050 mm (41.34 in.),
4 m (13.12 ft)
1146 1090 1122 1190 1050
440L-AM0751200 A
Mirror, 1200 mm (47.24 in.),
4 m (13.12 ft)
1296 1240 1272 1340 1200
440L-AM0751350 A
Mirror, 1350 mm (53.15 in.),
4 m (13.12 ft)
1446 1390 1422 1490 1350
440L-AM0751500 A
Mirror, 1500 mm (59.05 in.),
4 m (13.12 ft)
1596 1540 1572 1640 1500
440L-AM0751650 A
Mirror, 1650 mm (64.96 in.),
4 m (13.12 ft)
1746 1690 1722 1790 1650
440L-AM0751800 A
Mirror, 1800 mm (70.86 in.),
4 m(13.12 ft)
1896 1840 1872 1940 1800
8 x 13
50 (1.96)
73 (2.87)
A
Ls
L
B
AA
Section
A-A
+/- 120°
114 (4.48)
13.3
(5.24)
35
(1.37)
54
(2.12)
44.4
(1.74)
75
(2.95)
2.5
(0.09)
6.5
(0.25)
4.5
(0.17)
10.5
(0.41)
