Connected Components Workbench Software Chapter 9
Muting Type and Settings

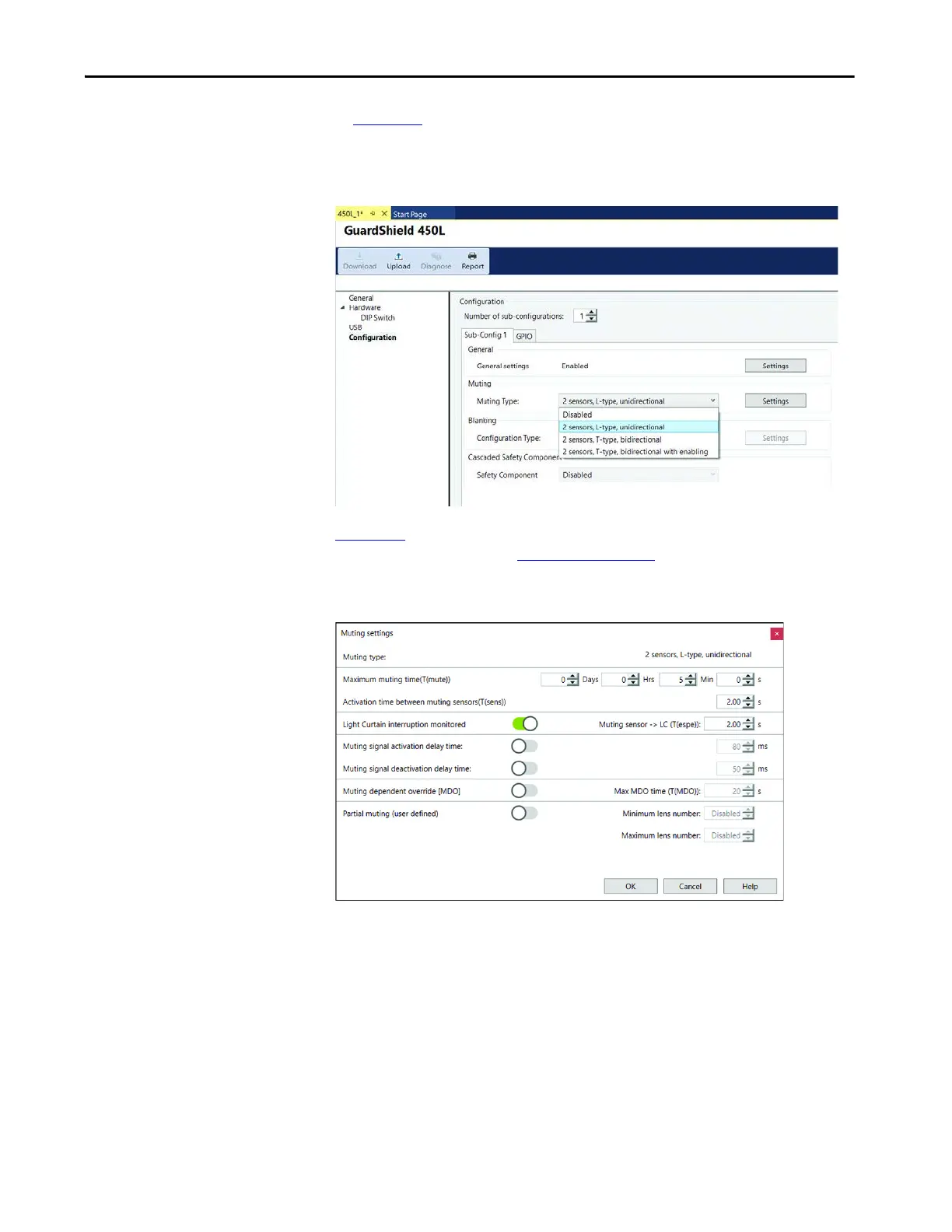

In Figure 108, select the Muting Type. Since the receiver only has the muting
plug-in, the muting types are limited to two sensors. Select the type of muting.
Click Settings to adjust the muting time parameters.
Figure 108 - Select Muting Type
Figure 109 shows the two-sensor muting settings. These settings apply to all three
types of two-sensor muting. Table 58 on page 150
describes the settings. Select
the values appropriate for the application.
Figure 109 - Muting Settings
