Chapter 9 Connected Components Workbench Software
Diagnose Window
Figure 103 shows the Diagnose window layout. The Diagnose window is only
available when the Connected Components Workbench software has a
connection with the light curtain. This layout has three regions:
•Toolbar
•Graphic
•Diagnostic parameters

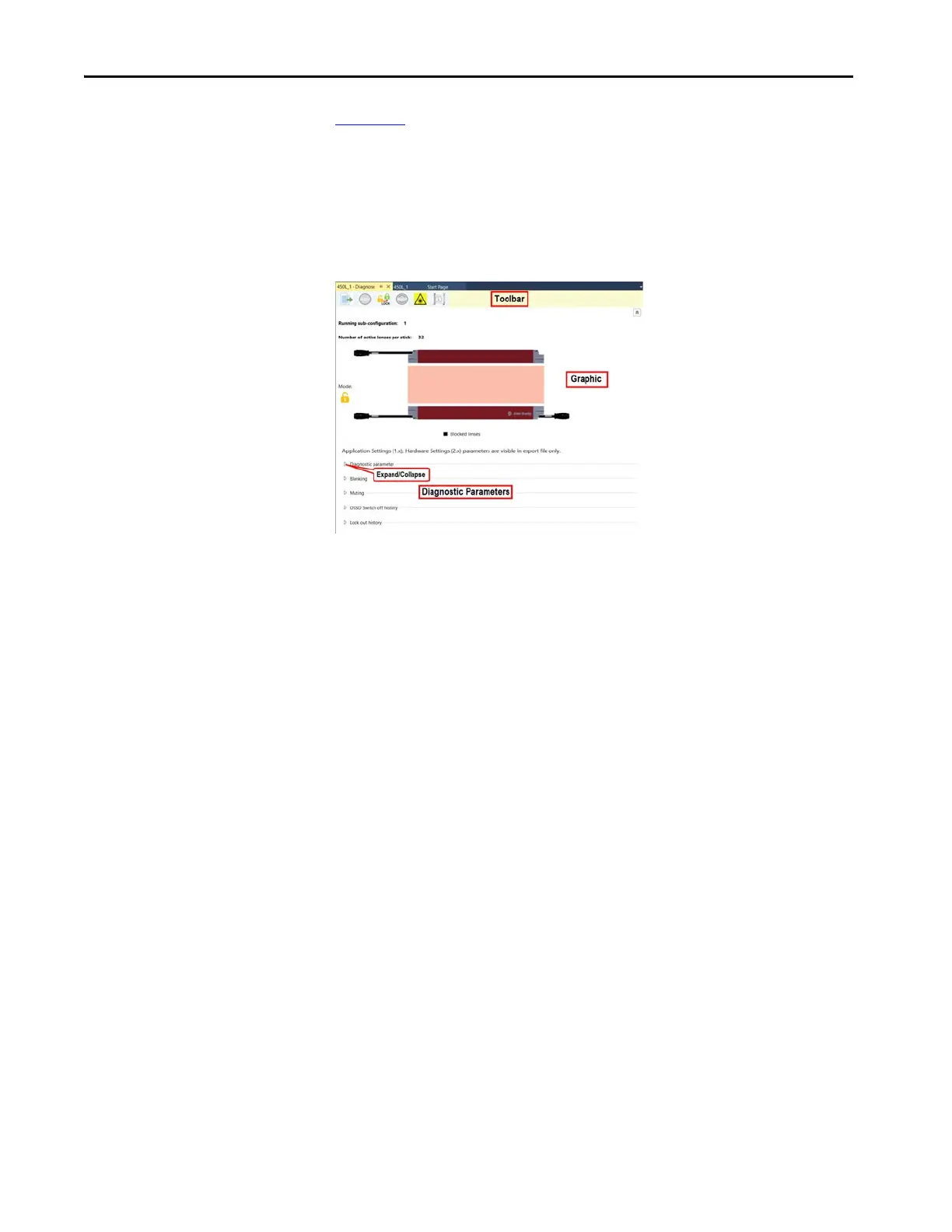

Figure 103 - Diagnose Window Layout
Export
The Export creates a csv file of the complete light curtain hardware setup and all
available diagnostic data.
Before saving to a file, one dialog window, which contains default full name (path
and file name) is provided to you. You can change the saving path or the saving
name. After you press Save, the parameter information is exported to the pointed
folder. The default path and file name are:
• Default path: C:\Users\Current User\Documents\CCW\Project Name
• Default file name: ‘Device Name’ + ‘_’ + ‘YYYYMMDD’
Reset
The Reset clears a light curtain that has been locked out. After you resolve the
lock out condition and press Reset, the light curtain powers off and then powers
on. The stick disconnects from the Connected Components Workbench
software because of this power off/on cycle.
