Figure 102 shows the settings that can be made for each of the I/O types. The
Connected Components Workbench software automatically determines the
allowable selections.
• Many inputs can be assigned High/Low logic and have filter times that are
adjusted from 0…255 ms.
• Muting, Cascading OSSD and (Cascading) E-stop inputs have the logic
that is fixed at Low Active and cannot be changed.
• Cascading OSSD input filter times range from 3…255 ms.
• E-stop input filter times range from 4…255 ms.
• The outputs only have logic options.
The Combined Status output allows and/or logic to be applied to two selectable
status outputs.

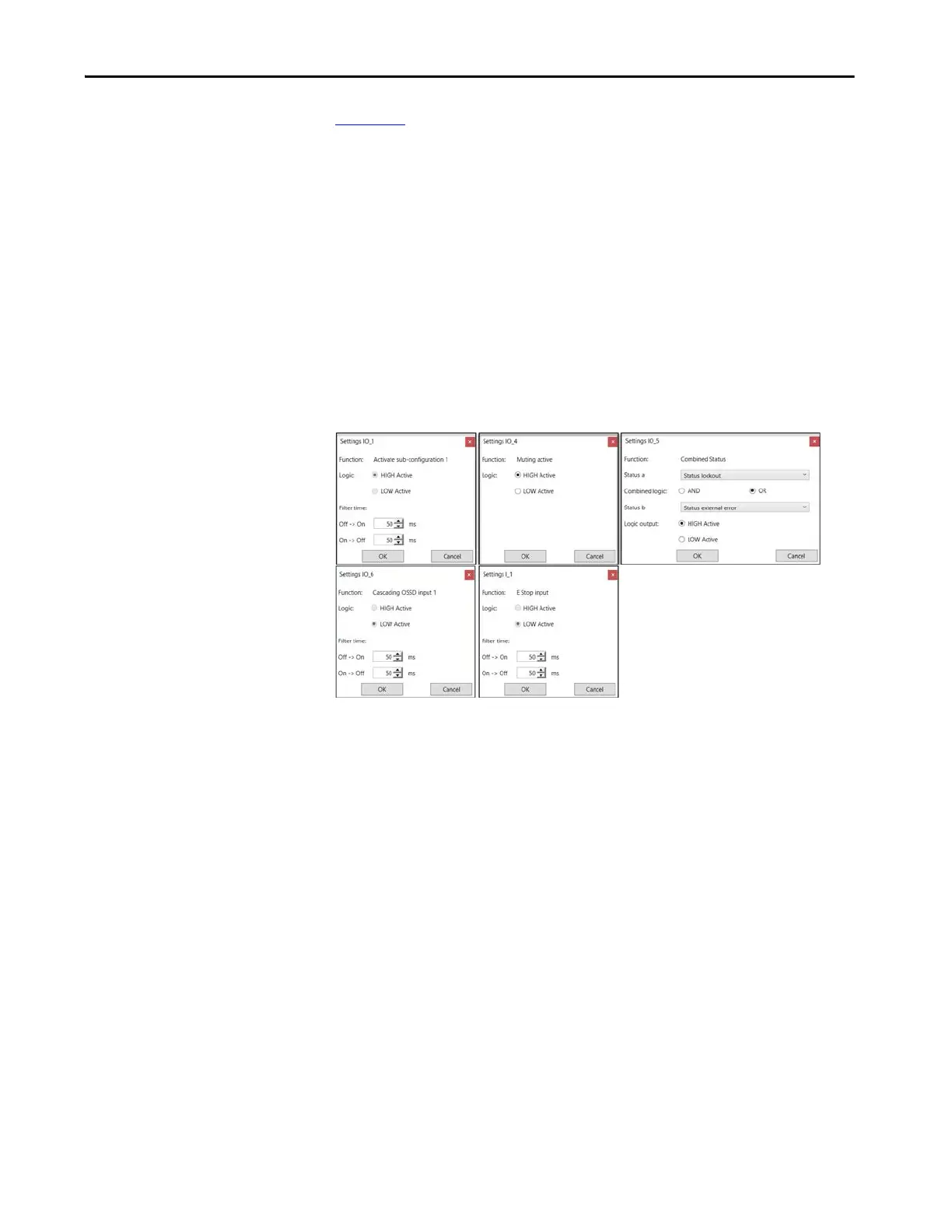

Figure 102 - GPIO Selection Settings
