Rockwell Automation Publication 450L-UM001D-EN-P - December 2019 137
Connected Components Workbench Software Chapter 9
USB Status

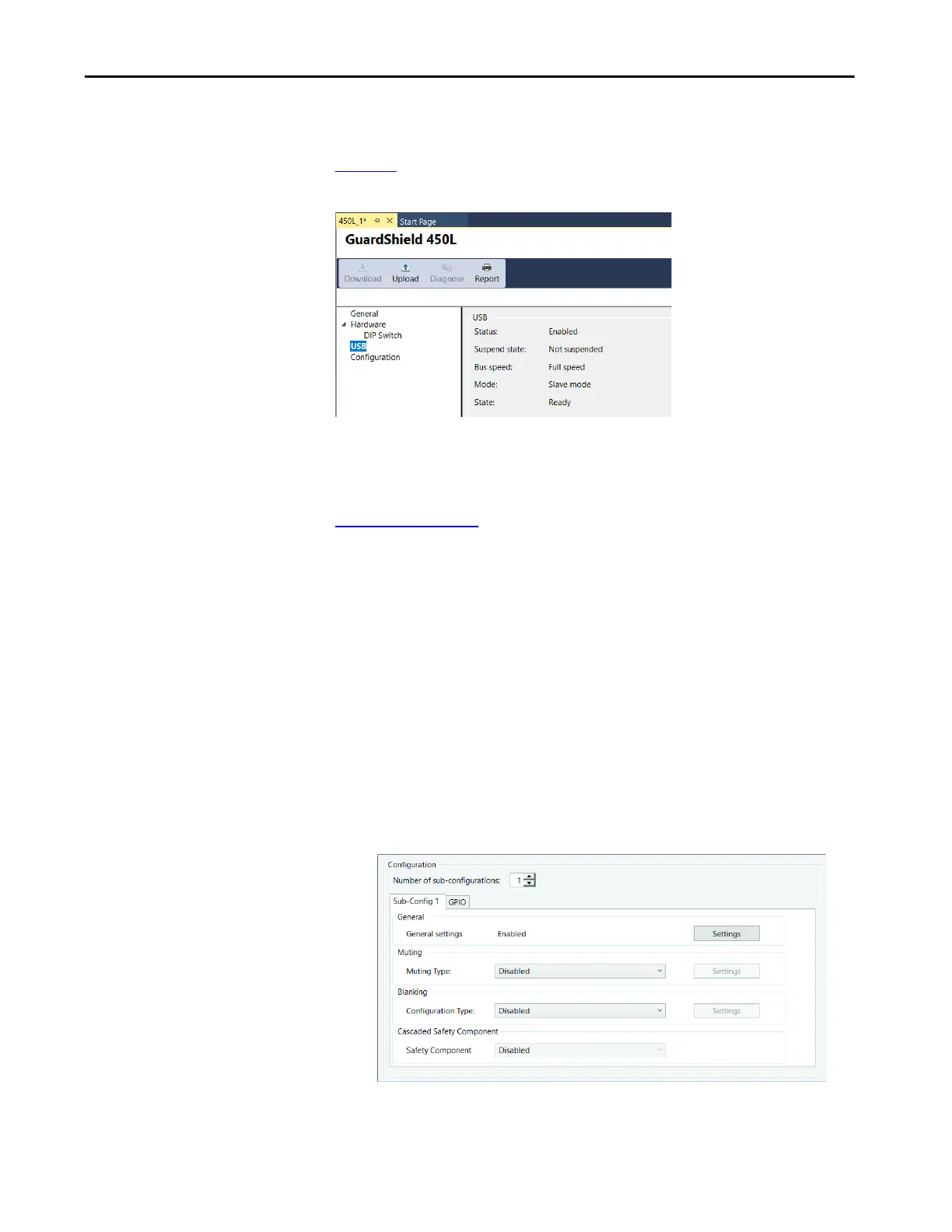

Figure 97 shows the status of the USB connection. The status is read-only.
Figure 97 - USB Status
Sub-configurations
Figure 98 on page 137 shows the subconfiguration setup. The subconfiguration
setup is only available when the OID is connected to a receiver; the transmitter
does not require a configuration.
Key elements of subconfigurations include:
• With DIP switch 1 set to ON, up to four subconfigurations can be created.
• The General, Muting, and Blanking settings can be adjusted for each
sub-configuration.
• If a cascading plug-in is installed, the Cascaded Safety Component is
automatically refreshed when a configuration is uploaded from the light
curtain.
• The four configurations use the same GPIO.
• If DIP switch 1 is set back to 0, the configuration via the Connected
Components Workbench software is erased.
Figure 98 - Sub-Configuration Setup
