Chapter 6 Installation and Wiring
Transmitter Plug-in
Figure 61 shows the plug-ins that can be make a transceiver a transmitter.
Tabl e 32
…Ta ble 3 4 show the pin-out connections for each plug-in.

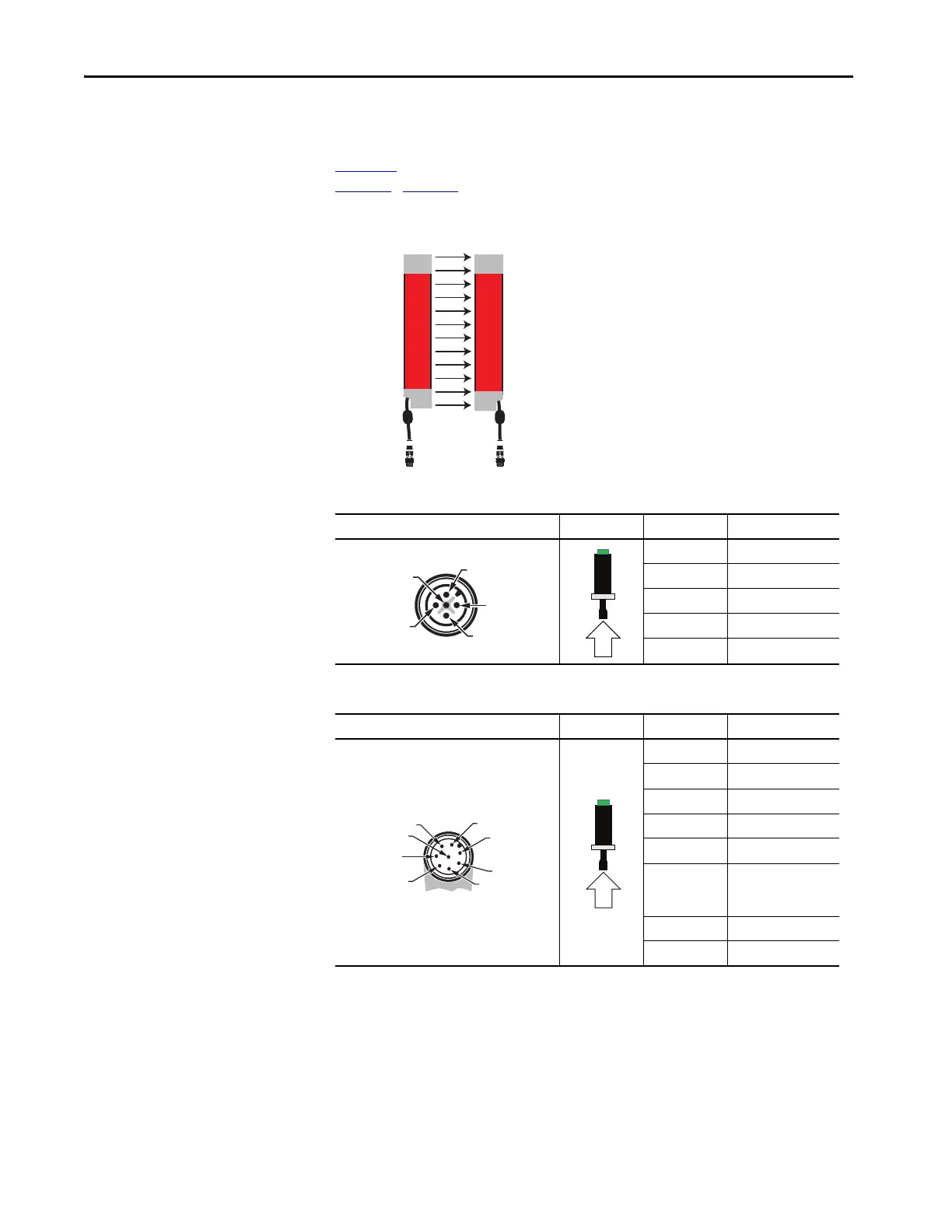

Figure 61 - Transmitter Plug-ins
Table 32 - Pin Assignment — Cat. No. 450L-APT-PW-5
Table 33 - Pin Assignment — Cat. No. 450L-APT-PW-8
Face View of Male M12 5-pin View Pin Number Signal Transmitter
1 24V DC
2 No connection
30V (ground)
4 No connection
5 Functional earth FE
Face View of Male M12 8-pin View Pin Number Signal Transmitter
1Do not connect
2+24V DC
3 Functional earth FE
4Do not connect
5Do not connect
6
Auxiliary output
(lockout stick)
(ON=24V DC)
7 0V (GND)
8Do not connect
Plug-ins:
450L-APT-PW-5
450L-APT-PW-8
450L-APU-UN-8
ReceiverTransmitter
5
4
3
1
2
5
6
7
8
4
3
1
2
