Chapter 6 Installation and Wiring
Shock Mounting Kit
Special shock mount brackets are offered for applications that exhibit shock and
vibration (Figure 57 on page 86
). For vertical installations, the vibration damper
(445L-AF6142) can be used in combination with the standard
L-shaped top/bottom mounting bracket and side mounting.

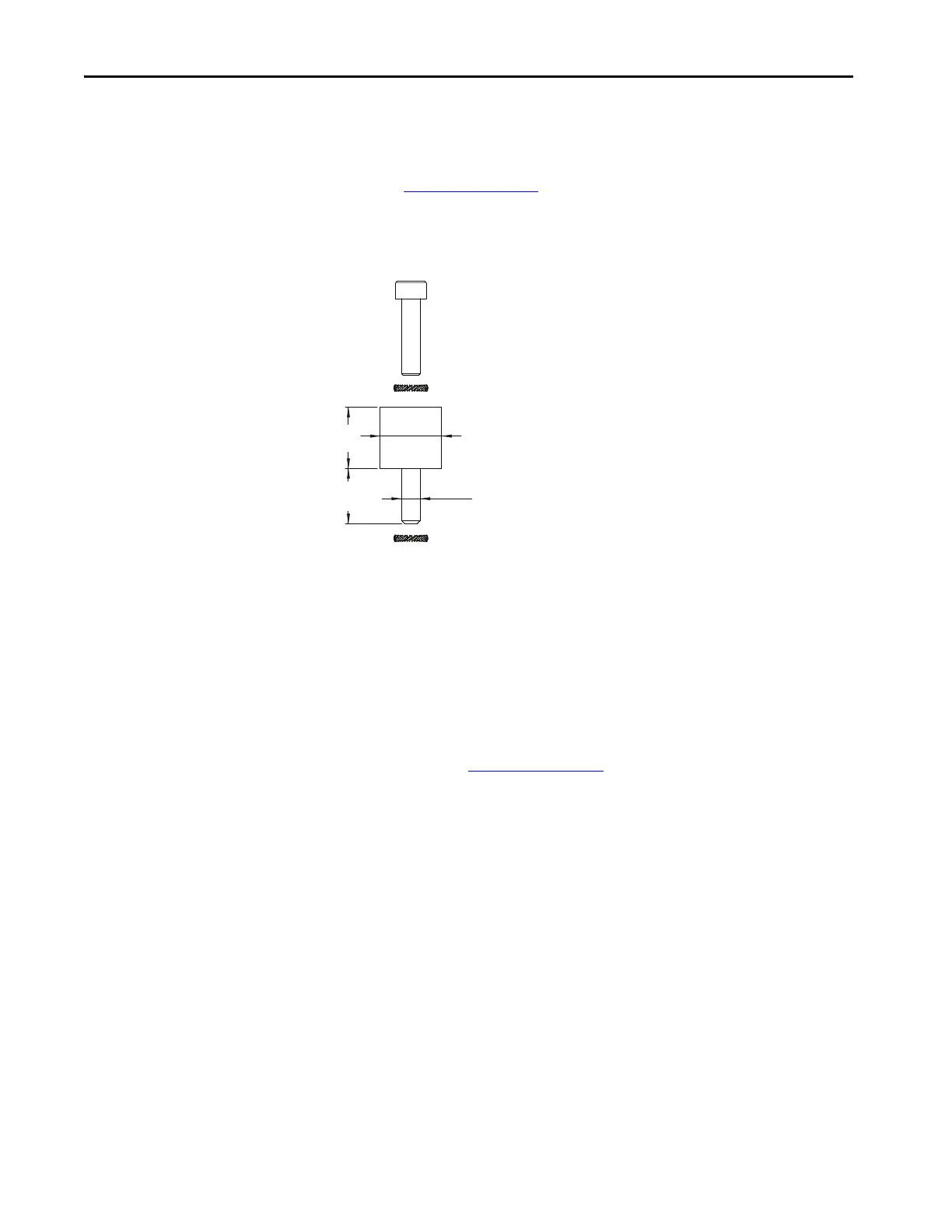

Figure 57 - Shock Mount Brackets 445L-AF6142
Replacement Mounting Kit
The Replacement Mounting Kit provides an easier mechanical conversion from
installed safety light curtains to GuardShield safety light curtains if previous
mounting holes have to be used. The GuardShield safety light curtain transceiver
stick can be directly mounted to the replacement kit bracket. The replacement kit
bracket can also be used in combination with the default mounting kit (catalog
number 450L-AM-TBM) or the optional side-mount kit (catalog number
450L-AM-SM). See Figure 59 on page 87
.
M6
20
(0.79) dia.
18
(0.71)
20
(0.79)
M 6x25 Socket Head Cap Screw, Fully Threaded
M 6x6.1/14 Lock Washer
Vibration Damper
M 6x6.1/14 Lock Washer
