Rockwell Automation Publication 450L-UM001D-EN-P - December 2019 179
Connected Components Workbench Software Chapter 9

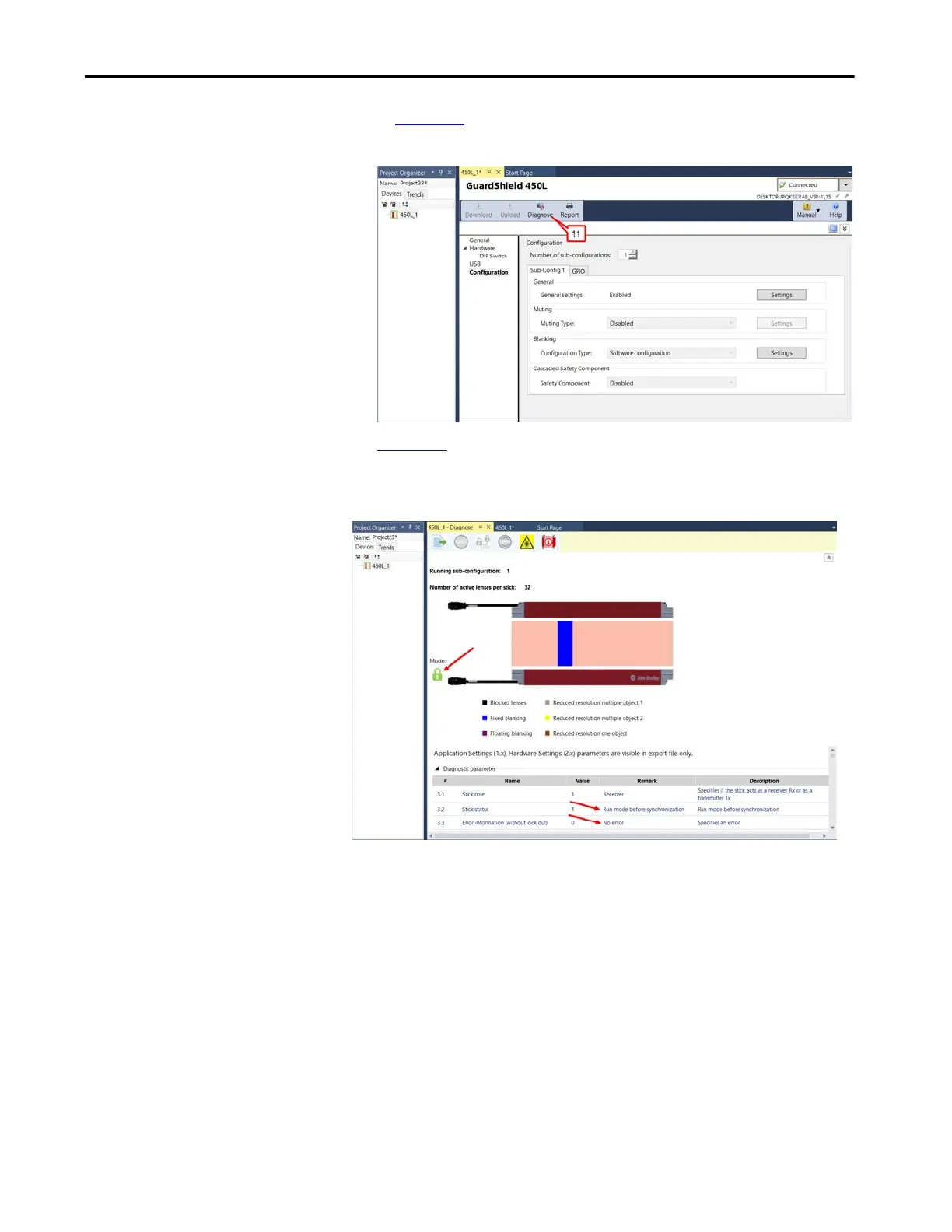

11. In Figure 151, click Diagnose.
Figure 151 - Go to Diagnose Window
Figure 152 shows the diagnostic window and the light curtain is locked in
run mode with no errors.
Figure 152 - Run Mode
Change Hardware
The Connected Components Workbench software must know the actual
hardware setup before downloading a new configuration. If the hardware is
changed, for instance you add a cascading plug-in or change from a muting to a
blanking plug-in, then the following steps synchronize the hardware with the
Connected Components Workbench software.
After changing the hardware, apply power to the light curtain.
To Next Page
